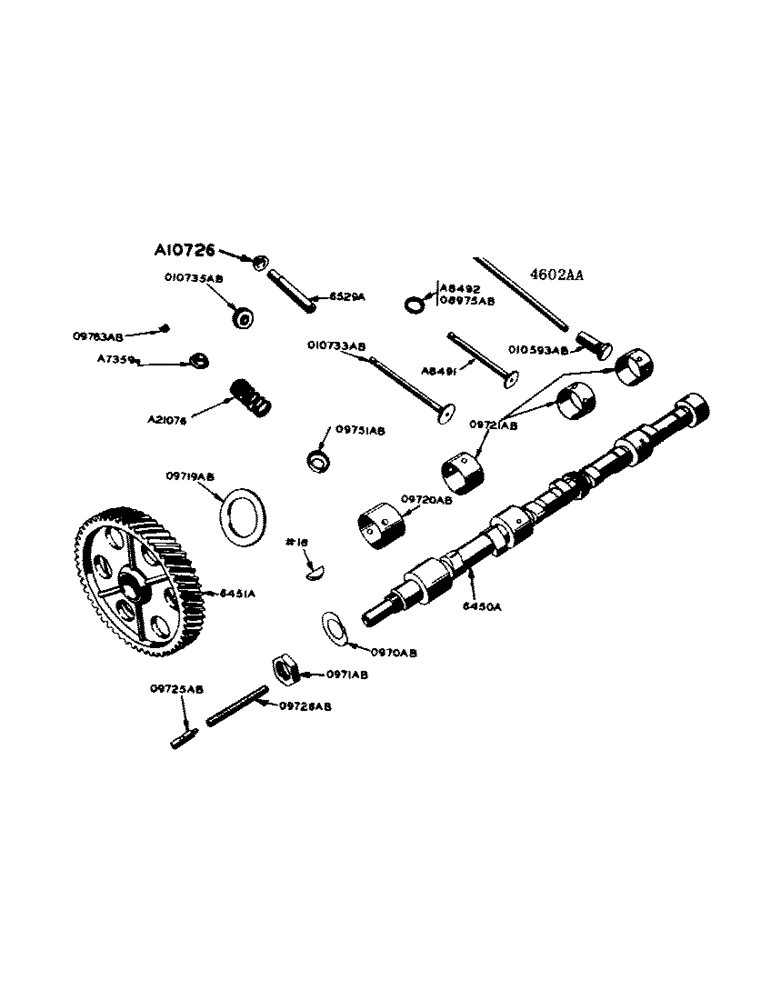

Запчасти Case IH 800 (141) - VALVES FOR GASOLINE ENGINE (10) - ENGINE

A7359

RETAINER - inlet valve spring

4шт.

A8491

VALVE - exhaust

4шт.

A10726

SEAL

SHIELD - rubber oil, intake valve stem

4шт.

A21076

SPRING

- inlet and exhaust valve

8шт.

6529A

GUIDE - inlet and exhaust valve

8шт.

08975AB

INSERT - exhaust valve seat (for 4968AA gasoline cylinder head)

4шт.

09751AB

SEAT - inlet and exhaust valve spring

8шт.

09763AB

LOCK - valve spring retainer (2 required per valve)

16шт.

010733AB

VALVE - inlet

4шт.

010735AB

ROTOCAP - exhaust valve

4шт.

A7359

RETAINER - inlet valve spring, for L.P. fuel engine

4шт.

A8491

VALVE - exhaust, for L.P. fuel engine

4шт.

A8492

INSERT - exhaust valve seat (for A8493 LP cylinder head), for L.P. fuel engine

4шт.

A21076

SPRING

- inlet and exhaust valve, for L.P. fuel engine

8шт.

6529A

GUIDE - inlet and exhaust valve, for L.P. fuel engine

8шт.

09751AB

SEAT - inlet and exhaust valve spring, for L.P. fuel engine

8шт.

09763AB

LOCK - valve spring retainer (2 required per valve), for L.P. fuel engine

16шт.

010733AB

VALVE - inlet, for L.P. fuel engine

4шт.

010735AB

ROTOCAP - exhaust valve, for L.P. fuel engine

4шт.

A20865

TAPPET

LIFTER - push rod, use w/A21060 & A21105 (see 010593AB), and camshaft

8шт.

A21060

ROD

- push (round end), use w/A21105 & A20865 (see 4602AA), and camshaft

8шт.

6450A

CAMSHAFT, and push rods

1шт.

Per note in the 400 series tractor hard copy catalog was scrapped out of system in april 1984

1шт.

6451A

X

GEAR - camshaft, and push rods

1шт.

No. 18 Woodruff key, push rods and camshaft

1шт.

4602AA

ROD

- push (taper end) - see A21060, and camshaft

8шт.

0970AB

LOCKWASHER - camshaft nut, and push rods

1шт.

0971AB

NUT - camshaft (1-1/8" N.C. hex), and push rods

1шт.

09719AB

WASHER - camshaft thrust, and push rods

1шт.

09720AB

BUSHING - camshaft, front, and push rods

1шт.

09721AB

BUSHING - camshaft, second, third and rear, and push rods

3шт.

09725AB

PLUNGER - camshaft thrust, and push rods

1шт.

09726AB

SPRING - camshaft thrust plunger, and push rods

1шт.

010593AB

LIFTER - push rod (use with taper end push rod (see A20865), and camshaft

8шт.
