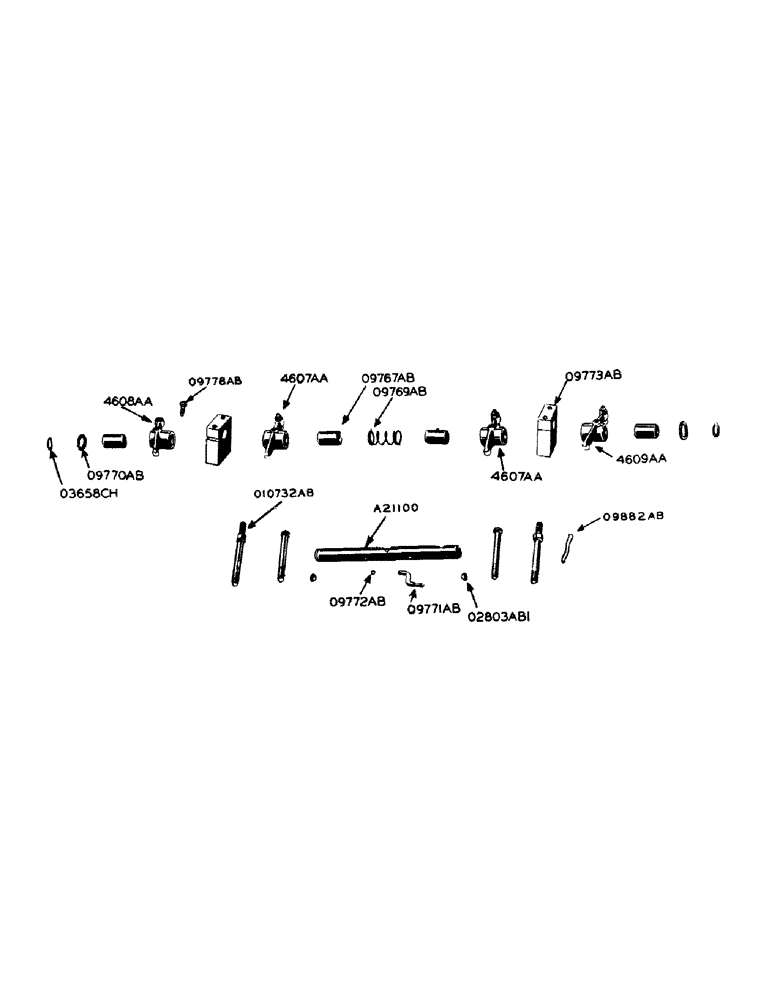

Запчасти Case IH 800 (140) - ROCKER ARMS (10) - ENGINE

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - push rod adjusting (for round end push rod)

8шт.

A21100

SHAFT

- valve rocker arm, with plugs

2шт.

4607AA

X

ARM - inlet valve rocker, with 09767AB bushing

4шт.

4608AA

ARM - exhaust valve rocker, with 09767AB bushing (for no. 1 and no. 3 cylinders)

2шт.

4609AA

ARM - exhaust valve rocker, with 09767AB bushing (for no. 2 and no. 4 cylinders)

2шт.

02803AB1

PLUG - valve rocker arm shaft

4шт.

09767AB

BUSHING - inlet and exhaust rocker arms

8шт.

09769AB

SPRING - valve rocker arm shaft

2шт.

09770AB

WASHER - valve rocker arm shaft

12шт.

09771AB

TUBE - oil, valve rocker arm shaft

2шт.

09772AB

"O" RING - rocker arm shaft oil tube

2шт.

09773AB

BRACKET - valve rocker arm shaft

4шт.

7/16" x 3-3/4" N.C. hex. bolt w/lockwasher

4шт.

09778AB

SCREW - valve push rod adjusting for taper end push rod (see A21105)

8шт.

3/8" N.F. hex. jam nut

8шт.

09882AB

WICK - exhaust valve rocker arm

4шт.

010732AB

STUD - valve rocker arm shaft bracket

4шт.

7/16" N.F. hex. nut and lockwasher

4шт.

03658CH

SNAP RING - valve rocker arm shaft

4шт.
