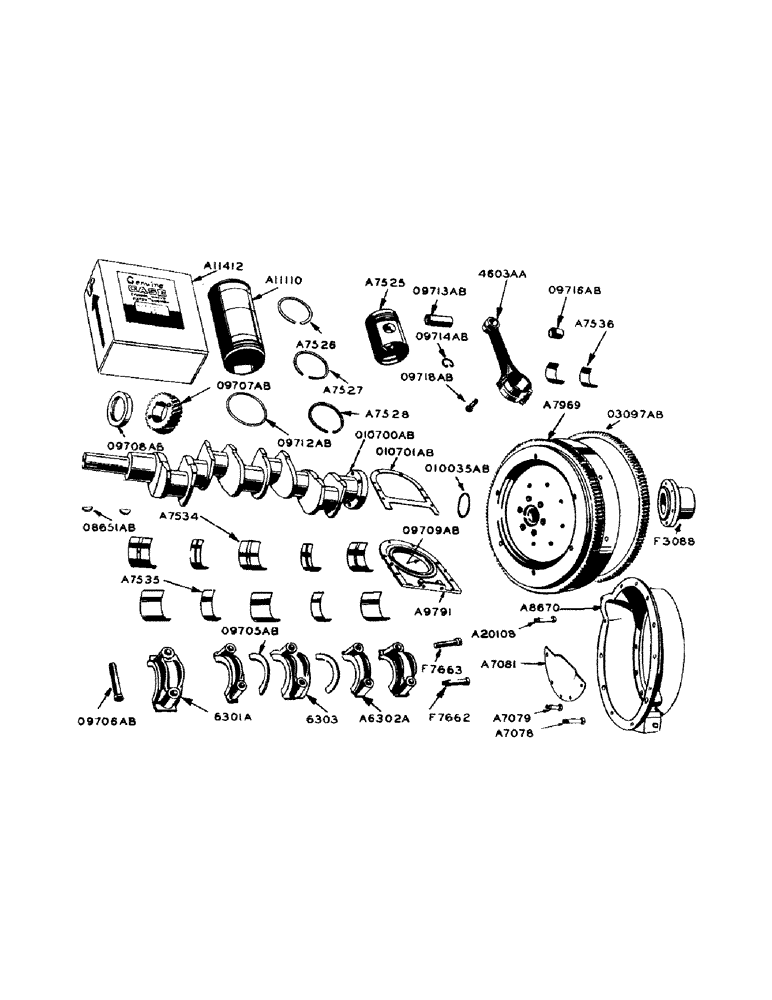

Запчасти Case IH 800 (138) - PISTONS AND CONNECTING RODS (10) - ENGINE

A7207

SLEEVE CYLINDER

LINERS - connecting rod bearing, top and bottom half (.002" undersize)

4шт.

A7209

X

LINERS - connecting rod bearing, top and bottom half (.010" undersize)

4шт.

A7211

X

LINERS - connecting rod bearing, top and bottom half (.020" undersize)

4шт.

A7213

SLEEVE CYLINDER

LINERS - connecting rod bearing, top and bottom half (.030" undersize)

4шт.

A7525

PISTON

4шт.

A7526

OIL SEAL

RING - piston, top (see note)

4шт.

A7527

OIL SEAL

RING - piston, second and third (see note)

8шт.

A7536

X

LINERS - connecting rod bearing, top and bottom half (standard size)

4шт.

A8095

KIT

RINGS - piston, set of (16) perfect circle 2-in-1 chrome

1шт.

A8656

RING

- piston, oil (see note)

4шт.

A11110

X

SLEEVE - cylinder

4шт.

A11412

SET OF (2) CYLINDER SLEEVES, pistons, rings and piston pins

2шт.

4603AA

X

ROD - connecting, with cap, bushing and cap screws

4шт.

09712AB

"O" RING - cylinder sleeve

8шт.

09713AB

PIN - piston

4шт.

09714AB

RING - piston pin retainer

8шт.

09716AB

BUSHING - piston pin

4шт.

09718AB

CAP SCREW - connecting rod

8шт.

A7134

FLYWHEEL - (use A7969)

1шт.

A7204

WASHER

- crankshaft thrust (.006" oversize) (see 09705AB)

2шт.

A7216

SLEEVE CYLINDER

LINER - crankshaft bearing (wide-upper and lower) (.002" undersize)

3шт.

A7219

X

LINERS - crankshaft bearing (narrow-upper and lower) (.002" undersize)

2шт.

A7222

X

LINERS - crankshaft bearing (wide-upper and lower) (.010" undersize)

3шт.

A7225

LINERS - crankshaft bearing (narrow-upper and lower) (.010" undersize)

2шт.

A7228

LINERS - crankshaft bearing (wide-upper and lower) (.020" undersize)

3шт.

A7231

LINERS - crankshaft bearing (narrow-upper and lower) (.020" undersize)

2шт.

A7234

LINERS - crankshaft bearing (wide-upper and lower) (.030" undersize)

3шт.

A7237

LINERS - crankshaft bearing (narrow-upper and lower) (.030" undersize)

2шт.

A7534

X

LINERS - crankshaft bearing (wide-upper and lower) (standard size)

3шт.

A7535

LINERS - crankshaft bearing (narrow-upper and lower) (standard size)

2шт.

A7969

FLYWHEEL - with ring gear

1шт.

A9791

RETAINER

- crankshaft rear oil seal, with dowel pins

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

6шт.

F3088

HUB - engine output shaft

1шт.

F7662

SCREW - dowel, flywheel

2шт.

F7663

BOLT - flywheel

4шт.

6301A

CAP - crankshaft bearing, wide

2шт.

A6302A

X

CAP AND CRANKSHAFT BEARING, narrow

2шт.

6303A

CAP - crankshaft thrust bearing

1шт.

03097AB

RING GEAR - flywheel (139 teeth)

1шт.

08651AB

KEY - Woodruff, for crankshaft

2шт.

09705AB

WASHER - crankshaft thrust (standard size) (see A7204)

2шт.

09706AB

SCREW - crankshaft bearing cap

10шт.

09707AB

GEAR - crankshaft

1шт.

09708AB

OIL SEAL - crankshaft, front

1шт.

09709AB

OIL SEAL - crankshaft, rear

1шт.

010035AB

"O" RING - flywheel

1шт.

010700AB

CRANKSHAFT

1шт.

010701AB

GASKET - crankshaft rear oil seal retainer

1шт.

A20152

GASKET

S - valve grind

1шт.

GASKET KIT - valve grind, includes the following: (2) gasket - intake manifold A7363, (4) ring - rubber, for cylinder head gasket A7669, (2) gasket - cylinder head A9235, (1) gasket - carburetor to manifold 0889AB1, (1) gasket - carburetor to air cleaner elbow 01116AB1, (2) "o" ring - cylinder head oil passage 08569AB, (2) "o" ring - rocker arm shaft tube 09772AB, (4) gasket - water manifold 09804AB1, (4) gasket - exhaust manifold 09815AB, (2) gasket - cylinder head cover 09959AB, (1) gasket - thermostat h

1шт.

A7078

STEP BOLT

- dowel, cylinder block to flywheel housing, long

1шт.

1/2" N.F. hex. nut and lockwasher, flywheel housing

1шт.

A7079

TUBE

BOLT - dowel, cylinder block to flywheel housing, short

1шт.

1/2" N.F. hex. nut and lockwasher, flywheel housing

1шт.

A7081

BEARING

SHIELD - dust, flywheel housing

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher, flywheel housing

4шт.

A8670

HOUSING - flywheel

1шт.

3/8" x 3/4" N.C. hex. bolt, flywheel housing

4шт.

1/2" x 1-1/2" N.C. hex. bolt w/lockwasher, flywheel housing

3шт.

1/2" x 1-3/4" N.F. hex. bolt w/hex. nut, flywheel housing

3шт.

1/4" sq. hd. pipe plug, flywheel housing

1шт.

A20108

BOLT - cylinder block to flywheel housing

2шт.

3/4" N.C. hex. nut and lockwasher, flywheel housing

2шт.
