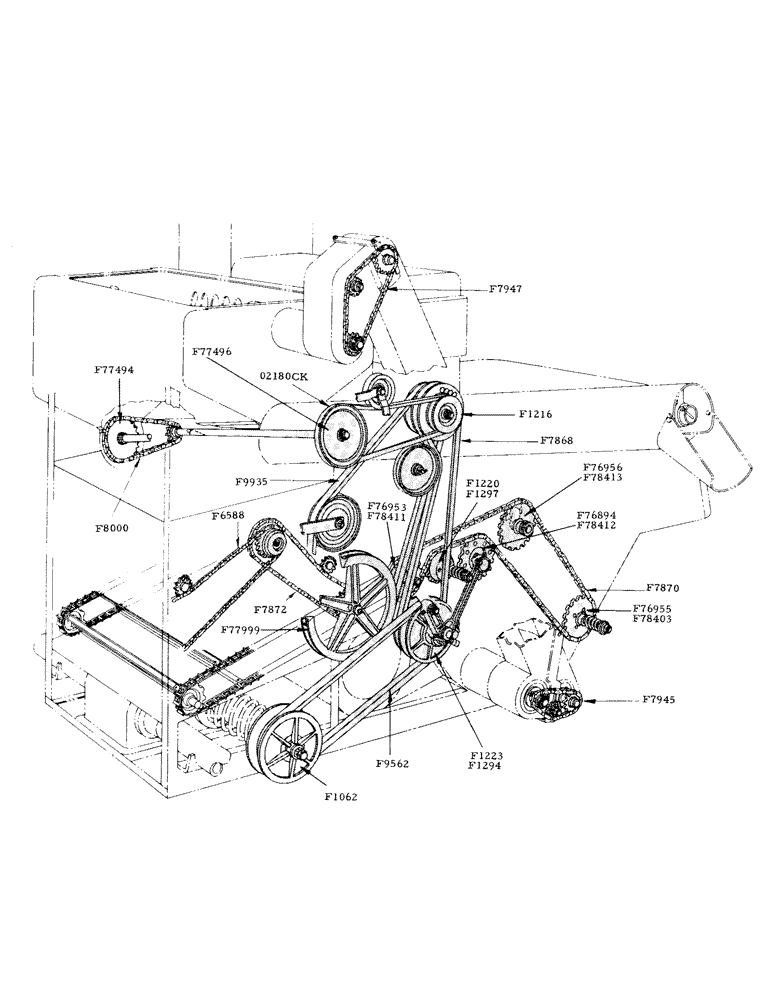

Запчасти Case IH 800 (006) - DRIVE CHAINS (05) - SERVICE & MAINTENANCE

F6588

X

CHAIN - drives upper feeder rake shaft (use 2-B12478 chain, 1-B12479 chain, 1-B12480 chain, 1-B12481 chain and 1-B12510 offset link #60 roller chain)

1шт.

F7837

CHAIN - lower, cylinder speed control (use 4-B12486 chain and 2-B12488 chain #A2040)

1шт.

F7870

CHAIN - drives conveyor rake, strawwalker and tailings auger (use 2-B12517 chain 2-B12520 chain, 1-B12521, conn. link, 1-B12522 offset link and 1-B12523 roller link #CA2050D) see F10184, F10310 and F10449 chains

1шт.

F7872

CHAIN - beater drive (use 2-B12480 chain #60 roller)

1шт.

F7904

X

CHAIN - tailings discharge auger drive (use 1-B12483 chain, 1-B12485 chain and 1-B12515 offset link #CA2040 roller chain)

1шт.

F7945

X

CHAIN - grain elevator drive (use 2-B12471 chain and 1-B12473 chain #40)

1шт.

F7947

CHAIN - auger over grain bin drive (use 1-B12470 chain, 1-B12473 chain, 1-B12501 conn. link, 1-B12502 offset link and 1-B12503 roller link #40)

1шт.

F8000

CHAIN - grain bin auger drive (use 1-B12474 chain, 1-B12475 chain and 2-B12477 chain #50 roller chain)

1шт.

F8015

X

CHAIN - upper cylinder speed control (use 3-B12486 chain, 2-B1248 chain, 2-B12514 conn. link, 1-B12515 offset link and 2-B12516 roller link #A2040)

1шт.

F8392

CHAIN - main header drive (use 1-B12493 chain, 4-B12496 chain and 1-B12529 offset link #CA2060D roller chain)

1шт.

F8393

CHAIN - drives reel drive jackshaft (use 1-B12483 chain, 3-B12485 chain #CA2040)

1шт.

F8395

X

CHAIN - header auger drive (used 1-B12478 chain, 2-B12479 chain, 1-B12481 chain 1-B12509 conn. link, 1-B12510 offset link and 1-B12511 roller link #60)

1шт.

F8400

X

CHAIN - auger drive extension (use 1-B12509 conn. link, 1-B12510 offset link and 1-B12511 roller link #60 roller chain)

1шт.

F8401

CHAIN - auger drive extension (use 1-B12481 chain)

1шт.

F8456

CHAIN - upper roller drive (used 1-B12478 chain #60 roller chain) flax attachment

1шт.

F8458

X

CHAIN - extension, lower roller drive (use 1-B12479 chain, 1-B12480 chain and 2-B12510 offset link #60 roller chain)

1шт.

F8623

X

CHAIN - weed seed auger drive (use 1-B12483 chain, 2-B12513 roller links, 1-B12515 offset link and 2-B12512 conn. link #CA2040 chain)

1шт.

F8634

CHAIN - roto cleaner drive (used 3-B12483 chain and 1-B12484 chain #CA2040 chain)

1шт.

F8655

X

CHAIN - lower roller drive (pickup attach) use 2-B12483 chain, 1-B12512 conn. link, 1-B12513 roller link and 3-B12515 offset link #CA2040 roller chain

1шт.

F8682

X

CHAIN - cylinder drive (slow speed attach) use 2-B12478 chain, 1-B12479 chain, 1-B12481 chain and 1-B12510 conn. link #60 roller chain

1шт.

F8683

CHAIN - extension (use 1-B12480 chain #60) slow cylinder speed attachment

1шт.

F8715

CHAIN - distribution auger drive (use 1-B12483 chain, and 1-B12515 offset link #CA2040 roller chain) roto cleaner attachment

1шт.

F8866

CHAIN - inlet elevator drive (use 1-B12486 chain, and 3-B12488 chain #A2040) bagging platform attachment

1шт.

F9024

X

CHAIN - cylinder drive (used 2-B12478 chain, 4-B12481 chain, 4-B12509 conn. link, 1-B12510 offset link, and 4-B12511 roller link #60 roller chain)

1шт.

F9144

CHAIN - roto cleaner drive (use 1-B12470 chain, 1-B12471 chain, 1-B12472 chain, 1-B12473 chain and 1-B12502 offset link #40 roller chain)

1шт.

F9156

CHAIN - cross auger drive (use 1-B12486 chain, 1-B12487 chain, 1-B12514 conn. link, 1-B12515 offset link, 1-B12516 roller link #A2040 roller chain)

1шт.

F9427

CHAIN (AG)

CHAIN - pickup main drive (use 1-B12474 chain and 1-B12477 chain #50 roller)

1шт.

F9701

X

CHAIN - jackshaft drive (slow header speed attach) use 3-B12478 chain, 2-B12509 conn. link, 3-B12510 offset link and 2-B12511 roller link #60 roller chain

1шт.

F9702

CHAIN - upper feed rake shaft drive (slow header speed attach) use 1-B12478 chain, 2-B12479 chain, 1-B12480 chain and 1-B12510 offset link #60 chain

1шт.

F10184

CHAIN - drives conveyor rake, strawwalker and tailings auger (use 4-B12474 chain, 1-B12475 chain and 1-B12476 chain #50 roller) grain machines (see F10310) after no. 8160601

1шт.

F10310

X

CHAIN - drives conveyor rake, strawwalker and tailings auger (use 5-B12474 chain, 1-B12476 chain, 1-B12505 conn. link, 1-B12506 offset link and 1-B12507 roller link #50 roller chain) after no. 8160601 (see F10184)

1шт.

F10345

X

CHAIN - screen drive (used 1-B12470 chain, and 1-B12473 chain #40 roller)

1шт.

F10449

CHAIN - extension, for F7870 chain (use 2-B12520 chain, 1-B12521 conn. link, 1-B12522 offset link and 3-B12523 roller link #CA2050 roller chain)

1шт.
