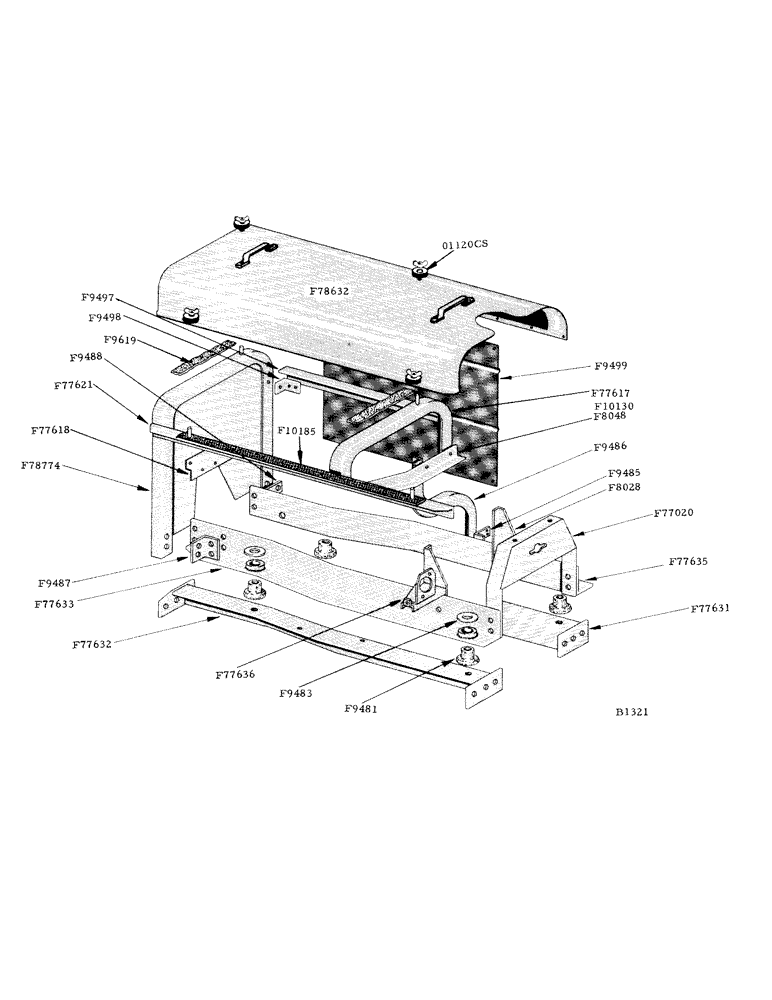

Запчасти Case IH 800 (242) - ENGINE HOOD AND SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

F8028

SUPPORT - engine front

1шт.

3/4" x 2" N.F. hex bolt w/hex nut and lockwasher

2шт.

F8048

ANGLE - radiator support, Serial Range: (bolts-engine)

1шт.

7/16" x 3/4" N.C. hex. bolt and lockwasher

2шт.

F9481

MOUNTING - engine (rubber)

4шт.

F9483

WASHER (2-3/8" O.D. x 21/32" I.D. #10 ga.) engine mounting

4шт.

F9485

BRACKET - engine shield support, R.H. front

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex nut and lockwasher

2шт.

F9486

ANGLE - frame and shield support, R.H. (lower)

1шт.

3/8" x 1" N.F. hex bolt w/hex nut and lockwasher

1шт.

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher

2шт.

F9487

BRACKET - firewall support, L.H. rear

1шт.

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher

2шт.

F9488

BRACKET - firewall support, L.H. front (bottom)

1шт.

5/16" x 3/4" N.f. hex bolt w/hex nut and lockwasher

2шт.

F9497

ANGLE - engine support, front

1шт.

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher

1шт.

F9498

CLIP - firewall support, L.H. front (top)

1шт.

1/4" x 3/4" N.F. hex. bolt w/hex nut and lockwasher

2шт.

F9499

SHIELD - engine, front side

1шт.

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher

1шт.

F9619

SEAL - felt, top flat surface of F77617 and F78774

2шт.

F10130

ANGLE - radiator anchor angle ("A267D diesel engines only)

1шт.

F10185

SEAL - engine hood, rear (38-1/4" long - felt)

1шт.

F77020

SUPPORT - radiator and stack

1шт.

F77617

FRAME - engine hood, R.H.

1шт.

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher

2шт.

F77618

BRACKET - center support, for firewall

1шт.

3/8" x 3/4" N.C. hex bolt and lockwasher

2шт.

F77621

ANGLE - engine support, upper rear

1шт.

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher

1шт.

F77631

ANGLE - engine mounting, lower front

1шт.

3/8" x 1-1/4" N.F. hex bolt w/hex nut and lockwasher

6шт.

F77632

ANGLE - engine mounting, lower rear

1шт.

3/8" x 1-1/4" N.F. hex bolt w/hex nut and lockwasher

3шт.

F77633

ANGLE - engine support, upper rear

1шт.

7/16" x 1" N.F. hex bolt w/hex nut and lockwasher

4шт.

5/8" x 1-3/4" N.F. hex bolt w/hex nut and lockwasher

1шт.

F77635

ANGLE - engine support, upper front

1шт.

7/16" x 1" N.F. hex bolt w/hex nut and lockwasher

4шт.

5/8" x 1-3/4" N.f. hex bolt w/hex nut and lockwasher

1шт.

F77636

BRACKET - support, engine and hydraulic pump

1шт.

3/4" x 2" N.F. hex bolt w/hex nut and lockwasher

2шт.

F78632

HOOD - engine (replaces F77611)

1шт.

#479 Stanley door handle

2шт.

5/16" - 18 N.C. wing nut and lockwasher

4шт.

F78774

FIREWALL - engine, L.H. end

1шт.

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher

4шт.

01120CS

CUSHION - rubber

4шт.
