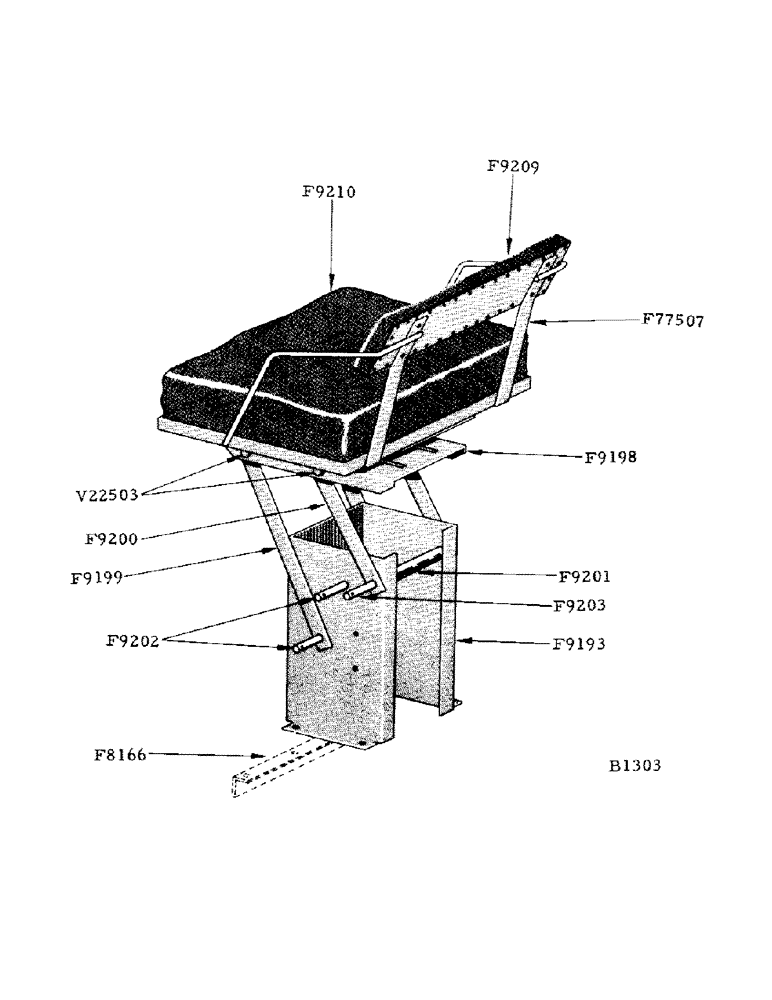

Запчасти Case IH 800 (133) - OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

F8166

ANGLE - seat support (beneath operator's platform)

1шт.

1/2" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9193

SUPPORT - seat

1шт.

1/2" x 1" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F9198

CHANNEL - seat

1шт.

F9199

ARM - front pivot, operator's seat

2шт.

F9200

ARM - rear pivot, operator's seat

2шт.

F9201

SPACER (3/8" std. black pipe - 6 23/32" long) seat support

1шт.

F9202

ROD - pivot (7/16" rd. x 8 1/8" long)

2шт.

1/8" x 3/4" cotter pin

4шт.

F9203

STOP - pivot (7/16" rd. x 7 1/2" long)

1шт.

1/8" x 3/4" cotter pin

2шт.

F9209

BACK REST

1шт.

1/4" x 3/4" N.C. hex. bolt w/lockwasher

4шт.

F9210

CUSHION - seat

1шт.

F77507

FRAME - seat

1шт.

1/4" x 3/4" carr. bolt w/hex. nut, lockwasher and plain washer

4шт.

V22503

PIN - for F9199 and F9200 arms

4шт.
