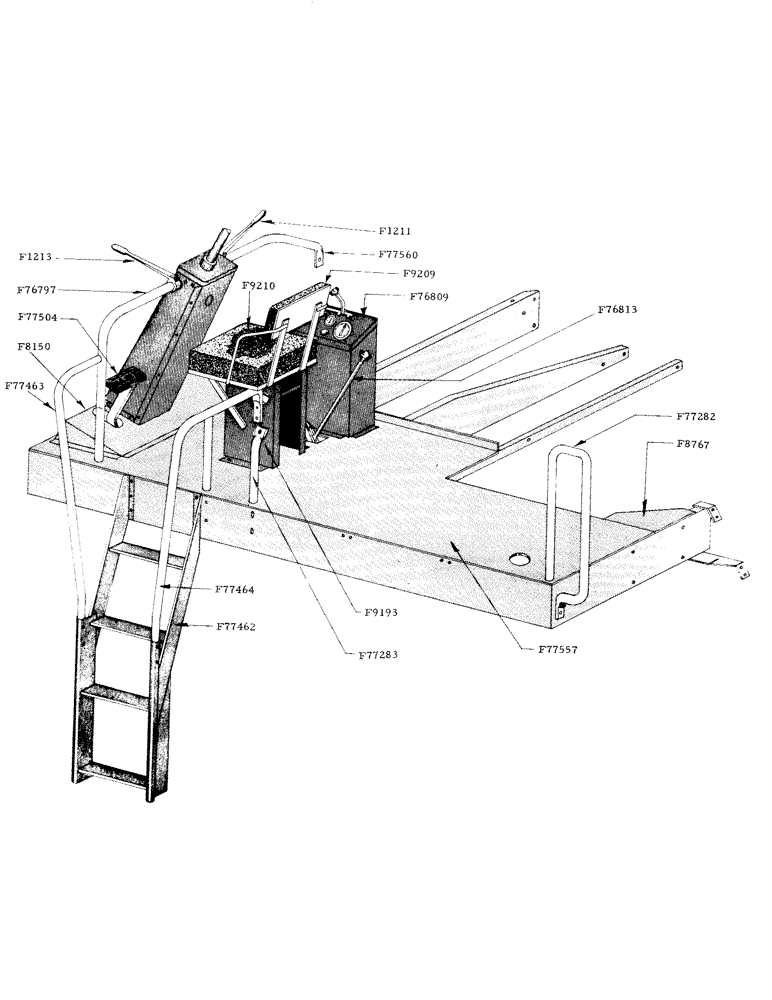

Запчасти Case IH 800 (130) - OPERATORS PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

F1211

LEVER - R.H. control (header lift)

1шт.

F1213

LEVER - L.H. control (variable speed control)

1шт.

F8150

REST - foot

1шт.

1/4" x 1/2" N.C. rd. hd. sq. neck bolt w/hex. nut and lockwasher

4шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F8767

EXTENSION - rear floor

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F9193

SUPPORT - seat (see operator's seat)

1шт.

1/2" x 1" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F9209

BACK REST - operator's seat (see operator's seat)

1шт.

1/4" x 3/4" N.C. hex. bolt w/lockwasher

4шт.

F9210

CUSHION - seat (see operator's seat)

1шт.

F76797

HANDRAIL - front, L.H.

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/lockwasher

1шт.

F76809

PANEL - instrument (see instrument panel illustration)

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

1/4" x 1/2" carr. bolt w/hex. nut and lockwasher

4шт.

F76813

LEVER - control, combine drive (see main combine drive idler assembly)

1шт.

F77281

HANDRAIL - inside rear, operator's platform (bolts to combine body) see rear ladder

1шт.

5/16" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77282

HANDRAIL - outside rear, operator's platform

1шт.

3/8" x 2" N.F. hex. bolt w/hex. nut, lockwasher and dbl. plain washer

1шт.

3/8" x 2-1/4" N.F. hex. bolt w/hex. nut, lockwasher and dbl. plain washer

1шт.

F77283

BRACE - grain bin auger tube support

1шт.

3/8" x 2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77462

LADDER - side

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F77463

HANDRAIL - L.H. for F77462 side ladder

1шт.

1/4" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77464

HANDRAIL - R.H. for F77462 side ladder

1шт.

1/4" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F77504

PEDAL - clutch (see clutch and brake pedals illus.)

1шт.

F77557

PLATFORM - operator's

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

1/4" x 1/2" carr. bolt w/hex. nut and lockwasher

4шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F77560

HANDRAIL - front R.H.

1шт.

1/4" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

5/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.
