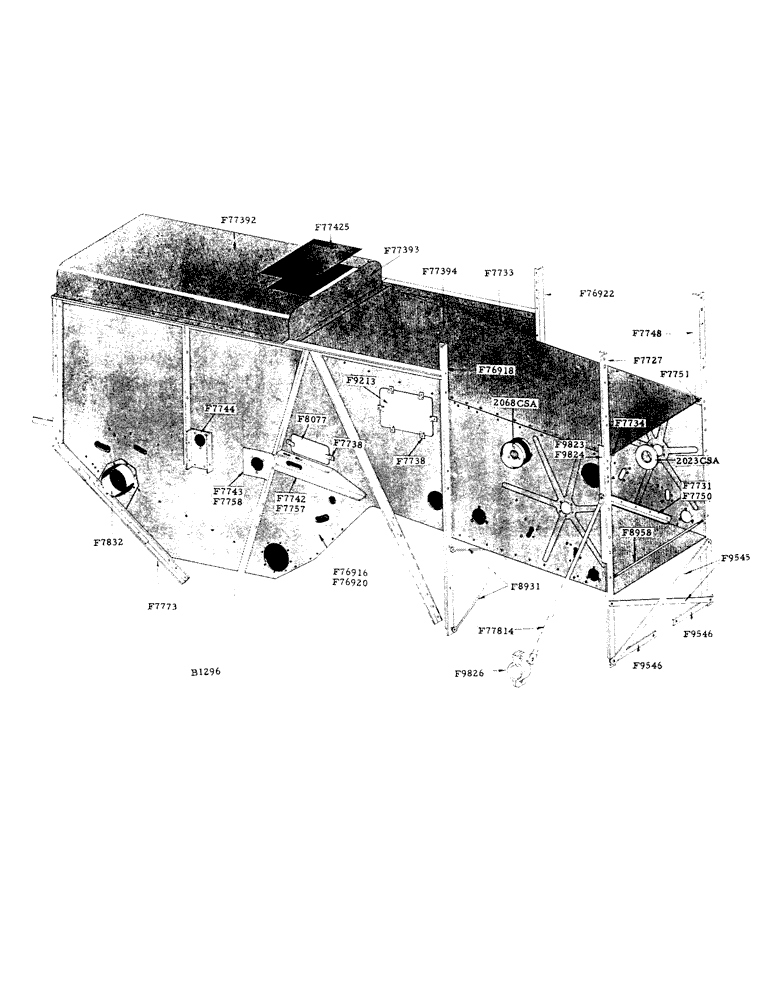

Запчасти Case IH 800 (124) - FRONT SIDES AND DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS

F7727

POST - cylinder, front, R.H.

1шт.

F7731

ANGLE - conveyor rake, R.H.

1шт.

F7734

ANGLE - top deck, R.H.

1шт.

F7748

POST - cylinder, front, L.H.

1шт.

F7750

ANGLE - conveyor rake, L.H.

1шт.

F7751

ANGLE - top deck, L.H.

1шт.

F8931

BRACE - cross, (from R.H. to L.H. rear cylinder posts) beneath body

2шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F8958

ROD - cross, for front cylinder post

1шт.

F9545

BRACE - body support, front

2шт.

F9546

BRACE - lower body

2шт.

1/2" x 1-1/4" N.C. hex. bolt w/hex. nut and lockwasher

2шт.

1/2" x 1-1/2" N.C. hex. bolt w/hex. nut and lockwasher

2шт.

F9823

REINFORCEMENT - for F7748 L.H. cylinder post

1шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F9824

REINFORCEMENT - for F7727 R.H. cylinder post

1шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F9826

CLAMP - for front R.H. cylinder post

2шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F76918

POST - cylinder, rear, R.H.

1шт.

1/2" x 3/4" N.C. hex. bolt and lockwasher

2шт.

F76922

POST - cylinder, rear, L.H.

1шт.

F77394

DECK - front, top

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

27шт.

F77814

BRACE - for R.H. front cylinder post

1шт.

1/2" x 1-3/4" N.F. hex. bolt w/dbl. hex. nut

1шт.

1/2" x 2" N.F. hex. bolt w/dbl. hex. nut

1шт.

2023CSA

PLATE - retaining, cylinder bearing housing

2шт.

2068CSA

PLATE - mounting, for beater

2шт.

F7732

STRIP - wear, conveyor rake angles (F7731 and F7750) not shown, rear sides and deck

2шт.

F7733

FILLER PLATE, combine body, rear sides and deck

2шт.

F7738

CLIP - access door (12 for F9213 door and 4 for F8077 door), rear sides and deck

16шт.

3/16" x 7/16" W.B. hd. rivet, rear sides and deck

16шт.

F7742

BRACKET - support, rear conveyor rake, R.H., sides and deck

1шт.

F7743

SUPPORT - shoe jackshaft, R.H., rear sides and deck

1шт.

F7744

BRACKET - straw walker crankshaft, rear sides and deck

2шт.

F7757

BRACKET - tightener, conveyor rake rear shaft, L.H., sides and deck

1шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher, rear sides and deck

2шт.

1/2" x 4" carr. bolt (3-3/8" min. thrd.) w/hex. nut and lockwasher, rear sides and deck

1шт.

F7758

SUPPORT - shoe jackshaft, L.H., rear sides and deck

1шт.

F7764

BRACKET - upper, skirt (upper brace for diagonal brackets) L.H. side only (not shown), rear sides and deck

1шт.

5/16" x 3/4" rd. hd. rivet, rear sides and deck

4шт.

F7765

BRACKET - lower, skirt (lower brace for diagonal brackets) L.H. side only (not shown), rear sides and deck

1шт.

5/16" x 3/4" rd. hd. rivet, rear sides and deck

4шт.

F7773

STIFFENER - rear body angle, sides and deck

2шт.

F7832

FLANGE - tailings auger, rear sides and deck

1шт.

F8077

DOOR - access, conveyor rake, rear sides and deck

2шт.

F9003

STRAP - tension, across rear body (not shown), rear sides and deck

2шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher, rear sides and deck

4шт.

F9213

DOOR - side, rear, and deck

2шт.

F76916

SIDE SHEET, R.H. (includes front panel F7726), rear sides and deck

1шт.

F76920

SIDE SHEET, L.H. (includes front panel F7746), rear sides and deck

1шт.

F77393

REINFORCEMENT - filler, rear deck, and sides

1шт.

F77425

DOOR - rear deck, and sides

1шт.

F77392

DECK - rear, and sides

1шт.
