(284) - POWER ADJUSTABLE TREAD DRIVE WHEELS

Запчасти Case IH 800 (284) - POWER ADJUSTABLE TREAD DRIVE WHEELS (88) - ACCESSORIES

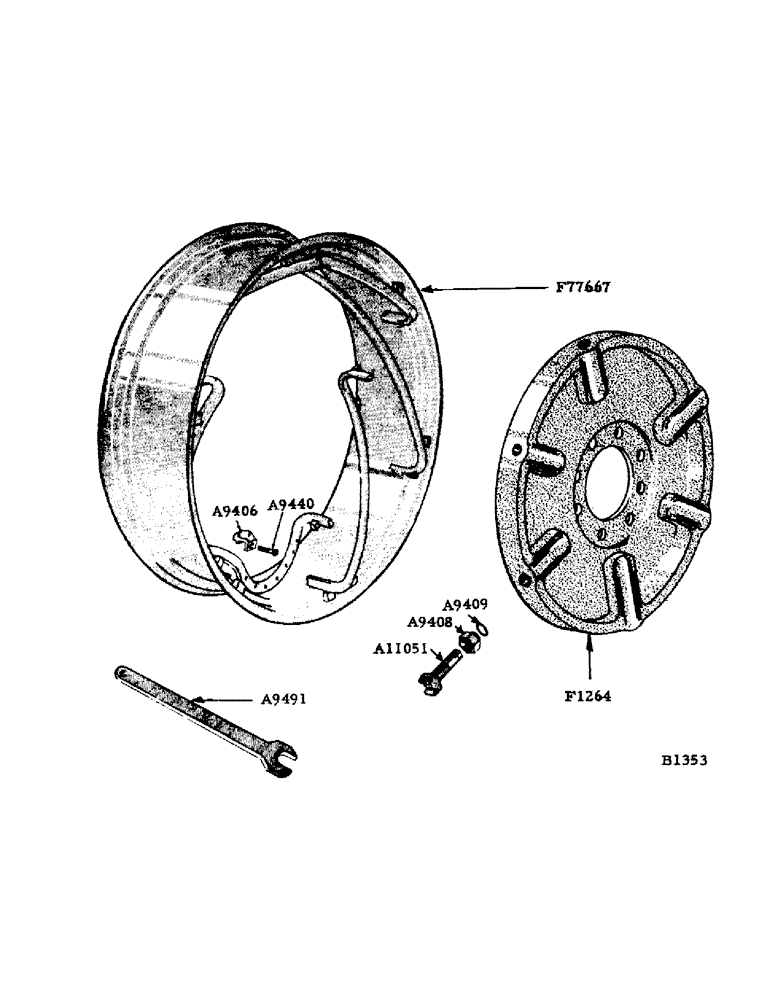

Схема запчастей Case IH 800 - (284) - POWER ADJUSTABLE TREAD DRIVE WHEELS (88) - ACCESSORIES
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A9406

STOP

- lug, drive wheel rim

4шт.

A9408

NUT

- drive wheel jack screw

12шт.

A9409

X

"O" RING - retaining, jack screw

12шт.

A9440

STOP

SCREW - drive wheel rim stop

4шт.

A9491

WRENCH - drive wheel jack screw

1шт.

A11051

SCREW,Jack

- jack, drive wheel, with A9408 nut

12шт.

F1264

WHEEL - drive

2шт.

5/8" x 2-1/2" N.F. hex. bolt (grade 5-2" min. thrd.) w/hex. jam nut

16шт.

F77667

RIM - for 14 x 26 6 ply tire

2шт.
