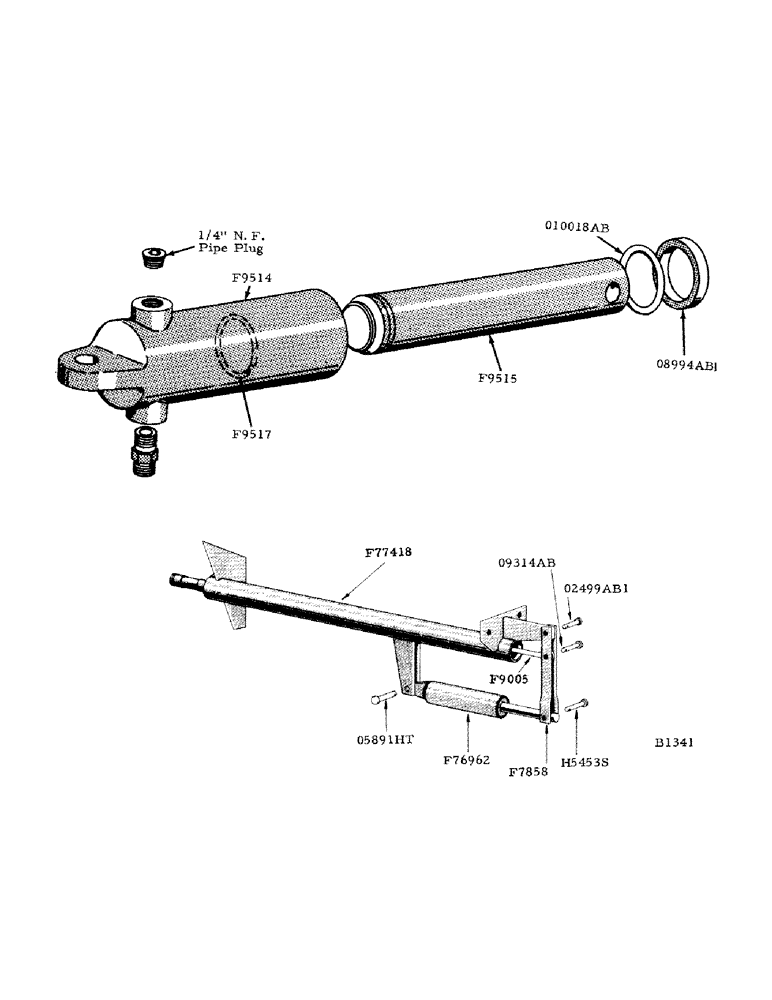

Запчасти Case IH 800 (265) - F76962 VARIABLE SPEED CONTROL CYLINDER (88) - ACCESSORIES

F9514

BARREL - (2-1/4" O.D.) cylinder

1шт.

1/4" N.F. pipe plug

2шт.

F9515

ROD - cylinder

1шт.

F9517

SNAP RING

1шт.

F76962

CYLINDER - variable speed control

1шт.

08994AB1

SEAL - oil

1шт.

010018AB

"O" RING - (3/16" x 1-1/2" I.D.)

1шт.

F7858

LINK - adjusting, V.S. traction drive, rod

2шт.

F9005

ROD - adjusting, V.S. traction drive

1шт.

7/16" N.F. hex. nut, V.S. traction drive adjusting rod

2шт.

F76962

CYLINDER - variable speed control, V.S. traction drive adjusting rod

1шт.

F77418

TUBE - variable speed adjusting rod housing, traction drive

1шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher, V.S. traction drive adjusting rod

4шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher, V.S. traction drive adjusting rod

3шт.

02499AB1

PIN - upper clevis, for F7858 link (5/8" x 1-37/64"), V.S. traction drive adjusting rod

1шт.

1/8" x 1" cotter pin, V.S. traction drive adjusting rod

1шт.

09314AB

PIN - center clevis, F7859 rod to F7858 link (9/16" x 1-25/64"), V.S. traction drive, adjusting

1шт.

1/8" x 1" cotter pin, V.S. traction drive adjusting rod

1шт.

05891HT

PIN - clevis, cylinder F76962 to F76960 shaft (9/16" x 1-11/16"), V.S. traction drive adjusting rod

1шт.

1/8" x 1" cotter pin, V.S. traction drive adjusting rod

1шт.

H5453S

PIN - lower clevis, F76962 cylinder to F7858 link (1/2" x 2-1/2"), V.S. traction drive adjusting rod

1шт.
