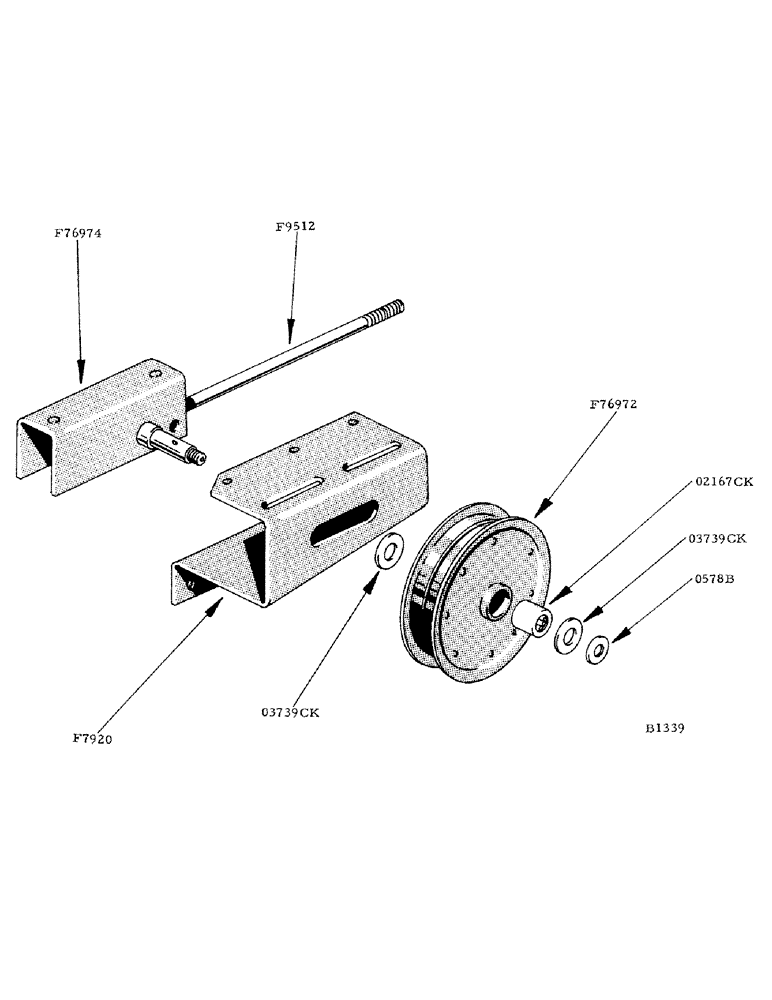

Запчасти Case IH 800 (264) - MAIN DRIVE SHAFT TRACTION DRIVE TIGHTENER (88) - ACCESSORIES

F7920

BRACKET - idler support

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

5шт.

3/8" x 1 1/4" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F9512

ROD - adjusting, traction drive

1шт.

1/2" hex. nut and plain washer

2шт.

F76972

SHEAVE (10 3/4" O.D.) idler

1шт.

1/4" x 5/8" W.B. hd. rivet

8шт.

1/4" plain washer

8шт.

F76974

SHAFT (5 3/4" long) idler, with adjustment bracket

1шт.

1/8" 90deg. Lincoln fitting #5400

1шт.

5/8" N.F. hex. nut

1шт.

5/8" lockwasher

2шт.

0578B

WASHER (1 1/4" O.D. x 21/32" I.D. #16 ga.) spacer, idler shaft

1шт.

02167CK

BEARING (Torrington #BL1628-OH) idler sheave

1шт.

03739CK

WASHER (1 7/8" O.D. x 1 3/32" I.D. #16 ga.) idler shaft

2шт.
