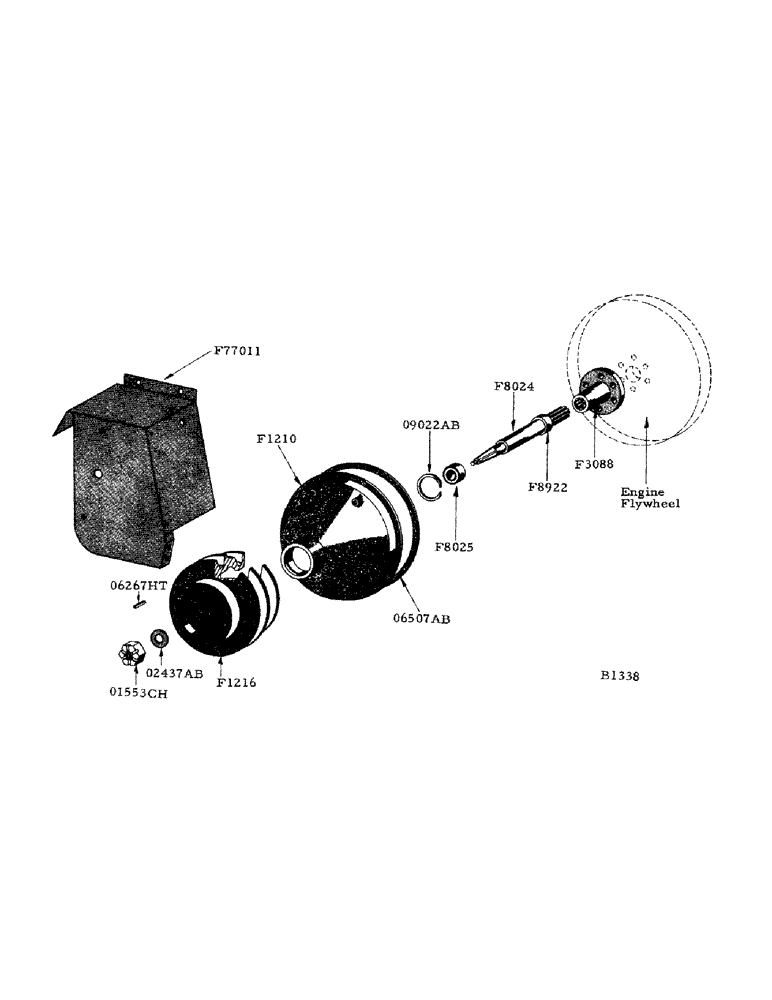

Запчасти Case IH 800 (263) - ENGINE OUTPUT SHAFT AND HOUSING (88) - ACCESSORIES

F1210

FITTING

HOUSING - engine output shaft

1шт.

F1216

SHEAVE - multiple drive, main combine drive, variable speed traction drive and grain bin drive

1шт.

F3088

HUB - output shaft, Serial Range: (bolts-flywheel)

1шт.

F8024

SHAFT - engine output (12-5/16" splined)

1шт.

F8025

BEARING

-(Fafnir #208NPP) engine output shaft

1шт.

F8922

SPACER - pipe (3/4")

1шт.

F77011

SCREW

GUIDE - belt, for F1216 multiple drive sheave

1шт.

06507AB

GASKET - housing (12-7/16" I.D.)

1шт.

09022AB

SNAP RING - for F8025 bearing

1шт.

02437B

WASHER (2" O.D. x 1-1/32" I.D. #10 ga.) outer end of F8024 shaft, for F1216 sheave

1шт.

01553CH

NUT (1" slotted) for F8024 shaft

1шт.

06267HT

KEY (1-1/4" straight) for F1216 sheave

1шт.
