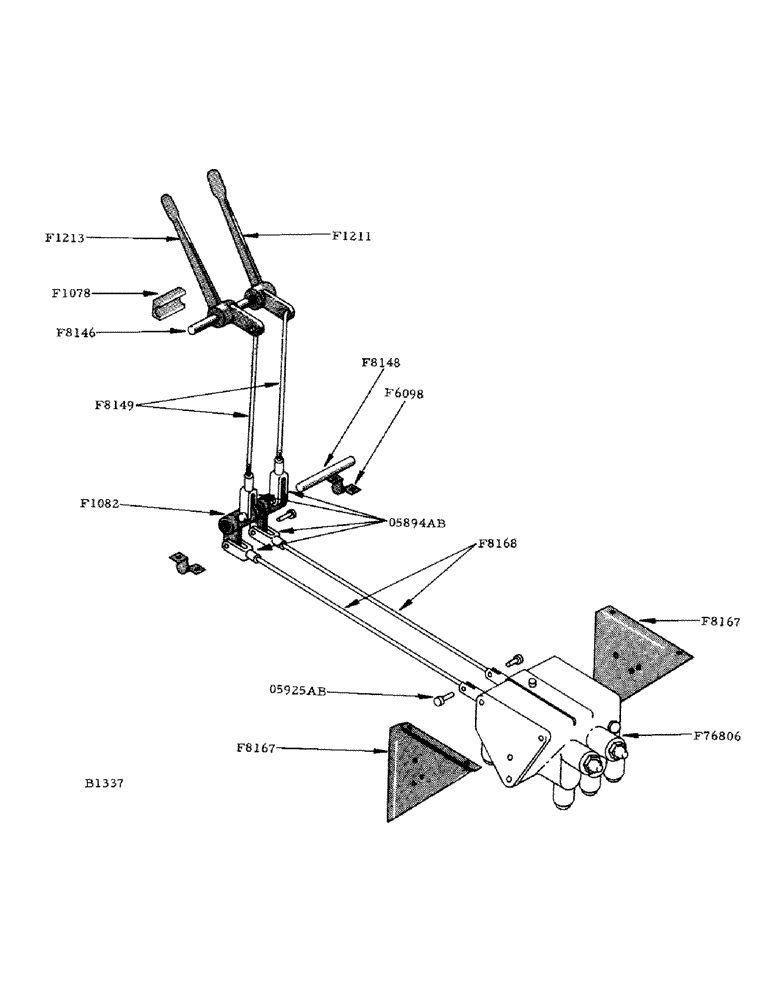

Запчасти Case IH 800 (262) - HEADER LIFT AND VARIABLE SPEED CONTROL LINKAGE (88) - ACCESSORIES

F1078

JOINT

BLOCK - spacer, front hand rail

1шт.

3/8" x 2" carr. bolt w/hex. nut and lockwasher

2шт.

F1082

BELLCRANK

2шт.

F1211

LEVER - R.H. control

1шт.

F1213

LEVER - L.H. control

1шт.

F6098

CLIP - anchor, for pivot shaft

2шт.

5/16" x 1/2" carr. bolt w/hex. nut and lockwasher

4шт.

F8146

ROD - use F76797 hand rail

1шт.

F8148

SHAFT - pivot, bellcrank

1шт.

F8149

ROD - upper control

2шт.

1/8" x 3/4" cotter pin

2шт.

F8167

BRACKET - mounting, control valve

2шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

F8168

ROD - lower control

1шт.

3/8" x 3/4" N.F. hex. jam nut

2шт.

F76806

VALVE - hydraulic, variable speed control

1шт.

3/8" x 5/8" N.C. hex. bolt w/lockwasher

3шт.

05894AB

CLEVIS - upper and lower control rods (both ends of F1082 bellcrank)

4шт.

05925AB

PIN - 4 - for 05894AB clevis and 2 - for F8168 rod to F76806 valve

6шт.

3/32" x 3/4" cotter pin

6шт.
