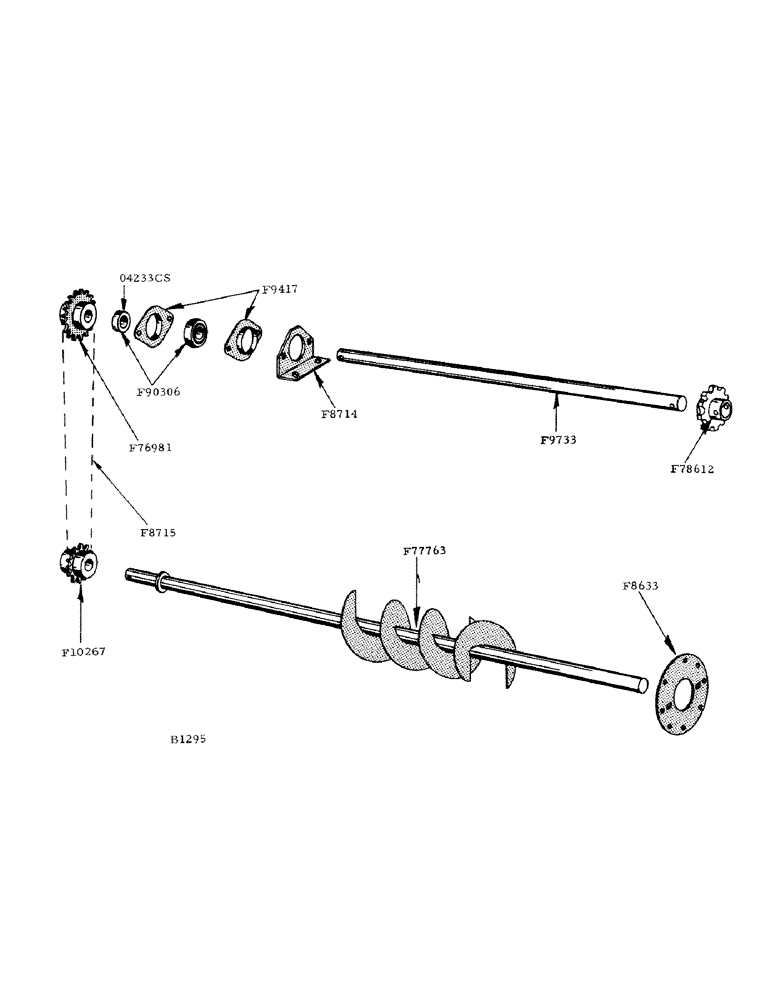

Запчасти Case IH 800 (123) - DISTRIBUTION AUGER, FOR ROTO CLEANER ATTACHMENT, GRAIN BIN MACHINES (88) - ACCESSORIES

F8633

COVER - auger opening, L.H. end of grain bin

1шт.

F8714

BRACKET - auger drive bearing support

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F8715

CHAIN - distribution auger drive (use 1-B12483 chain 1-B12515 offset link #CA2040 roller chain)

1шт.

F9417

FLANGE

- for F90306 bearing

2шт.

5/16" x 1/2" carr. bolt w/hex. nut and lockwasher

2шт.

F9733

SHAFT - drives distribution auger

1шт.

F10267

SPROCKET (13T) weed seed auger drive, driven

1шт.

1/4" x 1-3/4" N.F. hex. bolt

1шт.

1/4" N.F. jam nut

2шт.

F76981

SPROCKET (22T) distribution auger drive

1шт.

F77763

AUGER - discharge, distribution

1шт.

F78612

SPROCKET (17T) screen drive (couples F9733 shaft to weed seed auger)

1шт.

1/4" x 1-3/8" N.F. hex. bolt w/double jam nut

2шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA014PPB w/04233CS collar) R.H. end of F9733 shaft

1шт.

04233CS

COLLAR - for F90306 bearing

1шт.
