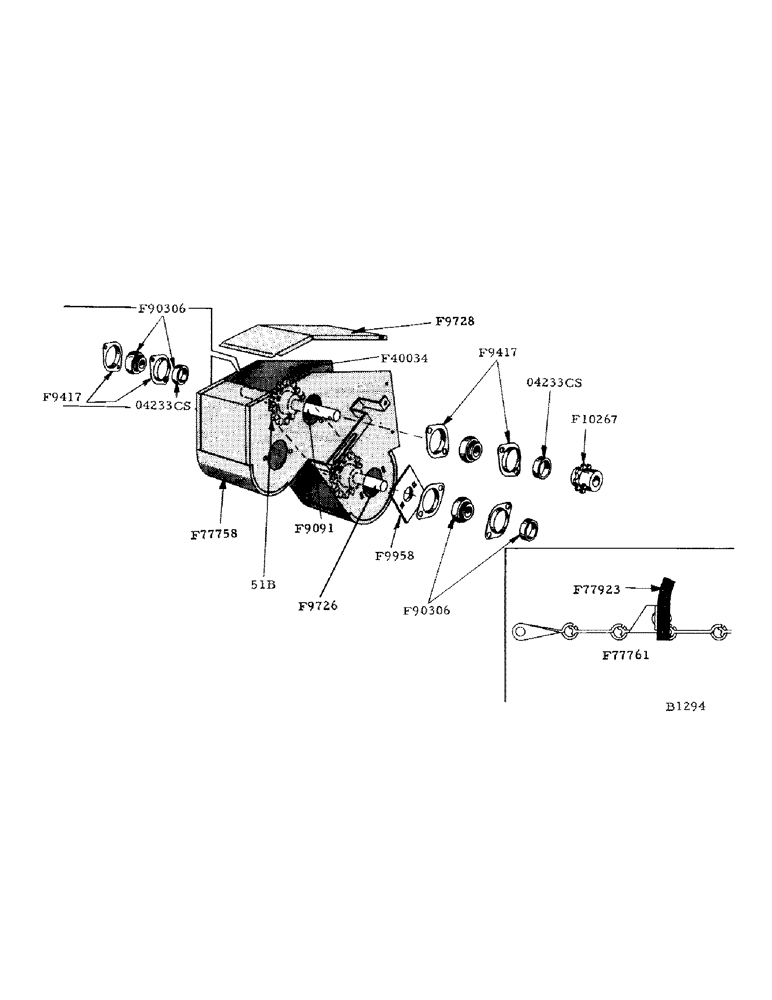

Запчасти Case IH 800 (122) - INLET ELEVATOR, FOR ROTO CLEANER ATTACHMENT, GRAIN BIN MACHINES (88) - ACCESSORIES

F9091

SHAFT - upper, inlet elevator

1шт.

F9417

FLANGE

- for F90306 bearing

8шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

8шт.

F9726

SHAFT - lower, inlet elevator

1шт.

COVER - inlet housing

1шт.

1/4" x 1/2" N.C. hex. bolt and lockwasher

2шт.

F9958

PLATE - bearing cover, lower shaft

1шт.

F10267

SPROCKET (13T) elevator drive

1шт.

1/4" x 1-3/4" N.F. hex. bolt

1шт.

1/4" N.F. hex. jam nut

2шт.

F40034

KEY

("A" Woodruff) for 51B sprockets

2шт.

F77758

HOUSING - grain inlet

1шт.

F77761

CHAIN and flights (includes 8-#55 plain links, 1-#55 coupler link and 6-F77923 flight)

1шт.

F77923

RUBBER FLIGHT

FLIGHT - inlet elevator chain (includes 2-#55 plain links, 1-#55 S.H. attach. link, riveted to flight w/2-1/4" x 12/16" tubular rivet

6шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-014PPB) w-04233 CS collar) upper and lower elevator shaft

4шт.

51B

SPROCKET ASSY.

SPROCKET (7T) elevator shafts

2шт.

3/16" x 2" cotter pin

2шт.

04233CS

COLLAR - for F90306 bearing

4шт.

F78735M

SCREEN (.165 triangular hold) regular, roto cleaner, extra

1шт.

F78736M

SCREEN (3/16" round hole), roto cleaner, extra

1шт.

F78737M

SCREEN (1/20" round hole), roto cleaner, extra

1шт.

F78738M

SCREEN (1/12" round hole), roto cleaner, extra

1шт.

F78739M

SCREEN - (.140 triangular hole), roto cleaner, extra

1шт.
