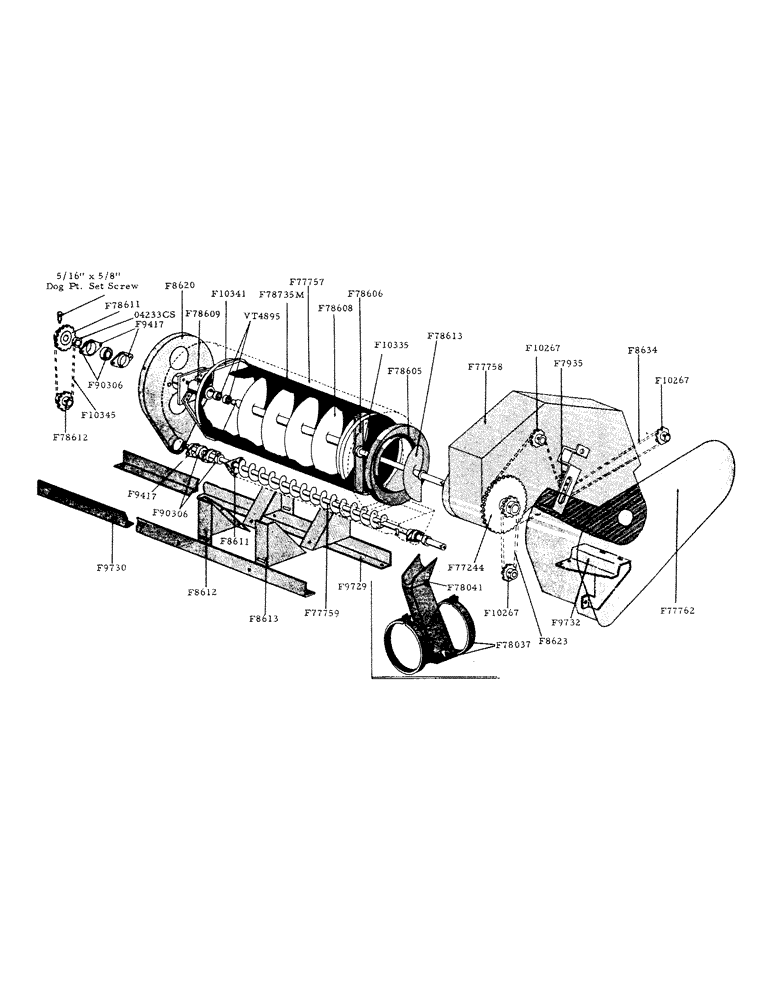

Запчасти Case IH 800 (120) - ROTO CLEANER ATTACHMENT, GRAIN BIN MACHINE (80) - CROP STORAGE/UNLOADING

F7935

SPROCKET ASSY.

SPROCKET (18T) tightener (Aetna #AG - 2318) roto cleaner drive

1шт.

5/8" x 1-3/4" N.C. hex. bolt w/jam nut and lockwasher

1шт.

5/8" plain washer

2шт.

F8612

BRACKET - support, R.H.

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F8613

BRACKET - support, L.H.

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F8620

HEAD - roto housing, R.H.

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex, nut and lockwasher

6шт.

F8634

CHAIN - roto cleaner drive (use 3-B12483 chain, and 1-B12484 chain #CA2040)

1шт.

F9417

FLANGE

- for F90306 bearing

4шт.

5/16" x 1/2" carr. bolt w/hex. nut and lockwasher

4шт.

F9729

ANGLE - rear support, roto cleaner housing

1шт.

F9730

ANGLE - front support, roto cleaner housing

1шт.

F9732

BRACKET - roto cleaner elevator support

1шт.

F10335

BUSHING - for F78606 screen support

1шт.

F10341

SUPPORT - screen, R.H.

4шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

4шт.

F10345

X

CHAIN - screen drive (use 1-B12470 chain and 1-B12473 chain #40 roller)

1шт.

F77244

SPROCKET (13T-55T dbl.) drives inlet auger and weed seed auger

1шт.

1/4" x 1-3/4" N.F. hex. bolt

1шт.

1/4" N.F. hex. jam nut

2шт.

F77757

HOUSING - roto cleaner

1шт.

F77758

HOUSING - grain inlet

1шт.

1/4" x 3/8" N.C. rd. hd. mach. screw and lockwasher

5шт.

F77762

SHIELD - chain

1шт.

F78605

HEAD - roto cleaner screen, L.H.

1шт.

#14 x 1/2" type "A" rd. hd. mach. screw

2шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/lockwasher

2шт.

F78606

SUPPORT - screen, L.H. (includes F10335 bushing)

1шт.

F78608

ROTO ASSEMBLY

1шт.

F78609

SCREEN DRIVE (includes 2-VT4895 bearing)

1шт.

F78611

SPROCKET (23T) screen drive, driven

1шт.

5/16" x 5/8" sq. hd. dog pt. set screw

1шт.

F78612

SPROCKET (17T) screen drive

1шт.

1/4" x 1-3/8" N.F. hex. bolt w/double jam nut

2шт.

F78613

AUGER - inlet conveyor

1шт.

F78735M

SCREEN - (.165 triangular hole) regular

1шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-014PPB w/04233CS) roto shaft

2шт.

VT4895

X

BEARING (Torrington #B148) for F78609 driver assembly

2шт.

04233CS

COLLAR - for F90306 bearing

2шт.

F8611

PLATE - end, weed seed auger trough

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher, weed seed auger

4шт.

F8623

X

CHAIN - weed seed auger drive (use 1-B12483 chain, 2-B12513 roller link 1-B12515 offset link and 2-B12512 conn. link #CA2040 roller chain)

1шт.

F9417

FLANGE

- for F90306 bearing (R.H. end of auger), weed seed

4шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher, weed seed auger

4шт.

F10267

SPROCKET (13T) weed seed auger drive, driven

1шт.

1/4" x 1-3/4" N.F. hex. bolt, weed seed auger

1шт.

1/4" N.F. jam nut, weed seed auger

2шт.

F77759

AUGER - weed seed

1шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-014PPB w/04233CS) both ends of auger shaft, weed seed

2шт.

04233CS

COLLAR - for F90306 bearing, weed seed auger

2шт.

F78037

BAND - support, for chute, weed seed discharge tube

2шт.

1/4" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher, weed seed discharge tube

2шт.

F78041

CHUTE - weed seed discharge, tube

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/lockwasher, weed seed discharge tube

4шт.
