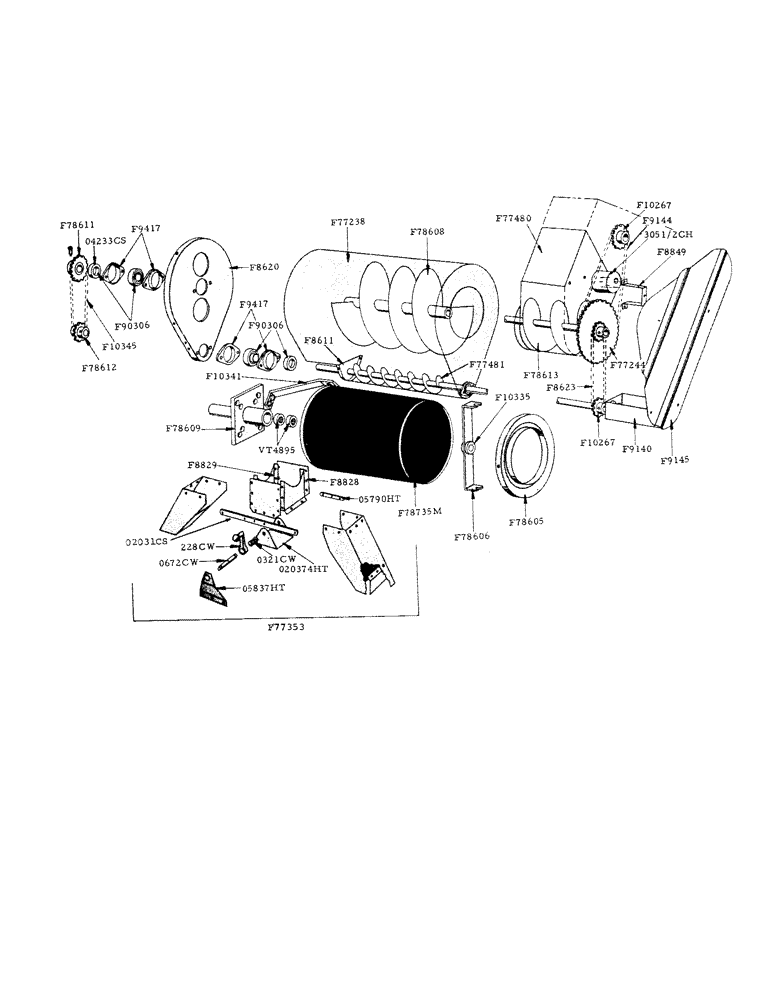

Запчасти Case IH 800 (118) - ROTO CLEANER ATTACHMENT, BAGGER ATTACHMENT (80) - CROP STORAGE/UNLOADING

F8611

PLATE - end, auger trough

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F8620

HEAD - roto cleaner housing R.H.

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F8623

X

CHAIN - weed seed auger drive (use 1-B12483 chain, 2-B12512 conn. link, 2-B12513 roller link, 1-B12515 offset link #CA2040 roller chain) see chain page

1шт.

F8828

SHEET - side, down spout

2шт.

1/8" x 1/4" W.B. hd. rivet w/burr

3шт.

1/4" x 1/2" N.F. hex. bolt w/hex, nut and lockwasher

2шт.

F8829

PLATE - end, down spout

2шт.

1/8" x 1/4" W.B. hd. rivet

16шт.

F8849

SUPPORT - chain shield, upper end

1шт.

1/4" x 1/2" carr. bolt w/hex. nut, lockwasher, plain washer

3шт.

F9140

BRACKET - chain shield, lower end (weed seed auger)

1шт.

5/16" x 1/2" carr. bolt w/hex. nut and lockwasher

2шт.

F9144

CHAIN - roto cleaner drive (use 1-B12470 chain, 1-B12471 chain, 1-B12472 chain, 1-B12473 chain and 1-B12502 offset link)

1шт.

F9145

SHIELD - chain, roto cleaner drive

1шт.

1/4" x 1/2" carr. bolt w/wing nut and lockwasher

3шт.

F9417

FLANGE

- for F90306 bearing

8шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

8шт.

F10267

SPROCKET (13T) weed seed auger drive, driven

1шт.

1/4" x 1-3/4" N.F. hex. bolt

1шт.

1/4" N.F. jam nut

2шт.

F10335

BUSHING - for F78606 screen support

1шт.

F10341

SUPPORT - screen, R.H.

4шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

4шт.

F10345

X

CHAIN - screen drive (use 1-B12470 chain and 1-B12473 chain #40 roller)

1шт.

F77238

HOUSING - roto cleaner

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/lockwasher

9шт.

F77244

SPROCKET (13T and 55T dbl.) rotor drive, driven

1шт.

1/4" x 1-3/4" N.F. hex. bolt

1шт.

1/4" N.F. jam nut

2шт.

F77353

SPOUT - twin sacker

1шт.

F77480

HOUSING - inlet, roto cleaner

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/lockwasher

5шт.

F77481

AUGER - weed seed

1шт.

F78605

HEAD - roto cleaner screen, L.H.

1шт.

#14 x 1/2" type "A" rd. hd. mach. screw

2шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/lockwasher

2шт.

F78606

SUPPORT - screen, L.H. (includes F10335 bushing)

1шт.

F78608

ROTO ASSEMBLY

1шт.

F78609

SCREEN DRIVER - (Includes 2-VT4895 bushing)

1шт.

F78611

SPROCKET (23T) screen drive, driven

1шт.

F78612

SPROCKET (17T) screen drive

1шт.

1/4" x 1-3/8" N.F. hex. bolt w/double jam nut

2шт.

F78613

AUGER - inlet conveyor

1шт.

F78735M

SCREEN (.165 triangular hole) regular (see roto-cleaner screens)

1шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-014PPB w/04233CS) 2-roto shaft, 2-weed seed auger shaft

4шт.

VT4895

X

BEARING (Torrington #B148) for F78609 driven assembly

2шт.

305-1/2CH

BLOCK - tightener, roto cleaner drive chain

1шт.

3/8" x 3-1/4" carr. bolt w/hex. nut, lockwasher, plain washer

1шт.

02031CS

STRAP - sacker holder

1шт.

1/8" x 5/8" W.B. hd. rivet

3шт.

04233CS

COLLAR - for F90306 bearing

4шт.

228CW

LEVER - cutoff

1шт.

0321CW

SPRING - sacker valve pin

1шт.

0672CW

PIN - sacker valve

1шт.

1/8" x 3/4" cotter pin

2шт.

7/16" plain washer

1шт.

05790HT

SUPPORT - sacker spout

1шт.

1/4" x 3/8" W.B. hd. rivet

2шт.

05837HT

BRACKET - sacker cutoff lever

1шт.

1/4" x 1/4" W.B. hd. rivet

2шт.

020374HT

VALVE - sacker shutoff

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/plain washer

1шт.

1/4" N.C. sq. nut

2шт.
