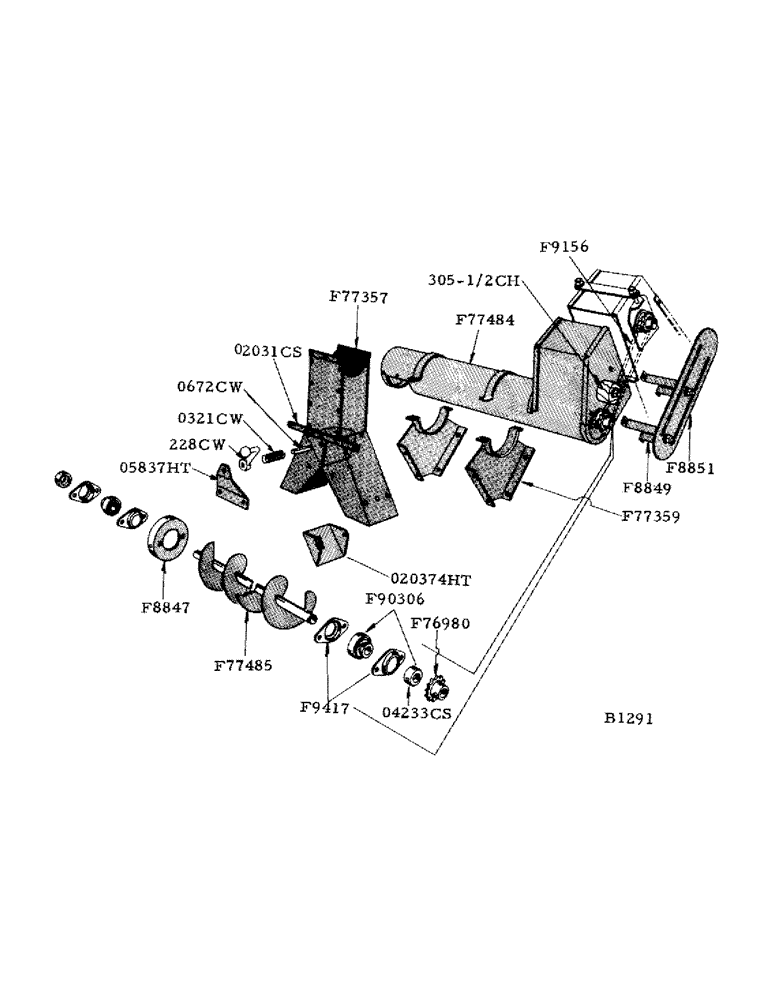

Запчасти Case IH 800 (117) - CROSS AUGER ATTACHMENT, OPTIONAL, BAGGING PLATFORM (80) - CROP STORAGE/UNLOADING

F8847

PLATE - end, auger tube, R.H.

1шт.

5/16" x 3/4" N.C. rd. hd. sq. neck bolt w/hex. nut and lockwasher

2шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F8849

BRACKET - for F8851 chain shield

2шт.

1/4" x 1/2" N.C. rd. hd. short sq. neck bolt w/hex. nut and lockwasher

4шт.

F8851

SHIELD - chain, cross auger drive

1шт.

1/4" x 1/2" N.C. rd. hd. short sq. neck bolt w/wing nut and lockwasher

2шт.

F9156

CHAIN - cross auger drive (use 1-B12486 chain, 1-B12487 chain, 1-B12514 conn. link, 1-B12515 offset link, 1-B12516 roller link #2040 I" double pitch roller chain) see chain page

1шт.

F9417

FLANGE

- for F90306 bearing

4шт.

5/16" x 1/2" carr. bolt w/hex. nut and lockwasher

4шт.

F76980

SPROCKET (13T) cross auger drive, driven

1шт.

1/4" x 1-3/4" N.F. hex. bolt w/dbl. hex. jam nut

1шт.

F77357

SPOUT - twin sacker

1шт.

F77359

SCREW

SUPPORT - cross auger tube

2шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

12шт.

F77484

TUBE - cross auger with hopper

1шт.

F77485

AUGER - cross

1шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-014PPB w/04233CS collar) auger shaft

2шт.

305-1/2CH

BLOCK - tightener (wood) cross auger drive chain

1шт.

3/8" x 3" carr. bolt w/hex. nut, lockwasher and plain washer

1шт.

02031CS

STRAP - sack holder chain

1шт.

1/8" x 5/8" W.B. hd. rivet w/burr

3шт.

04233CS

COLLAR - for F90306 bearing

2шт.

228CW

LEVER - cutoff

1шт.

0321CW

SPRING - sacker valve pin

1шт.

0672CW

PIN - sacker, valve

1шт.

1/8" x 3/4" cotter pin

2шт.

05790HT

SUPPORT - sacker spout (not shown)

1шт.

1/4" x 3/8" W.B. hd. rivet

1шт.

05837HT

BRACKET - sacker spout valve

1шт.

1/4" x 1/4" W.B. hd. rivet

2шт.

020374HT

VALVE - sacker, complete

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw

1шт.

1/4" N.C. sq. nut

2шт.
