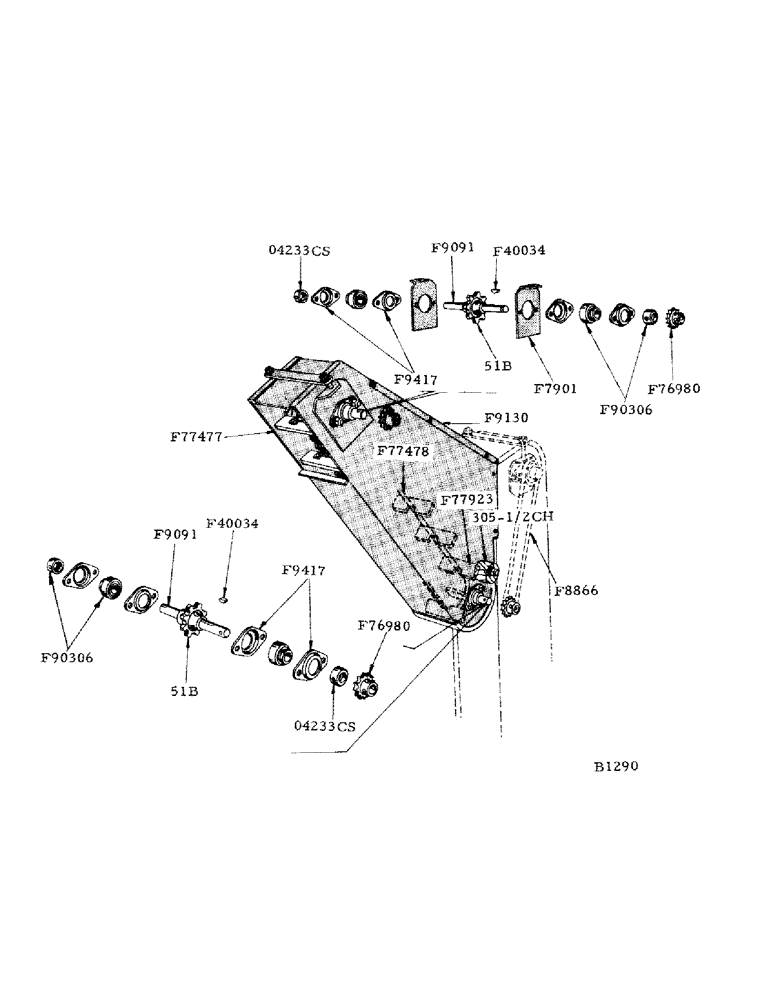

Запчасти Case IH 800 (116) - INLET ELEVATOR, BAGGING PLATFORM (80) - CROP STORAGE/UNLOADING

F7901

HOLDER - bearing

2шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

4шт.

F8866

CHAIN - inlet elevator drive (use 1-B12486 chain and 3-B12488 chain #2040 roller chain) see chain page

1шт.

F9091

SHAFT - upper and lower

2шт.

F9130

COVER - inlet elevator door

1шт.

1/4" x 1/2" N.C. hex. bolt w/lockwasher

6шт.

F9417

FLANGE

- for F90306 bearing (4-for upper shaft and 4-for lower shaft)

8шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

4шт.

F40034

KEY

("A" Woodruff) 51B sprocket shaft

2шт.

F76980

SPROCKET (13T) sump elevator drive and driven

2шт.

F77477

HOUSING - inlet sump elevator

1шт.

1/4" x 1/2" N.C. hex. bolt w/hex. nut and lockwasher

6шт.

F77478

X

CHAIN AND FLIGHTS (includes 14-#55 steel links, 1-#55 coupler links, 1-#55 coupler link and 15-F77923 flight)

1шт.

F77923

RUBBER FLIGHT

FLIGHT - inlet elevator chain (includes 1-#55SH attach. link, 2-#55 steel link riveted to flight w/2-1/4" x 12/16" semi-tubular rivets)

15шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA014-PPB w/04233CS collar) sump elevator

4шт.

51B

SPROCKET ASSY.

SPROCKET (7T), 1-each - upper and lower elevator shafts

2шт.

3/16" x 2" cotter pin

2шт.

305-1/2CH

BLOCK - tightener

1шт.

3/8" x 3" N.C. rd. hd. sq. neck bolt w/hex. nut, lockwasher and plain washer

1шт.

04233CS

COLLAR - for F90306 bearing

4шт.
