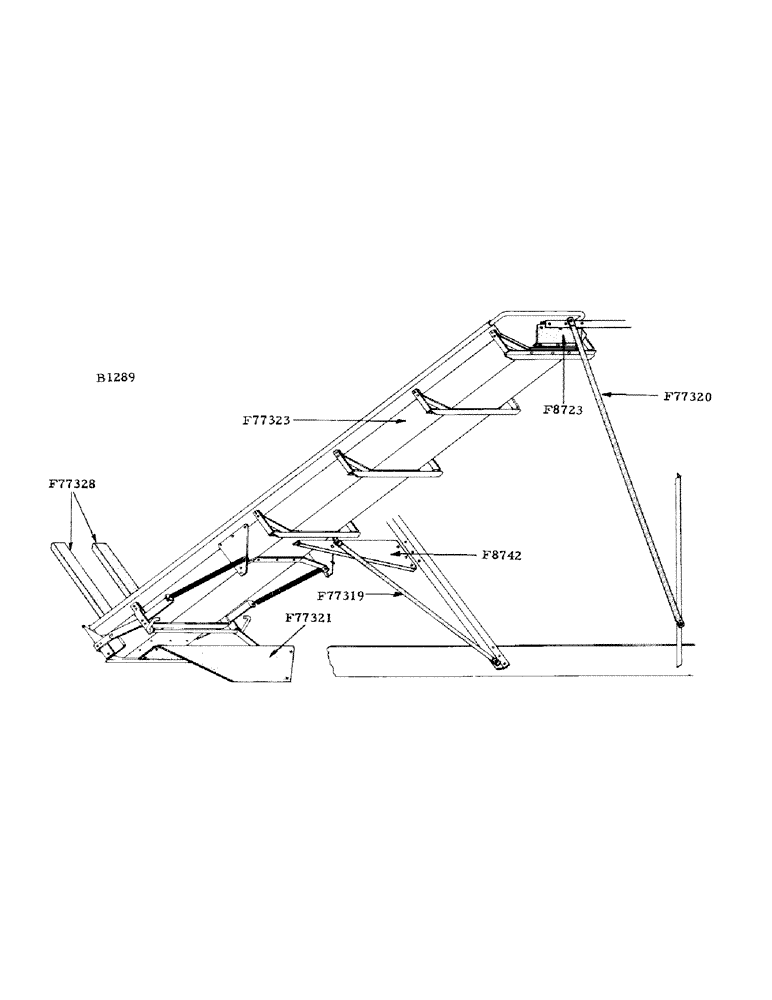

Запчасти Case IH 800 (115) - BRACES FOR BAG CHUTE (80) - CROP STORAGE/UNLOADING

F8723

PLATE - front support

1шт.

3/8" x 7/8" N.F. hex bolt w/hex nut and lockwasher

2шт.

F8742

SUPPORT - center, bag chute to body side angle

1шт.

3/8" x 7/8" N.F. hex bolt w/hex nut and lockwasher

3шт.

F77319

SCREW

BRACE - bag chute center support

1шт.

7/16" x 1-1/2" N.F. hex bolt w/hex nut and lockwasher

2шт.

F77320

BRACE - bag chute front support

1шт.

7/16" x 1-1/2" N.F. hex bolt w/hex nut and lockwasher

2шт.

F77321

SUPPORT - rear, bag chute

1шт.

3/8" x 1" N.F. hex bolt w/hex nut and lockwasher

5шт.

F77323

BAG CHUTE - w/bail

1шт.

F77328

EXTENSION - end gate

2шт.
