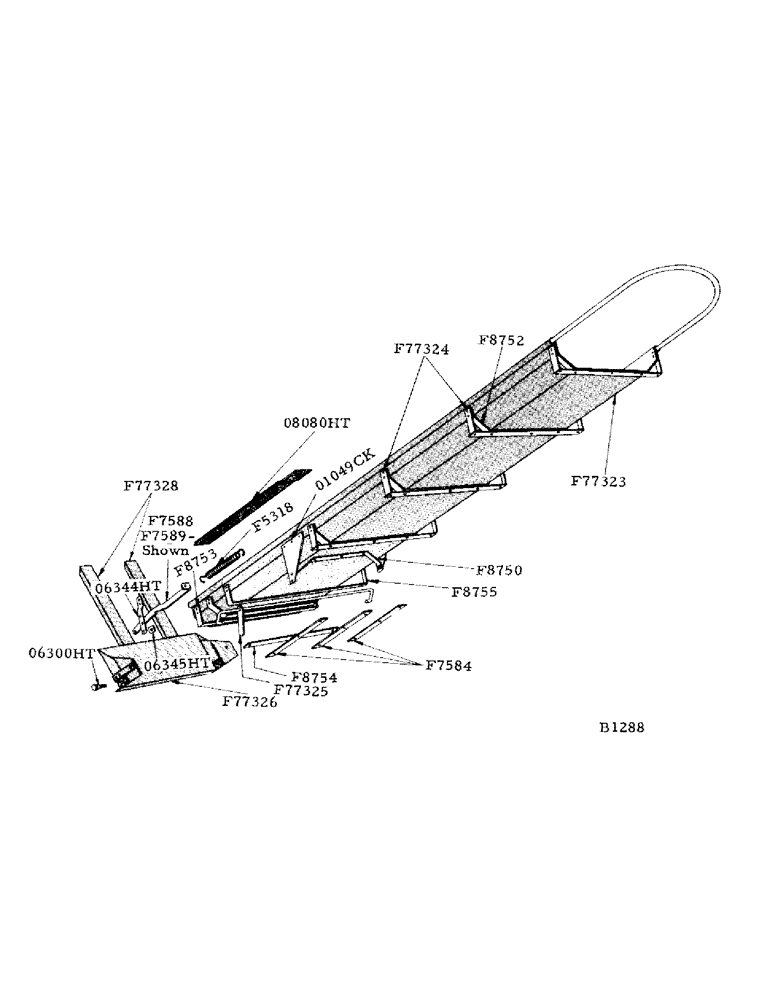

Запчасти Case IH 800 (114) - BAGGING PLATFORM ATTACHMENT, BAG CHUTE (80) - CROP STORAGE/UNLOADING

F5318

SPRING - end gate

2шт.

F7584

STRAP - reinforcement, lower end

3шт.

1/4" x 1-1/4" N.C. flat hd. mach. screw w/hex. nut and lockwasher

6шт.

F7588

STRAP - gage latch, R.H.

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F7589

STRAP - gate latch, L.H.

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F8750

BRACE - gate spring retainer

1шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

3шт.

F8752

STRAP - reinforcement

5шт.

3/8" x 1-1/2" N.C. flat hd. mach. screw w/hex. nut and lockwasher

29шт.

F8753

STRAP - reinforcement, lower end (vertical)

1шт.

1/4" x 3/4" ctsk. hd. rivet

4шт.

F8754

FILLER - lower end

1шт.

F8755

REINFORCEMENT - latch bracket

1шт.

1/4" x 1" N.C. flat hd. mach, screw w/hex. nut and lockwasher

3шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

1/2" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77323

CHUTE - bag

1шт.

F77324

ANGLE - reinforcement (beneath chute floor)

4шт.

3/8" x 1" rd. hd. rivet

8шт.

F77325

TRIP - gate latch, with lever

1шт.

1/8" x 1" cotter pin

1шт.

F77326

END GATE - bag chute

1шт.

7/16" x 1" carr. bolt w/hex. nut, lockwasher and plain washer

2шт.

F77328

EXTENSION - bag chute end gate

2шт.

3/8" x 1-3/4" carr. bolt w/hex. nut and lockwasher

2шт.

3/8" x 2" carr. bolt w/hex. nut and lockwasher

2шт.

01049CK

RETAINER - gate spring

2шт.

1/4" x 1/2" carr. bolt w/hex. nut and lockwasher

6шт.

5/16" x 3/4" N.F. hex. bolt w/hex, nut and lockwasher

2шт.

0437HT

SPACER - end gate latch strap (F7588 and F7589) not shown

2шт.

06300HT

PIN - end gate

2шт.

1/2" N.C. hex. nut and lockwasher

2шт.

06344HT

BRACKET - end gate latch

2шт.

1/4" x 1" N.C. flat hd. mach. screw w/hex. nut and lockwasher

4шт.

06345HT

SPACER - end gate latch bracket

2шт.

08080HT

BELTING - bag chute floor

1шт.

1/4" x 3/4" carr. bolt w/hex, nut, lockwasher and plain washer

1шт.
