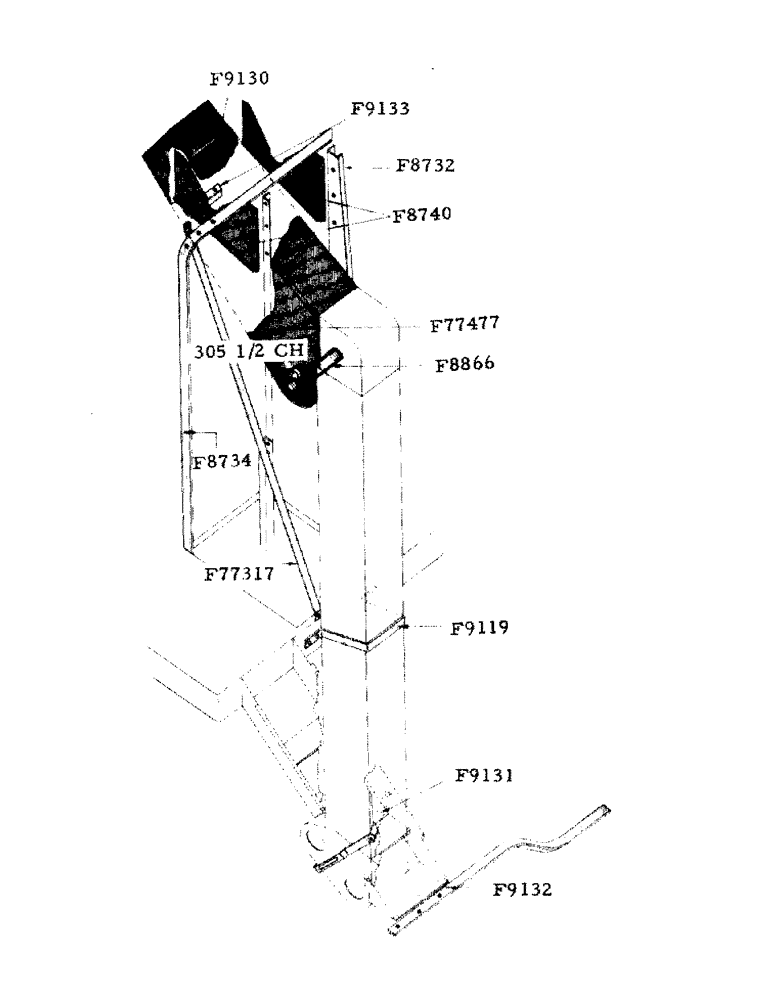

Запчасти Case IH 800 (113) - GRAIN ELEVATOR SUPPORTS, BAGGING PLATFORM (80) - CROP STORAGE/UNLOADING

F8732

CHANNEL - support, rear panel

1шт.

F8734

ANGLE - elevator support

1шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F8740

SUPPORT - cross auger

2шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F8866

CHAIN - inlet elevator drive (use 1-B12486 chain and 3-B12488 chain #2040 roller chain) see chain page

1шт.

F9119

BAND - grain elevator

1шт.

5/16" x 7-3/4" N.F. rd. hd. bolt w/hex. nut and lockwasher

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9130

DOOR - inlet elevator

1шт.

1/4" x 1/2" N.C. hex. bolt w/lockwasher and plain washer

6шт.

F9131

BRACE - elevator sump support

1шт.

F9132

ANGLE - ladder support (standard equipment)

1шт.

F9133

CLIP - elevator support angle

1шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77317

SCREW

BRACE - elevator support angle

1шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77477

HOUSING - inlet elevator

1шт.

5/16" x 1/2" carr. bolt w/hex. nut and lockwasher

4шт.

305-1/2CH

TIGHTENER - drive chain, cross auger

1шт.

3/8" x 3-1/4" N.C. rd. hd. sq. neck bolt w/hex. nut, lockwasher and plain washer

1шт.
