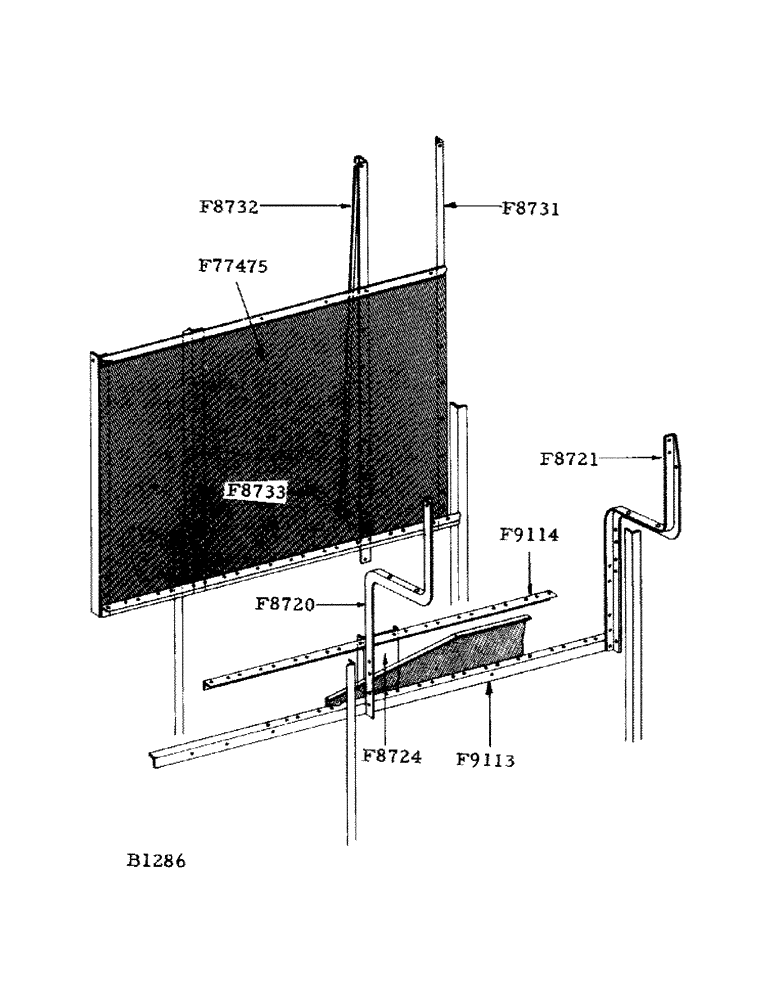

Запчасти Case IH 800 (112) - BAGGING PLATFORM SUPPORTS (80) - CROP STORAGE/UNLOADING

F8720

POST - seat (1 R.H. and 2 center)

3шт.

5/16" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

5шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

7/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F8721

POST - seat, L.H.

1шт.

7/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F8724

CHANNEL - floor support

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F8731

POST - rear panel, L.H.

1шт.

7/16" x 1" N.F. hex. bolt w/hex, nut and lockwasher

4шт.

1/4" x 1/2 N.F. hex. bolt w/hex. nut and lockwasher

5шт.

3/8" x 3/4" N.F. hex. bolt w/hex, nut and lockwasher

2шт.

F8732

CHANNEL - support, rear panel

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

1/4" x 1/2" N.F. hex. bolt w/hex, nut and lockwasher

6шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F8733

ANGLE - brace, from rear panel support to front engine support

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F9113

ANGLE - floor support, front

1шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F9114

ANGLE - floor support, center

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77475

PANEL - rear

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

7/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

4шт.
