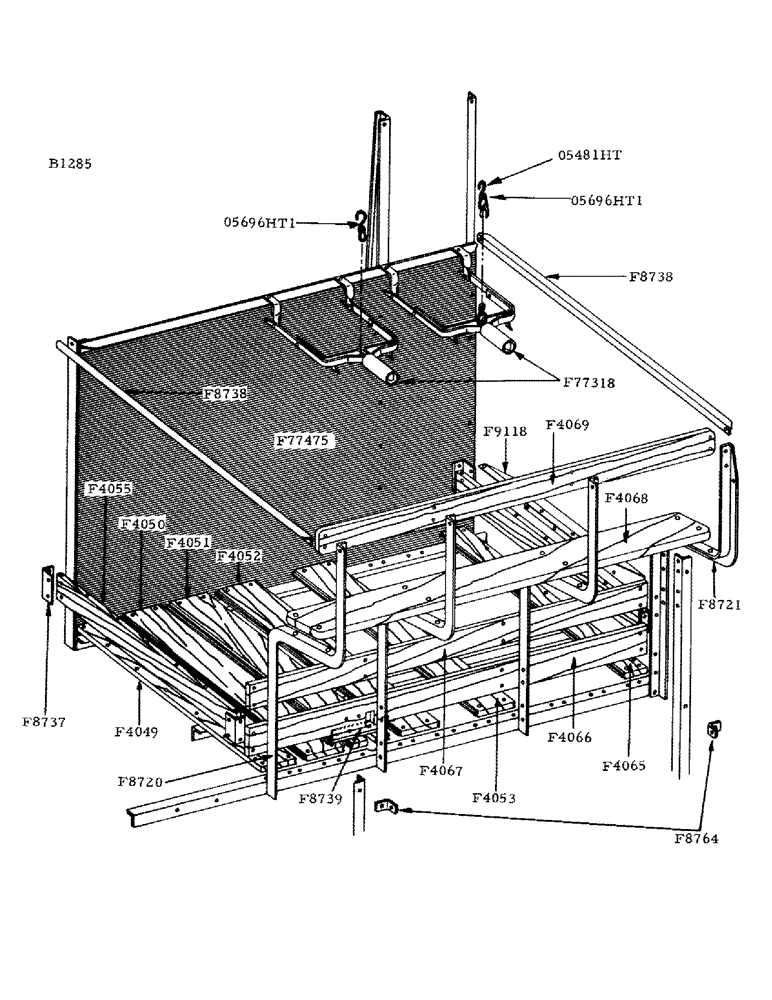

Запчасти Case IH 800 (110) - BAGGING PLATFORM (80) - CROP STORAGE/UNLOADING

F4049

BOARD - floor, R.H. end

1шт.

1/4" x 1-1/2" carr. bolt w/hex. nut and lockwasher

4шт.

1/4" x 1-1/2" N.C. flat hd. mach. screw w/hex. nut and lockwasher

2шт.

F4050

BOARD - floor, #2 from R.H. end

1шт.

1/4" x 1-1/2" carr. bolt w/hex. nut and lockwasher

4шт.

1/4" x 1-1/2" N.C. flat hd. mach. screw w/hex, nut and lockwasher

2шт.

F4051

BOARD - floor, #3 from R.H. end

1шт.

1/4" x 1-1/2" carr. bolt w/hex. nut and lockwasher

4шт.

1/4" x 1-1/2" N.C. flat hd. mach. screw w/hex. nut and lockwasher

2шт.

F4052

BOARD - floor, #4 from R.H. end

1шт.

1/4" x 1-1/2" carr. bolt w/hex. nut and lockwasher

4шт.

1/4" x 1-1/2" N.C. flat hd. mach. screw w/hex. nut and lockwasher

2шт.

F4053

BOARD - floor, center

6шт.

1/4" x 1-1/2" carr. bolt w/hex. nut and lockwasher

24шт.

1/4" x 1-1/2" N.C. flat hd. mach. screw w/hex. nut and lockwasher

12шт.

F4055

BOARD - side

2шт.

1/4" x 5-1/4" carr. bolt w/hex. nut, flat washer and lockwasher

10шт.

1/4" x 5-1/2" carr. bolt w/hex. nut and lockwasher

4шт.

5/16" x 1-1/2" carr. bolt w/hex. nut and lockwasher

8шт.

F4065

BOARD - floor, L.H. end

1шт.

1/4" x 1-1/2" carr. bolt w/hex. nut and lockwasher

2шт.

1/4" x 1-1/2" N.C. flat hd. mach. screw w/hex. nut and lockwasher

2шт.

F4066

BOARD - grain, front

1шт.

5/16" x 1-1/2" carr. bolt w/hex. nut and lockwasher

3шт.

F4067

BOARD - foot rest

1шт.

1/4" x 1-1/2" carr. bolt w/hex. nut and lockwasher

8шт.

F4068

BOARD - seat

1шт.

3/8" x 2" carr. bolt w/hex. nut and lockwasher

8шт.

F4069

REST - back

1шт.

3/8" x 1-1/2" carr. bolt w/hex. nut and lockwasher

8шт.

F8720

POST - seat support (1-R.H. and 2-center) see bagging platform supports

3шт.

F8721

POST - seat support, L.H. (see platform supports)

1шт.

F8737

CLIP - corner, grain board

4шт.

5/16" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

F8738

RAIL - hand

2шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F8739

COVER - for cylinder speed control chain

1шт.

1/4" x 1-1/4" carr. bolt w/hex. nut, lockwasher and plain washer

7шт.

5/16" x 1-1/2" carr. bolt w/hex. nut and lockwasher

1шт.

F8764

CLIP - for cylinder speed control crank

2шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

2шт.

F9118

SHIELD - foot (800 combines only)

1шт.

F77318

HOLDER - sack

2шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F77475

PANEL - rear

1шт.

05696HT1

CHAIN - for F77318 sack holder

2шт.

05481HT

HOOK - for 05696HT1 chain

2шт.
