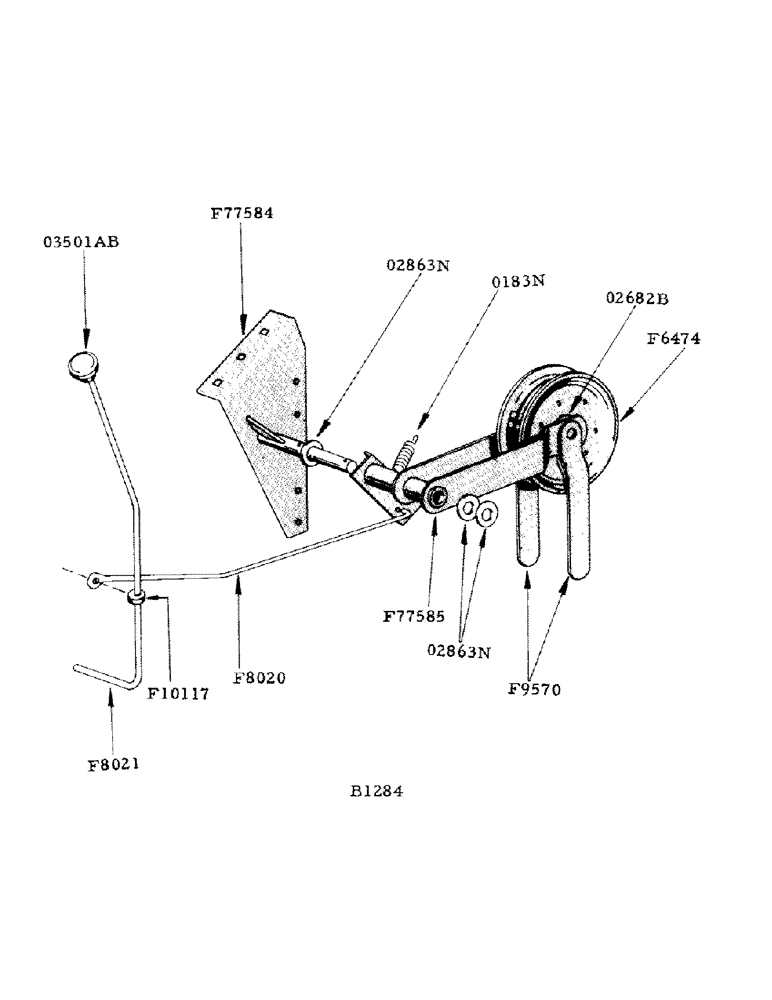

Запчасти Case IH 800 (109) - GRAIN BIN JACKSHAFT DRIVE TIGHTENER (80) - CROP STORAGE/UNLOADING

F6474

PULLEY

SHEAVE (7" O.D.) tightener (flat groove)

1шт.

5/8" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F8020

ROD - belt tightener

1шт.

3/32" x 1/2" cotter pin

1шт.

F8021

LEVER - unloading

1шт.

1/8" x 3/4" cotter pin

2шт.

F9570

GUIDE - belt, grain bin jackshaft drive (02180CK)

2шт.

F10117

COLLAR - adjusting, for F8021 unloading lever

1шт.

F77584

BRACKET - grain bin support, rear L.H.

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

3шт.

F77585

PIVOT - tightener sheave

1шт.

03501AB

KNOB - control (hard rubber or Bakelite)

1шт.

02682B

WASHER - (1-3/8" O.D. x 21/32" I.D. #14 ga.) spacer for F6474 sheave

2шт.

0183N

SPRING - tension, for F77585 pivot assembly

1шт.

02863N

WASHER - (1-3/8" O.D. x 27/32" I.D. #14 ga.) pivot shaft

3шт.
