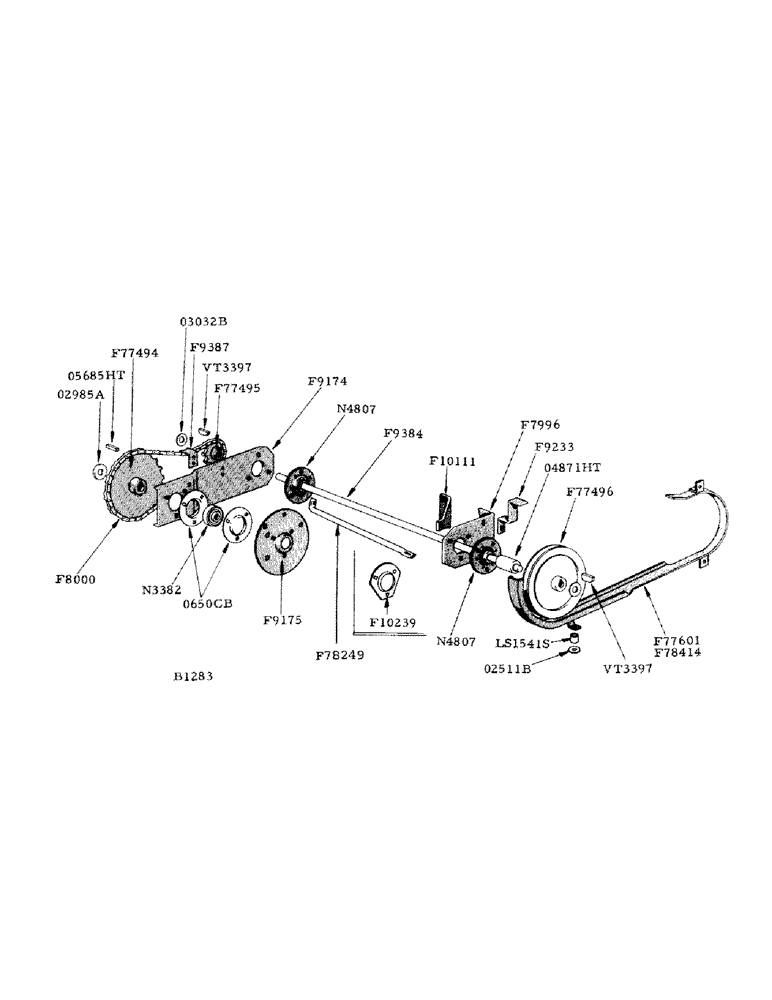

Запчасти Case IH 800 (108) - GRAIN BIN AUGER DRIVE JACKSHAFT (80) - CROP STORAGE/UNLOADING

F7996

BRACKET - jackshaft bearing, L.H.

1шт.

3/8" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F8000

CHAIN - grain bin auger drive (use 1-B12474 chain, 1-B12475 chain and 2-B12477 chain #50 roller)

1шт.

F9174

BRACKET - R.H. bearing, for jackshaft and grain bin auger

1шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

3шт.

5/16" x 5/8" carr. bolt w/hex. nut and lockwasher

2шт.

F9175

SHIELD - dust, for N3382 bearing (before no. 8179101) inside grain bin (see F10239)

1шт.

F9233

BELT GUIDE - top, for discharge auger drive belt

1шт.

5/16" x 1-1/4" N.F. hex. nut and lockwasher

1шт.

5/16" plain washer

2шт.

F9384

JACKSHAFT - grain bin auger drive

1шт.

F9387

GUIDE - chain, grain bin auger drive chain

1шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

2шт.

F10111

BRACE - for F7996 bracket

1шт.

F10239

SHIELD - dust, for N3382 bearings (after no. 8179101) inside grain bin (see F9175)

1шт.

F77494

SPROCKET (45T) grain bin auger drive, driven

1шт.

F77495

SPROCKET (16T) drives grain bin auger

1шт.

1/8" x 1-1/2" cotter pin

1шт.

F77496

SHEAVE (12" O.D. approx.) drives F9189 jackshaft (L.H. end)

1шт.

1/8" x 1-1/2" cotter pin

1шт.

F77601

BELT GUIDE - lower, for discharge auger drive belt (before no. 8179101) see F78414

1шт.

5/16" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut, lockwasher and plain washer

2шт.

F78249

BRACE - for auger shaft

1шт.

5/16" x 1-1/4" carr. bolt w/hex. nut and lockwasher

1шт.

1/4" x 7/8" N.F. hex. bolt w/hex. nut

1шт.

F78414

BELT GUIDE - lower, for discharge auger drive belt (after no. 8179101) will replace F77601 when those stocks are exhausted

1шт.

1/4" x 1" carr. bolt w/hex. nut and 02511B washer

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

N3382

BALL BEARING

BEARING (Fafnir #RA103PPB w/N3384 collar) R.H. end of grain bin auger shaft

1шт.

N4807

X

BEARING (Aetna #AG-1100) for F9384 jackshaft

2шт.

5/16" x 7/8" carr. bolt w/hex. nut and lockwasher

6шт.

02985A

WASHER (1-9/16" O.D. x 25/32" I.D. #12 ga.) R.H. end grain bin auger shaft

1шт.

VT3397

KEY (#15 Woodruff) F77495 and F77496 sheave

2шт.

02511B

WASHER (1" O.D. x 9/32" I.D. #16 ga.) for belt guide F78414

1шт.

03032B

WASHER (1-5/8" O.D. x 1/32" I.D. #16 ga.) R.H. end of F9384 jackshaft

2шт.

0650CB

FLANGE - for N3382 bearing

2шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

3шт.

02180CK

"V" BELT - drives grain bin auger drive jackshaft

1шт.

04871HT

SPACER - (1" pipe x 1-7/8") L.H. end of F9384 jackshaft

1шт.

05685HT

KEY (1-1/2" x 5/16") for F77494 sprocket

1шт.

LS1541S

SPACER - for F78414 belt guide

1шт.
