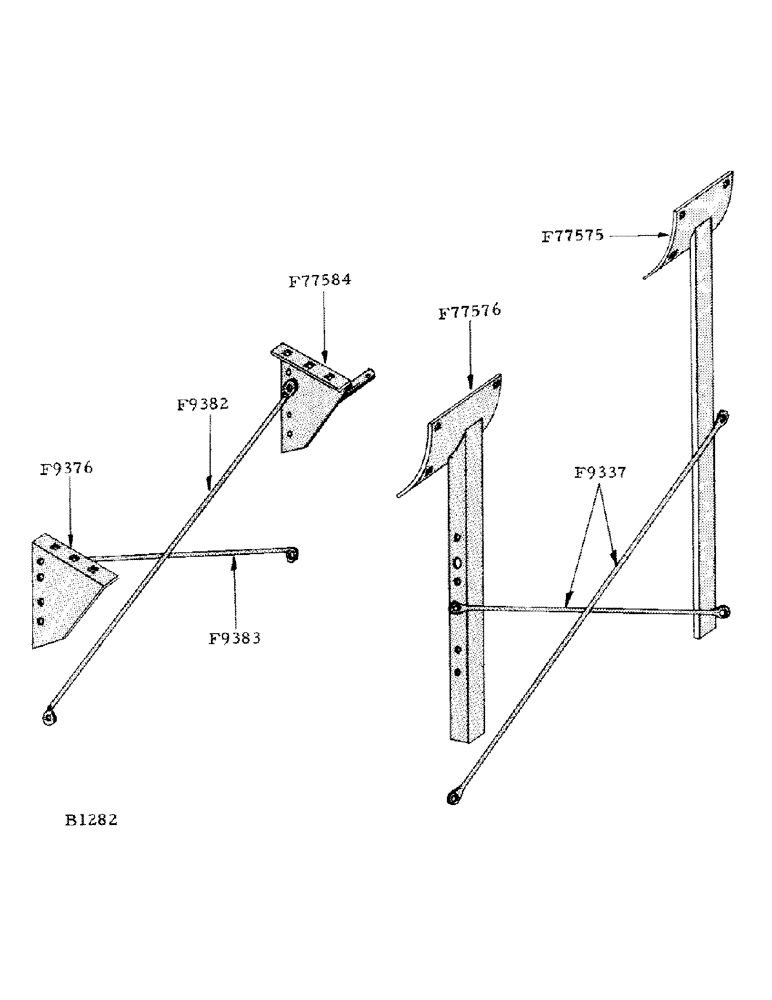

Запчасти Case IH 800 (107) - GRAIN BIN SUPPORTS (80) - CROP STORAGE/UNLOADING

F9337

BRACE - upper tension, front cylinder posts

2шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F9376

SUPPORT - rear grain bin, R.H.

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

3шт.

F9382

BRACE - cross, from lower R.H. cylinder post to top L.H. cylinder post

1шт.

7/16" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F9383

BRACE - cross, from top, R.H. cylinder post to bottom L.H. cylinder post

1шт.

7/16" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F77575

SUPPORT - front grain bin, L.H.

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

4шт.

F77576

SUPPORT - front grain bin, R.H.

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

3шт.

F77584

SUPPORT - rear grain bin, L.H.

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

3шт.
