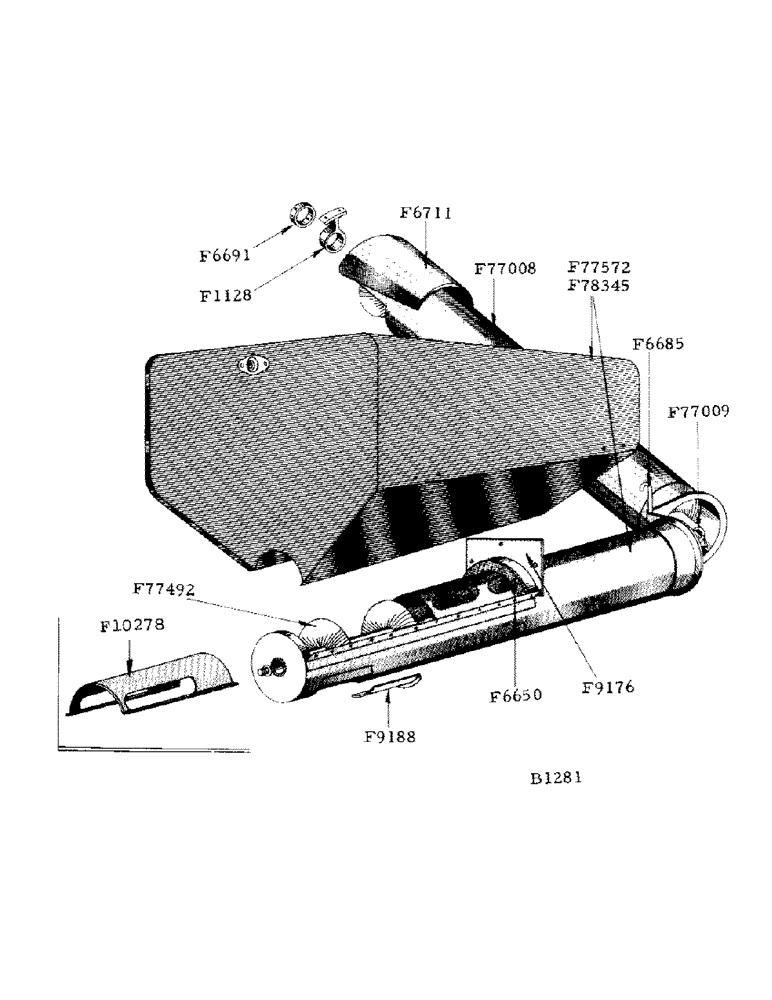

Запчасти Case IH 800 (106) - GRAIN BIN AND AUGER (80) - CROP STORAGE/UNLOADING

F6650

SEAL - felt

1шт.

F9176

BRACKET - grain bin auger support

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

3шт.

F9188

DOOR

- clean out

1шт.

F10278

COVER - grain bin auger (for machines built before no. 8160601)

1шт.

F77492

AUGER - grain bin

1шт.

F77494

SPROCKET (45T) GRAIN BIN AUGER DRIVE, driven (see grain bin auger drive jackshaft)

1шт.

F77572

GRAIN BIN - (When these stocks are exhausted use F78345)

1шт.

F78345

GRAIN BIN - replaces F77572 when those stocks are exhausted

1шт.

1/4" x 5/8" carr. bolt w/hex. nut and lockwasher

6шт.

F1128

HANGER - for discharge auger, grain bin

1шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut, lockwasher and plain washer, grain bin, discharge auger

2шт.

F6685

PIN - hinge, grain bin, discharge auger

1шт.

F6691

COLLAR - discharge auger, grain bin

1шт.

1/4" x 3-1/8" mitre end cotter pin, grain bin, discharge auger

2шт.

F6711

SPOUT - discharge auger, grain bin

1шт.

3/8" x 1" N.F. hex. bolt w/double hex. nut, grain bin, discharge auger

2шт.

F77008

TUBE - discharge auger, grain bin

1шт.

F77009

SCREW

AUGER - discharge, grain bin

1шт.

F77283

BRACE - for grain bin discharge auger tube (not shown) see operator's platform

1шт.

3/8" x 2" N.F. hex. bolt w/hex. nut and lockwasher, grain bin, discharge auger

2шт.

3/8" plain washer, grain bin, discharge auger

6шт.
