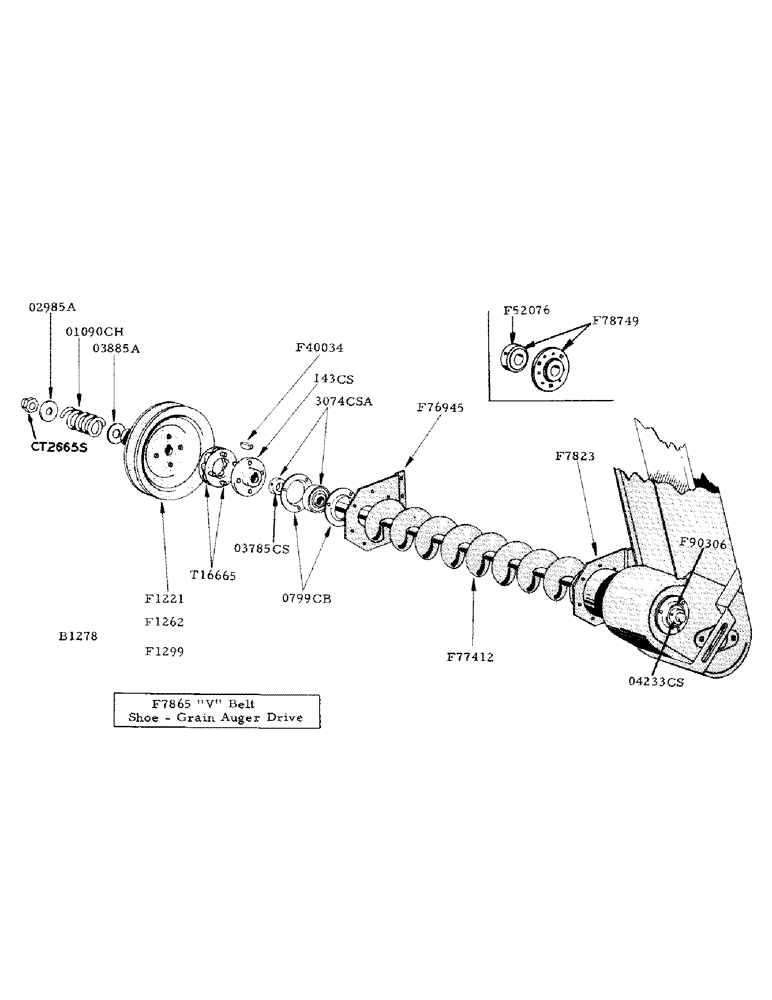

Запчасти Case IH 800 (102) - GRAIN AUGER (80) - CROP STORAGE/UNLOADING

F1221

SHEAVE - double (9-3/4" and 8-21/32" O.D.) drives grain auger 366 RPM (also drives fan) see F1262

1шт.

F1262

SHEAVE - double (9-3/4" and 5-3/32") drives grain auger and fan (slow fan speed attach.)

1шт.

F7823

FLANGE - grain auger trough, L.H. side

1шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

1шт.

F8982

TROUGH - grain auger (not shown) see page 99

1шт.

F40034

KEY

("A" Woodruff) 143CS plate and F76947 sprocket

2шт.

F52076

COLLAR

- for F78749 bearing

1шт.

F76945

PLATE - for 3074CSA, R.H. end

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

3шт.

F76947

SPROCKET (15T) grain elevator drive, L.H. end (not shown) see grain elevator

1шт.

F77412

AUGER - grain

1шт.

F78749

COLLAR

BEARING (Aetna #AG-1014-4 w/F52076 collar) for L.H. end grain auger shaft (after no. 8179751) see F90306

1шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-014PPB w/04233CS) for L.H. end grain auger shaft (before no. 8179751) see F78749

1шт.

T16665

RING - clutch, (01151CS may be used)

2шт.

02985A

WASHER (1-9/16" O.D. x 25/32" I.D. #12 ga.) clutch spring, outer

1шт.

03885A

WASHER (1-1/2" O.D. x 29/32" I.D. #12 ga.) clutch spring, inner

1шт.

0799CB

FLANGE - for F90306 and 3074CSA bearing

4шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

6шт.

01090CH

SPRING - jump clutch

1шт.

143CS

PLATE

- hub, jump clutch

1шт.

03785CS

COLLAR - for 3074CSA bearing

1шт.

04233CS

COLLAR - for F90306 bearing

1шт.

3074CSA

BALL BEARING

- (Fafnir #RA100PPB w/03785CS) R.H. end of grain auger shaft

1шт.

CT2665S

X

NUT (3/4" - 16N.F. ESNA nut #49-NTE-126) for grain auger shaft

1шт.
