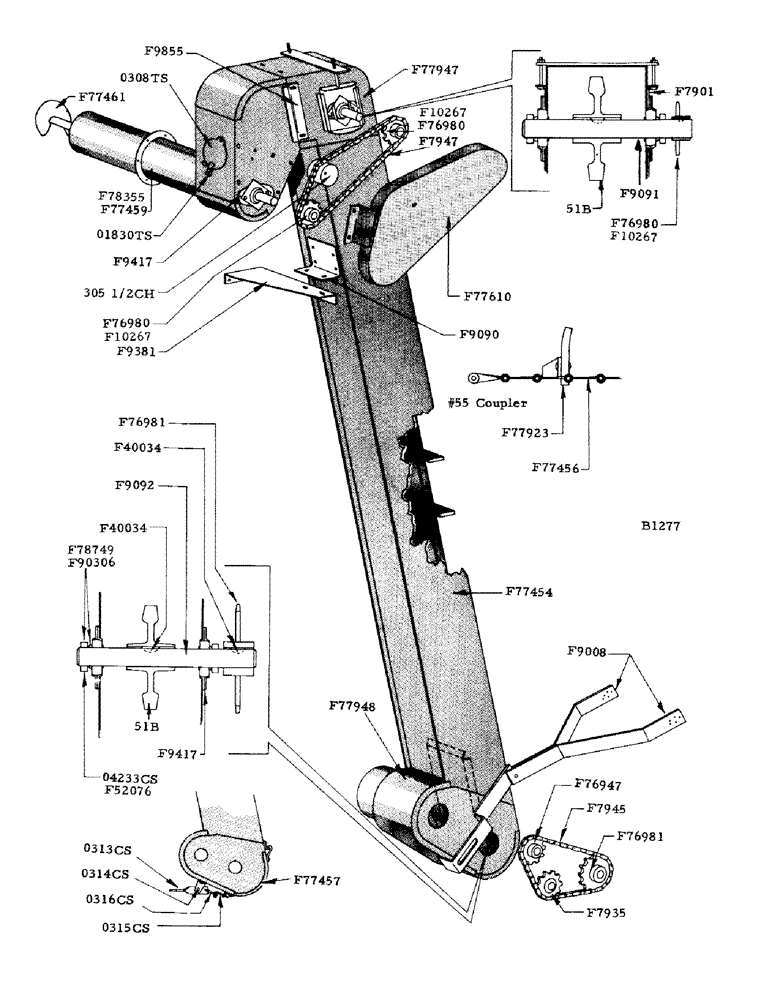

Запчасти Case IH 800 (100) - GRAIN ELEVATOR (80) - CROP STORAGE/UNLOADING

F7901

BRACKET - adjustment for upper elevator shaft

2шт.

5/16" x 4-1/4" N.C. hex. bolt (3-1/2" thrd.) w/dbl. hex. nut

2шт.

F7935

SPROCKET ASSY.

SPROCKET - (18T) tightener, elevator drive

1шт.

5/8" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/8" plain washer

3шт.

F7945

X

CHAIN - grain elevator drive (use 2-B12471 chain and 1-B12473 #40 roller chain)

1шт.

F8734

ANGLE - elevator support (bagging platform attachment only)

1шт.

F9008

STRAP - grain elevator support

1шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9090

BRACKET - elevator support

1шт.

5/16" x 1/2" carr. bolt w/hex. nut and lockwasher

4шт.

F9091

SHAFT - upper head

1шт.

F9092

SHAFT - lower head

1шт.

F9119

BAND - grain elevator support (bagging platform attach.)

1шт.

F9131

STRAP - elevator sump support (bagging platform attach.)

1шт.

F9133

CLIP - for F8734 elevator support angle (bagging platform attach.)

1шт.

F9381

BRACKET - grain elevator support

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F9417

FLANGE

- for F90306 bearing

8шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

8шт.

F9855

SEAL - upper elevator head

2шт.

F10267

SPROCKET (13T) distribution auger drive (replaces F76980 when those stocks are exhausted)

2шт.

F40034

KEY

("A" Woodruff) for 51B, F10267 and F76981 sprockets

4шт.

F52076

COLLAR

- for F78749 bearing

4шт.

F76947

SPROCKET (15T) on grain auger shaft, drives elevator

1шт.

3/16" x 2" cotter pin

1шт.

F76980

SPROCKET (13T) distribution auger drive (use F10267 when these stocks are exhausted)

1шт.

F76981

SPROCKET (22T) elevator drive, driven (on F9092 lower shaft)

1шт.

F77317

SCREW

BRACE - elevator support (bagging attach. only)

1шт.

F77454

BODY - elevator

1шт.

F77456

X

CHAIN AND FLIGHTS (includes 36 - #55 steel chain plain links, 1 - #55 coupler link and 38 - F77923 flights)

1шт.

F77457

COVER - lower head

1шт.

F77923

RUBBER FLIGHT

FLIGHT - grain elevator chain (includes 1-F9727 flight, 1-#55 SH attach. link and 2 - #55 steel links)

1шт.

1/4" x 12/16" semi-tubular rivets

76шт.

F77947

HEAD - upper, elevator body

1шт.

F77948

HEAD - lower, elevator body

1шт.

F78749

COLLAR

BEARING AND FLANGE (Aetna #AG-1014-4) standard after no. 8179751 (will replace F90306 on earlier machines)

4шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-014PPB w/04233CS collar) 2-for upper shaft and 2-for lower shaft (before no. 8179751) see F78749

4шт.

51B

SPROCKET ASSY.

SPROCKET (7T) elevator chain, upper and lower shaft

2шт.

3/16" x 2" cotter pin

2шт.

0313CS

HANDLE - latch, lower head cover

1шт.

3/16" x 5/8" rd. hd. rivet

1шт.

0314CS

BRACKET - for latch handle 0313CS

2шт.

0315CS

HOOK - latch, lower head cover

1шт.

0316CS

SPRING - linkage, for 0313CS latch handle

1шт.

04233CS

COLLAR - for F90306 bearing

4шт.

F7947

CHAIN - auger over grain bin drive (use 1-B12470 chain, 1-B12472 chain, 1-B12473 chain, 1-B12501 conn. link, 1-B12502 offset link and 1-B12503 roller link #40 roller chain) see chain page

1шт.

F9417

FLANGE

- for F90306 bearing, auger over grain bin

4шт.

F10267

SPROCKET - (15T) auger over grain bin drive (replaces F76980)

1шт.

F52076

COLLAR

- for F78749 bearing, auger over grain bin

2шт.

F76980

SPROCKET (13T) auger over grain bin drive (use F10267 when these stocks are exhausted) stocks are exhausted)

1шт.

F77461

AUGER - distribution, over grain bin

1шт.

F77610

SHIELD - chain, for distribution auger drive, over grain bin

1шт.

1/4" x 1/2" N.C. rd. hd. mach screw and lockwasher, auger over grain bin

4шт.

F78355

SPOUT AND TUBE, distribution auger (replaces F77459), over grain bin

1шт.

F78749

COLLAR

BEARING AND FLANGE (Aetna #AG-1014-4) standard after no. 8179751 (see F90306), auger over grain bin

2шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-14PPB w/04233CS) both ends of F77461 auger (before no. 8179751) see F78749, over grain bin

2шт.

305-1/2CH

IDLER - discharge auger drive (wood block), over grain bin

1шт.

04233CS

COLLAR - for F90306 bearing, auger over grain bin

2шт.

0308TS

COVER - hand hole, spout and tube, auger over grain bin

1шт.

01830TS

CLIP - for hand hole cover, auger over grain bin

1шт.
