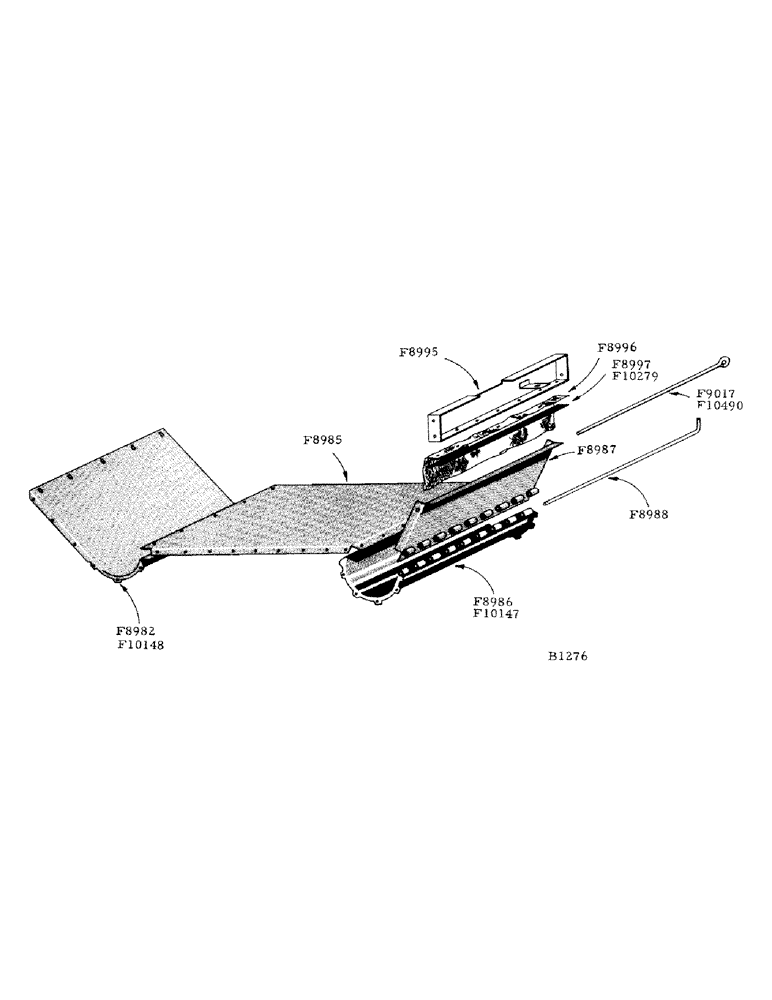

Запчасти Case IH 800 (099) - GRAIN FLOOR (80) - CROP STORAGE/UNLOADING

F8982

TROUGH - grain auger (regular) see F10148

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut, lockwasher and plain washer

12шт.

F8985

FLOOR - grain

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex., nut. lockwasher and plain washer

11шт.

F8986

TROUGH - tailings auger (regular) see F10147

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut, lockwasher and plain washer

6шт.

F8987

PANEL - hinged, tailings auger

1шт.

F8988

ROD - hinge, for trough and panel

1шт.

F8995

MEMBER - rear cross, for shoe

1шт.

F8996

CANVAS - shoe, rear seal between panel and member

1шт.

F8997

STIFFENER - shoe canvas (before no. 8179101) when stocks are exhausted use F10279

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

3шт.

F9017

ROD - hinge, for F8996 canvas (before no. 8179751) see F10490

1шт.

1/8" x 3/4" cotter pin

1шт.

F10279

SITFFENER - for F8996 (after no. 8179101) will replace F8997 when those stocks are exhausted

1шт.

F10490

ROD - hinge, for F8996 canvas (after no. 8179751) replaces F9017 when those stocks are exhausted

1шт.

F10147

TROUGH - tailings auger, perforated (see F8986), and floor attachment

1шт.

F10148

TROUGH - grain auger, perforated (see F8982), and floor attachment

1шт.

F78823

FLOOR - access, conveyor rake (see F77979), perforated, and trough attachment

1шт.
