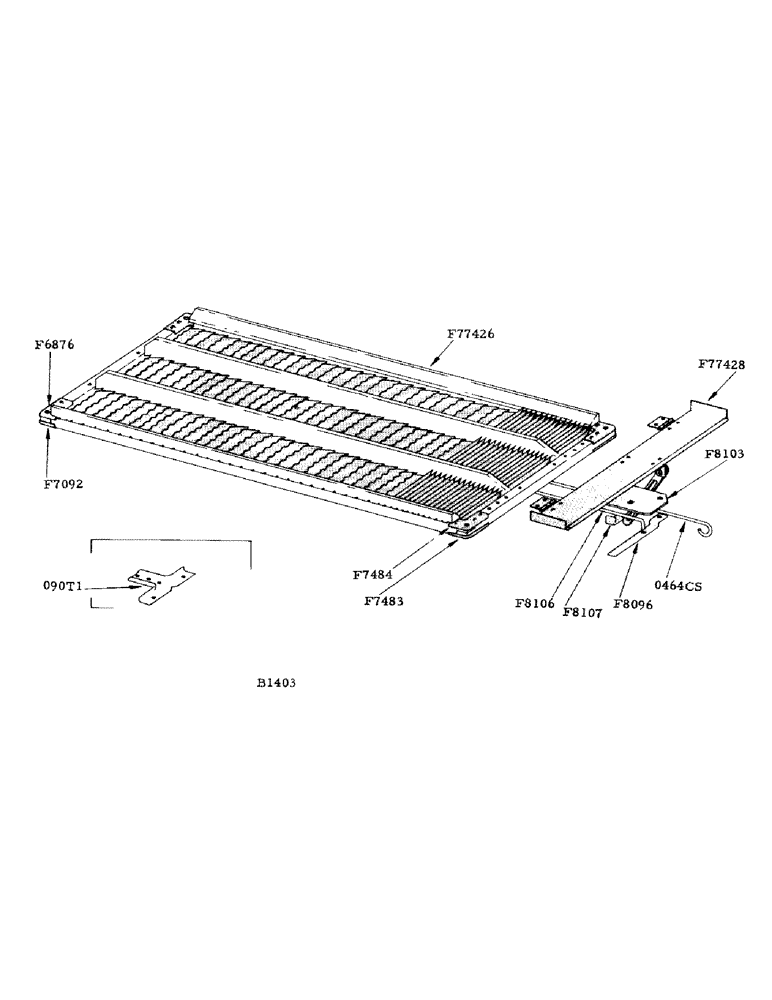

Запчасти Case IH 800 (098) - CONVEYOR SIEVE (74) - CLEANING

F6876

BRACKET - front corner, R.H. upper and L.H. lower

2шт.

3/16" x 1-1/8" W.B. hd. rivet

2шт.

3/16" x 1-1/2" W.B. hd. rivet

2шт.

F7092

BRACKET - front corner, L.H. upper and R.H. lower

2шт.

3/16" x 1-1/8" W.B. hd. rivet

2шт.

3/16" x 1-1/2" W.B. hd. rivet

2шт.

F7483

BRACKET - rear corner, upper R.H. and lower L.H.

2шт.

3/16" x 1-1/8" W.B. hd. rivet

2шт.

3/16" x 1-1/2" W.B. hd. rivet

2шт.

F7484

BRACKET - rear corner, lower R.H. and upper L.H.

2шт.

3/16" x 1-1/8" W.B. hd. rivet

2шт.

3/16" x 1-1/2" W.B. hd. rivet

2шт.

F8103

BRACKET - guide, for adjustment rod

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F8096

LEVER - adjusting, conveyor sieve

1шт.

5/16" x 3/4" N.F. hex. bolt

1шт.

F8106

ROD

- adjusting, front section conveyor sieve

1шт.

3/32" x 5/8" cotter pin

1шт.

F8107

CLAMP - adjusting rod

1шт.

5/16" x 1-1/4" carr. bolt w/lockwasher and wing nut

1шт.

F77426

SIEVE - conveyor (chaffer) complete, less tail gate

1шт.

F77428

GATE - tail, conveyor sieve

1шт.

G-131-3

LOCKNUT (5/16" -24 ESNA #29E-054) for F8096 lever (not shown)

1шт.

0464CS

ROD - adjusting, conveyor sieve, rear section for tailings

1шт.

3/32" x 5/8" cotter pin

1шт.

090T1

"T" BRACKET - center rail

6шт.

3/16" x 7/8" W.B. hd. rivet

12шт.

3/16" x 1-1/8" W.B. hd. rivet

12шт.
