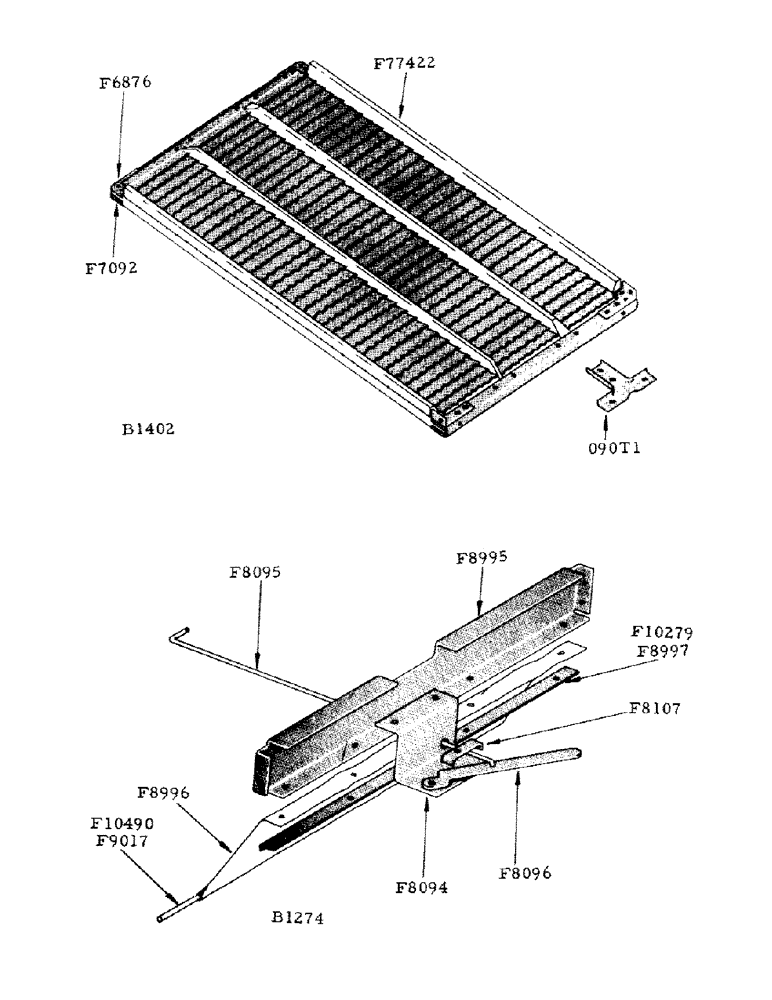

Запчасти Case IH 800 (096) - ADJUSTABLE SHOE SIEVES (74) - CLEANING

F6876

BRACKET - corner, bottom for L.H. front and R.H. rear corners, top bracket for R.H. front and L.H. rear corners

4шт.

3/16" x 1-1/8" W.B. hd. rivet

4шт.

3/16" x 1-1/2" W.B. hd. rivet

4шт.

F7092

BRACKET - corner, bottom bracket for R.H. front and L.H. rear corners, top bracket for L.H. front and R.H. rear corners

4шт.

F77422

SIEVE - adjustable shoe (cleaning) includes adjustment brackets and rods

1шт.

090T1

"T" BRACKET - center rail

6шт.

F8094

BRACKET - adjustment, shoe sieve

1шт.

F8095

ROD - adjusting, shoe sieve

1шт.

F8096

LEVER - adjusting, shoe sieve

1шт.

5/16" x 3/4" N.F. hex. bolt w/010837AB nut, shoe sieve adjustment

1шт.

F8107

CLAMP - adjusting rod, shoe sieve

1шт.

5/16" x 1-1/4" carr. bolt w/lockwasher and wing nut, shoe sieve adjustment

1шт.

F8995

CROSS MEMBER - rear shoe, sieve adjustment

1шт.

F8996

SEAL - rear shoe, sieve adjustment

1шт.

F8997

STIFFENER - for rear shoe seal (before no. 8179101) see F10279, sieve adjustment

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut and lockwasher, shoe sieve adjustment

3шт.

F9017

ROD - rear shoe seal (before no. 8179751) see F10490, sieve adjustment

1шт.

F10279

STIFFENER - for rear shoe seal (after no. 8179101) replaces F8997, sieve adjustment

1шт.

F10490

ROD - rear shoe seal (after no. 8179751) replaces F9017, sieve adjustment

1шт.

G-131-3

LOCKNUT - (5/16" - 24 ESNA #29E-054) for F8096 lever, shoe sieve adjustment

1шт.
