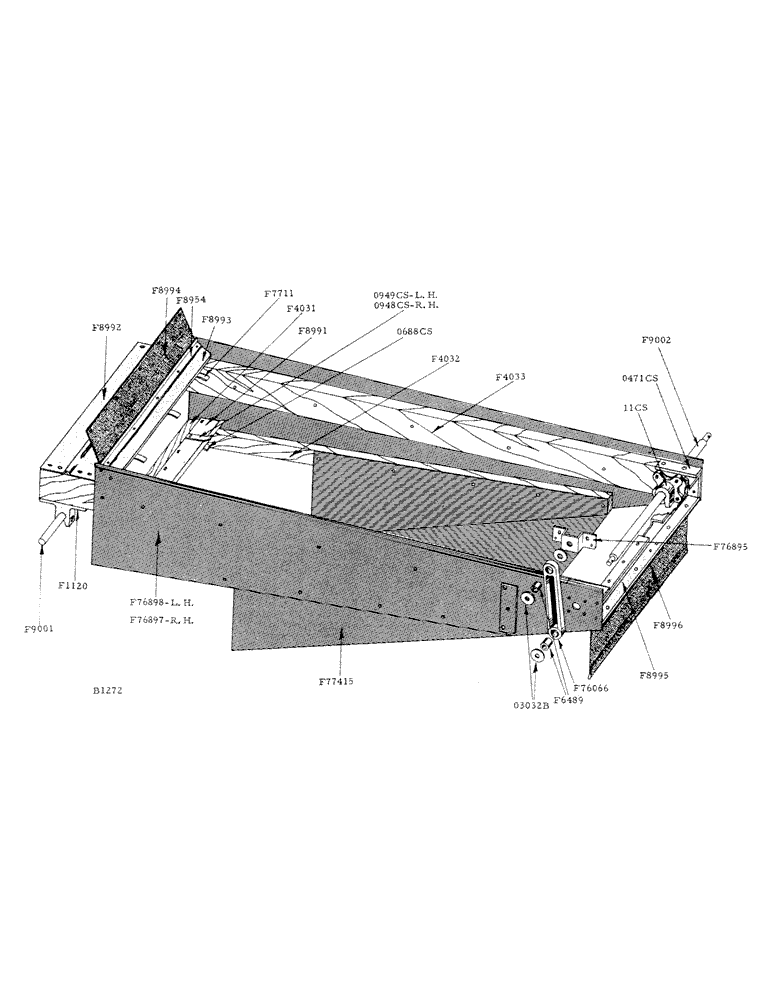

Запчасти Case IH 800 (094) - SHOE (74) - CLEANING

F1120

SUPPORT - front shoe

2шт.

5/16" x 3-1/2" carr. bolt w/V30733 nut

8шт.

3/8" x 2" carr. bolt w/hex. nut and lockwasher

2шт.

F4031

STOP - front, lower sieve support

1шт.

F4032

RAIL - lower sieve support

2шт.

F4033

RAIL - upper sieve support

2шт.

1/4" x 1-3/4" carr. bolt w/hex. nut and plain washer

12шт.

F7711

CLIP - support, upper front (bolt beneath F8992)

3шт.

5/16" x 5/8" N.C. hex. bolt w/V30733 nut

3шт.

F8954

STIFFENER - for F8994 seal

2шт.

1/4" x 3/4" N.C. hex. bolt w/hex. nut and lockwasher

10шт.

F8991

STABILIZER - hold down, for sieve

1шт.

F8992

STOP - front, upper sieve support

1шт.

1/4" x 1/2" N.C. hex. bolt w/hex. nut and lockwasher

4шт.

F8993

PAN - shoe deflector

1шт.

1/4" x 1/2" N.C. hex. bolt w/stop nut

5шт.

F8994

SEAL - shoe, upper front

1шт.

F8995

MEMBER - rear cross, for shoe

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

3шт.

F8996

SEAL - rear shoe

1шт.

F8997

STIFFENER - for canvas (1-for F8996 seal and 2-for F8998 seal (after no. 8179101 only 2 used, 1-for each end of F8998) see F10279

3шт.

F8998

CANVAS - front of shoe to fan (see fan illus.)

1шт.

F9001

SHAFT - front rocker for shoe

1шт.

F9017

ROD - rear shoe seal (before no. 8179751) when these stocks are exhausted use F10490 (see shoe sieve adjustment)

1шт.

1/8" x 3/4" cotter pin

1шт.

F10279

STIFFENER - for F8996 seal (after no. 8179101) replaces F8997

1шт.

F10490

ROD - rear shoe seal (after no. 8179751) will replace F9017 when those stocks are exhausted

1шт.

F76897

SIDE SHEET - R.H., for shoe

1шт.

F76898

SIDE SHEET - L.H., for shoe

1шт.

F77414

SHOE - complete, less bottom

1шт.

F77415

BOTTOM - vibrating floor, for shoe

1шт.

0236CH

WASHER (1-7/8" O.D. #16 ga.) shoe rocker shaft

2шт.

321/2CS

STOP - front, lower sieve support

1шт.

0471CS

STRAP - support, for conveyor sieve, rear F4033 rail

2шт.

1/4" x 2-5/8" ctsk. hd. rivet w/burr

4шт.

0688CS

CLIP - lower sieve support (bottom of 32 1/2CS)

3шт.

5/16" x 1-1/4" carr. bolt w/V30733 nut

3шт.

0948CS

CLIP - upper sieve hold down, R.H. (top of 32 1/2CS)

1шт.

5/16" x 2-1/2" carr. bolt w/V30733 nut

1шт.

0949CS

CLIP - upper sieve hold down, L.H. (top of 32 1/2CS)

1шт.

5/16" x 2-3/4" carr. bolt w/V30733 nut

1шт.

35FG

COLLAR - for F9001 shaft (see rocker arm drive fan shoe)

2шт.

1/4" x 2" cotter pin

2шт.

0340SC

NUT - elastic stop for 1/4" bolts (not shown)

1шт.

V30733

X

NUT - elastic stop (for 5/16" bolts)

1шт.

F6489

BUSHING - for F76066 rocker arm, rear shaft for shoe

4шт.

F9002

SHAFT - rear rocker, for shoe

1шт.

F76066

ARM - rear rocker, for shoe, shaft

2шт.

F76895

BRACKET - rear rocker arm pivot, shaft for shoe

2шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher, rear rocker shaft for shoe

7шт.

1/4" x 1/2" cotter pin, rear rocker shaft for shoe

2шт.

03032B

WASHER (1-5/8" O.D. x 1-1/32" I.D. #16 ga.) rear rocker arms, upper and lower, shaft for shoe

6шт.

11CS

COLLAR - clamp, for F9002 rear rocker shaft for shoe

2шт.

1/4" x 1-3/4" carr. bolt w/0340SC stop nut, rear rocker shaft for shoe

4шт.

3/8" x 2" carr. bolt w/hex. nut and lockwasher, rear rocker shaft for shoe

2шт.
