Запчасти Case IH 800 (092) - ROCKER ARM DRIVE FOR SHOE, STRAWWALKER AND TAILINGS ELEVATOR (74) - CLEANING

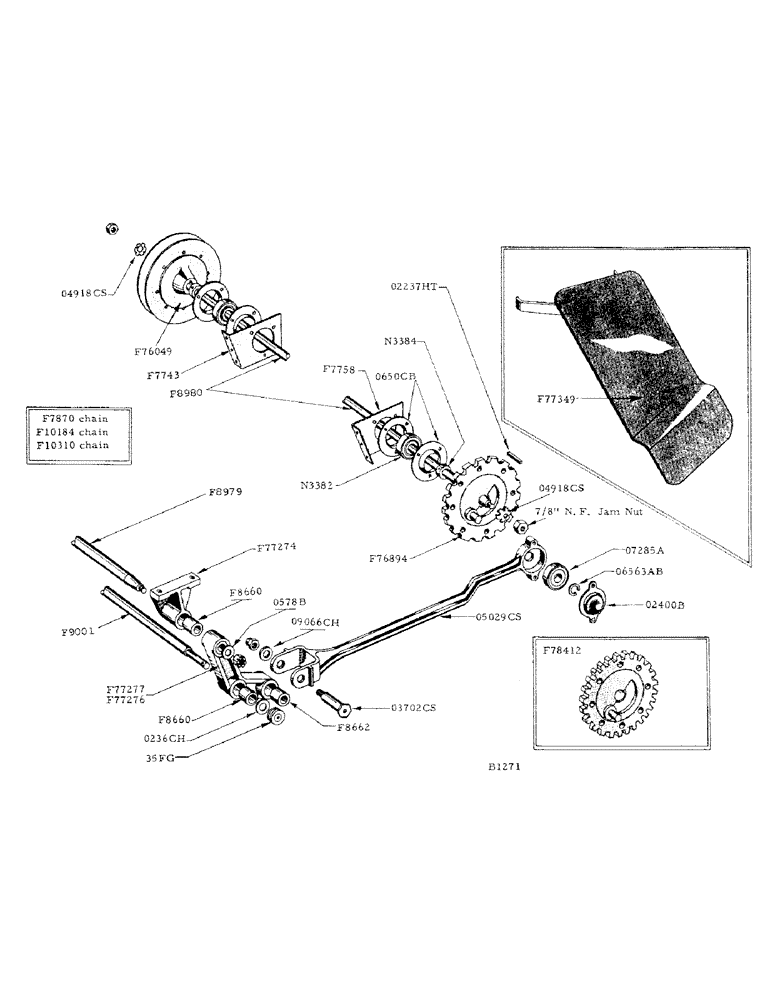

Схема запчастей Case IH 800 - (092) - ROCKER ARM DRIVE FOR SHOE, STRAWWALKER AND TAILINGS ELEVATOR (74) - CLEANING

Артикул

Название

Примечание

Количество

F1238

ARM (use F77726)

1шт.

F1239

HOUSING (use F77274)

1шт.

F1241

ARM (use F77277)

1шт.

F7743

BRACKET - shoe jackshaft support, R.H.

1шт.

5/16" x 3/4" rd. hd. rivet

3шт.

F7758

BRACKET - shoe jackshaft support, L.H.

1шт.

5/16" x 3/4" rd. hd. rivet

3шт.

F8660

X

BUSHING (2" long) 2-for F77274 housing and 1-for F77276 and F77277 arms

4шт.

F8662

BUSHING (1-1/2" long) rocker arms

2шт.

F8979

SHAFT - rocker arm shaft

1шт.

5/8" N.F. hex. slotted nut

2шт.

3/16" x 1-1/4" cotter pin

2шт.

F8980

JACKSHAFT - rocker arm drive for shoe, strawwalker and tailings elevator 5/8" - 18 N.F. ESNA nut #49NE

1шт.

F9001

SHAFT - front rocker for shoe

1шт.

F76049

SHEAVE (14") strawwalker drive, with crank (247RPM)

1шт.

3/8" sq. hd. pipe plug

1шт.

F76894

SPROCKET (20T ext. pitch) drive for shoe, strawwalker and tailings elevator (before no. 8160601) when these stocks are exhausted use F78412

1шт.

F77274

HOUSING - rocker arm, with F8660 bushing

1шт.

1/8" str. Lincoln fitting #5000

2шт.

1/2" x 1-1/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F77276

ARM - R.H., front rocker, with 1-F8660 and 1-F8662 bushing

1шт.

1/8" str. Lincoln fitting #5000

1шт.

F77277

ARM - L.H. front rocker, with 1-F8660 and 1-F8662 bushing

1шт.

1/8" str. Lincoln fitting #5000

1шт.

F77349

SHIELD - chain

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F78412

SPROCKET (40T - stand pitch) drives shoe, strawwalker and tailings elevator (after no. 8160601) replaces F76894 when those stocks are exhausted

1шт.

N3382

BALL BEARING

BEARING (Fafnir #RA-103PPB w/N3384) jackshaft

2шт.

N3384

COLLAR CLAMP

COLLAR - for N3382 bearing

2шт.

07285A

BEARING (N.D. #3205) pitman

1шт.

06563AB

SNAP RING - crank pin

2шт.

0578B

WASHER (1-1/4" O.D. x 21/32" I.D. #16 ga.) pivot pin

1шт.

02400B

CAP - pitman bearing

2шт.

5/16" x 5/8" N.F. hex. bolt w/lockwasher

4шт.

0650CB

FLANGE - bearing, for N3382 bearing

4шт.

3/8" x 3/4" carr. bolt w/hex. nut and lockwasher

6шт.

0236CH

WASHER (1-7/8" O.D. x 1-1/32" I.D. #16 ga.) for F9001 shaft

1шт.

09066CH

WASHER (1-11/32" O.D. x 21/32" I.D. x 3/16") pivot pin

2шт.

03702CS

PIN - pitman pivot

2шт.

5/8" - 18 N.F. ESNA elastic stop nut #49NE-108

2шт.

04819CS

LOCKWASHER - wing, for F8980 jackshaft nut (7/8")

2шт.

05029CS

PITMAN - rocker arm

2шт.

1/8" 90deg. Lincoln fitting #5400

2шт.

35FG

COLLAR - for F9001 shaft

2шт.

1/4" x 2" cotter pin

2шт.

02237HT

KEY - pitman crank and drive sprocket

2шт.

Выбрано товаров: 46
