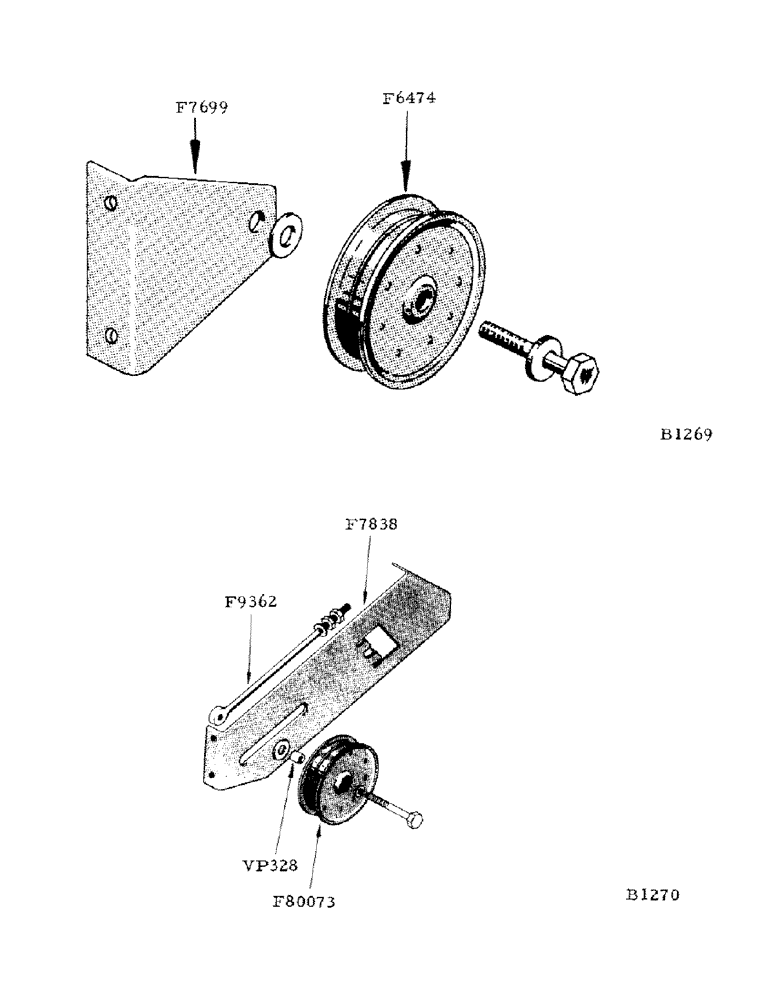

Запчасти Case IH 800 (091) - SHOE DRIVE IDLER (74) - CLEANING

F6474

PULLEY

SHEAVE - shoe drive idler

1шт.

5/8" x 2 1/2" N.F. hex. bolt w/hex, nut, lockwasher and plain washer

1шт.

F7699

BRACKET - idler

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F7865

BELT

Shoe and Grain Auger Drive

1шт.

F7838

BRACKET - tightener, shoe and grain auger drive

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut, lockwasher, tightener, shoe and grain auger drive

4шт.

5/16" plain washer, tightener, shoe and grain auger drive

2шт.

F7865

BELT

Shoe and Grain Auger Drive. Tightener

1шт.

F9362

ROD - adjusting, tightener, shoe and grain auger drive

1шт.

1/2" N.C. hex. nut, tightener, shoe and grain auger drive

2шт.

1/2" plain washer, tightener, shoe and grain auger drive

1шт.

F80073

PULLEY ASSY.

SHEAVE (8" O.D. - flat) tightener, shoe and grain auger drive

1шт.

5/8" x 2 1/2" N.F. hex. bolt and lockwasher, tightener, shoe and grain auger drive

1шт.

5/8" plain washer, tightener, shoe and grain auger drive

2шт.

VP328

SPACER (7/8" O.D. x 25/32" long) for 5/8" x 2 1/2" bolt of F80073 idler, tightener, shoe and grain auger drive

1шт.
