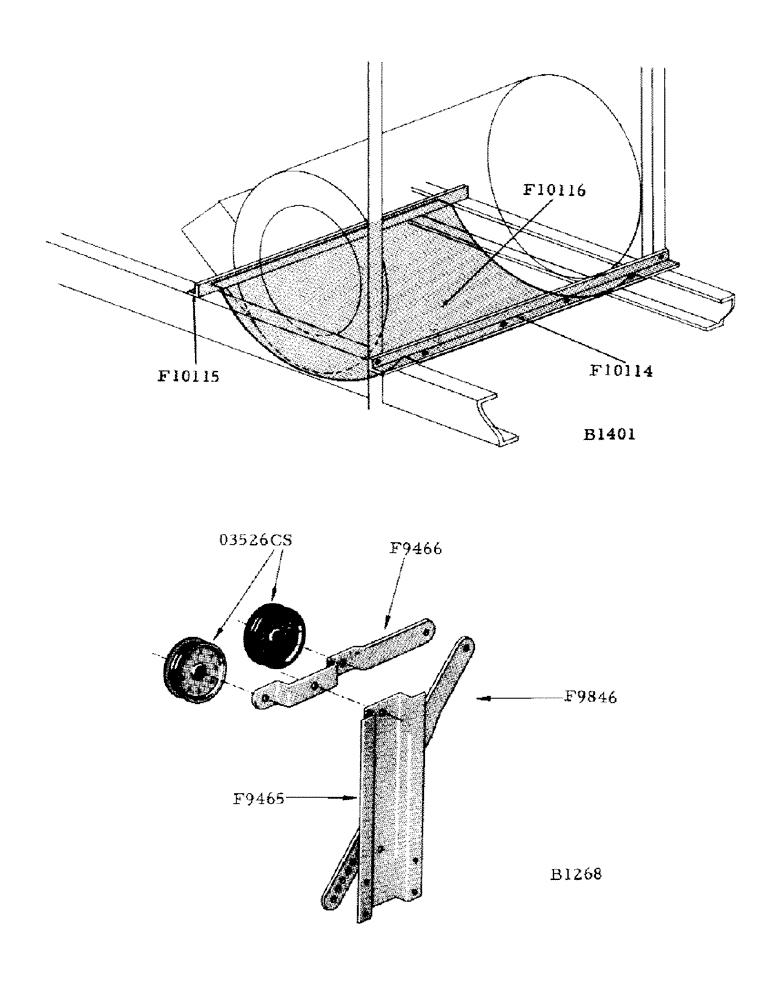

Запчасти Case IH 800 (090) - FAN SHIELD ATTACHMENT (74) - CLEANING

F10114

ANGLE - front support, for shield

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex nut and lockwasher

2шт.

F10115

ANGLE - rear support, for shield

1шт.

3/8" x 1-1/4" N.F. hex bolt w/hex nut and lockwasher

2шт.

F10116

SHIELD - fan wrapper

1шт.

5/16" x 7/8" N.F. hex bolt w/hex nut and lockwasher

8шт.

F9465

BRACKET - idler support, fan drive

1шт.

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher, fan drive idler

4шт.

F9466

ARM - pivot arm, fan drive idler

1шт.

5/8" x 1-1/4" N.F. hex bolt w/hex nut and lockwasher, fan drive idler

1шт.

F9846

STRAP - adjustment, fan drive idler

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex nut and lockwasher, fan drive idler

1шт.

5/16" x 5/8" carr. bolt w/hex nut and lockwasher, fan drive idler

1шт.

03526CS

SHEAVE - idler, fan drive

2шт.

1/2" x 2" N.F. hex bolt w/hex nut and lockwasher, fan drive idler

2шт.
