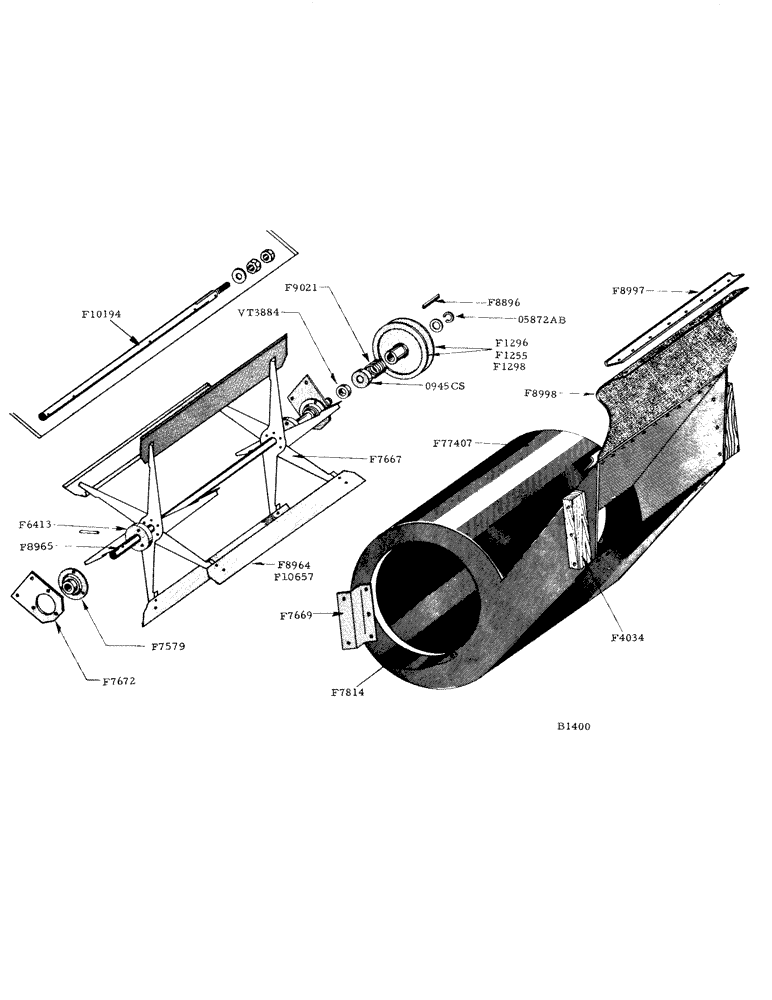

Запчасти Case IH 800 (088) - FAN AND FAN HOUSING (74) - CLEANING

F1255

SHEAVE - fan drive (8-5/8" O.D.) before no. 8179101 (when these stocks are exhausted use F1296 and F1298)

2шт.

F1296

SHEAVE HALF - (8-5/8" O.D.) fan drive (after no. 8179101) replaces F1255 when those stocks are exhausted

1шт.

F1298

SHEAVE HALF (8-5/8" O.D.) fan drive (after no. 8179101) replaces F1255 when those stocks are exhausted

1шт.

F4034

BLOCK - filler, fan

2шт.

1/4" x 2-3/4" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F6413

HUB - fan

2шт.

1/4" x 1-1/8" N.C. sq-hd. cup pt. set screw w/hex. nut

2шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

5/16" x 2" type "A" groove pin

2шт.

F7579

X

BEARING (Aetna #AG1100-P) fan shaft

2шт.

3/16" x 1" cotter pin

2шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

6шт.

F7667

SPOKE - fan

6шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

12шт.

F7669

SUPPORT - front, fan

2шт.

1/4" x 1/2" N.C. mach. screw w/hex. nut and lockwasher

6шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F7672

BRACKET - bearing holder

2шт.

3/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F7814

SCREEN - fan intake

2шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F8896

KEY (1/4" sq. x 3-3/4" long) for fan drive sheave

1шт.

F8964

BLADE - fan

6шт.

1/4" x 1/2" rd. hd. mach. screw w/hex. nut and lockwasher

24шт.

F8965

SHAFT - fan (before no. 8179101) see F10194

1шт.

3/16" x 1-3/4" cotter pin

2шт.

1/8" str. Lincoln fitting #5000

1шт.

F8997

STIFFENER - for F8998 canvas

1шт.

F8998

CANVAS - front of, Serial Range: shoe-fan

1шт.

1/4" x 1/2" N.C. hex. bolt w/hex. nut and lockwasher

4шт.

F9021

VALVE SPRING

SPRING - compression, variable speed fan drive

1шт.

F9468

BELT

Fan Drive

1шт.

F10194

SHAFT - fan (after no. 8179101) replaces F8965

1шт.

3/4" plain washer

1шт.

3/4" jam nut

2шт.

F77407

DRUM - fan

1шт.

05872AB

SNAP RING - for F1255 sheaves (used only with F8965 shaft)

1шт.

VT3884

SPACER (1-1/4" O.D. x 7/16") used with F1255 sheaves only

1шт.

0945CS

WASHER - cup, for 9021 spring

1шт.

F1262

SHEAVE - double (9-3/4" and 5-3/32" O.D.) drives fan (on grain auger shaft) see F1221, slow speed attachment

1шт.

F1263

SHEAVE HALF - fan drive (10-5/16" O.D.) drives fan (on fan shaft), slow speed attachment

2шт.

F1299

SHEAVE - double (11" O.D. and 9-3/4" O.D.) drives grain auger and fan (on grain auger shaft), high speed attachment

1шт.

F10269

BELT

Fan Drive, See F9468, High Speed Attachment

1шт.

F10657

BLADE - fan (cupped), Hi- velocity attachment

6шт.
