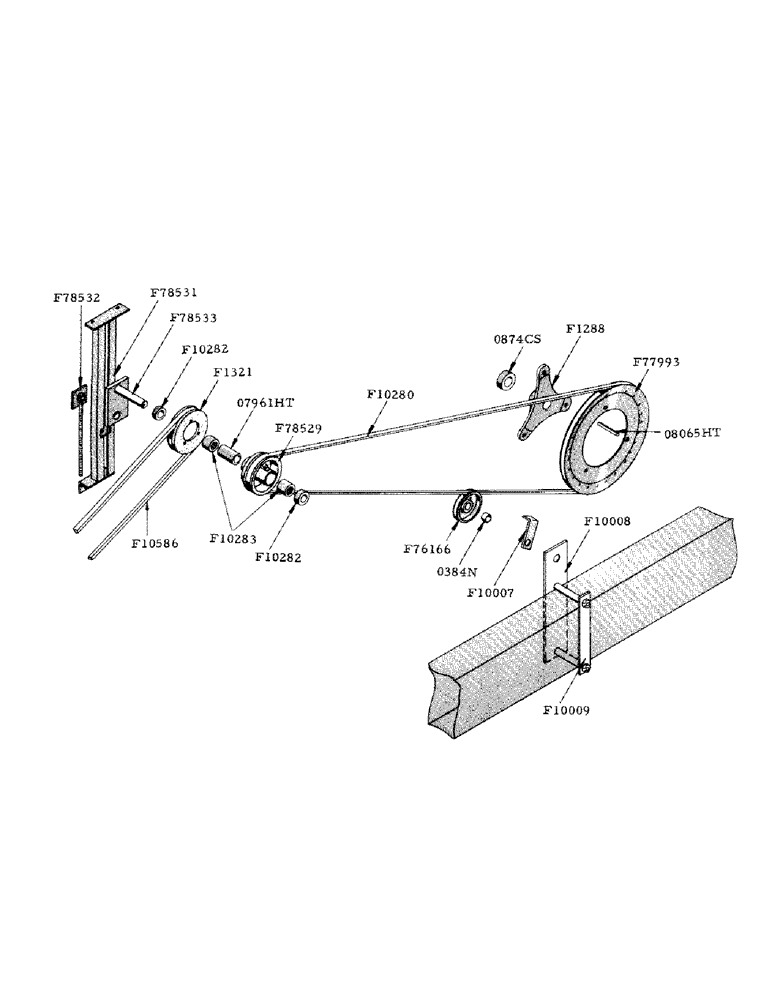

Запчасти Case IH 800 (129) - CUTTER AND SPREADER DRIVE (73) - RESIDUE HANDLING

F1288

HUB - drive, for F77993 sheave when machines is equipped w/chain cylinder drive.

1шт.

3/8" x 1" N.C. hex. bolt w/hex. nut, lockwasher and plain washer

3шт.

F1321

SHEAVE (8" O.D.) cast, idler

1шт.

5/16" x 1" hex. hd. bolt w/hex. nut and lockwasher

3шт.

F10007

BRACKET - belt guide

1шт.

F10008

ARM - for belt guide sheave

1шт.

3/8" x 6" N.C. hex. bolt w/hex. nut and lockwasher

2шт.

F10009

STRAP - belt guide arm

1шт.

F10280

BELT

"V" BELT - cutter and spreader drive, front

1шт.

F10282

COLLAR - set, for face plate

2шт.

3/8" x 3/8" set screw

2шт.

F10283

BEARING (Torrington needle #BR-1616) for F78529 sheave

2шт.

F10586

"V" BELT - cutter and spreader drive, rear

1шт.

F76166

SHEAVE - idler (6-3/4" O.D.) w/self contained bearing

1шт.

5/8" x 2-1/2" N.C. hex. bolt w/hex. nut, lockwasher, plain washer

1шт.

F77993

SHEAVE - cutter drive (20" O.D.)

1шт.

3/8" x 1" N.C. hex. bolt w/hex. nut, lockwasher plain washer

3шт.

F78529

PULLEY - intermediate idler (includes 1-07961HT spacer and 2-F10283 bearings)

1шт.

F78531

BRACKET - idler

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F78532

SCREW - idler adjusting (18")

1шт.

1/2" Hes. nut and plain washer

2шт.

F78533

PLATE - face, w/shaft, idler adjusting

1шт.

3/4" x 2" N.C. hex. hd. bolt and plain washer

1шт.

0874CS

SPACER - (1-1/2" pipe - 1/2" long) for F1288 hub

1шт.

07961HT

SPACER (1" pipe - 2" long) for F78529 sheave

1шт.

08065HT

KEY - straight (3/8" sq. x 1-7/16") for F1288 hub

1шт.

0384N

SPACER - for idler pulley F76166

1шт.
