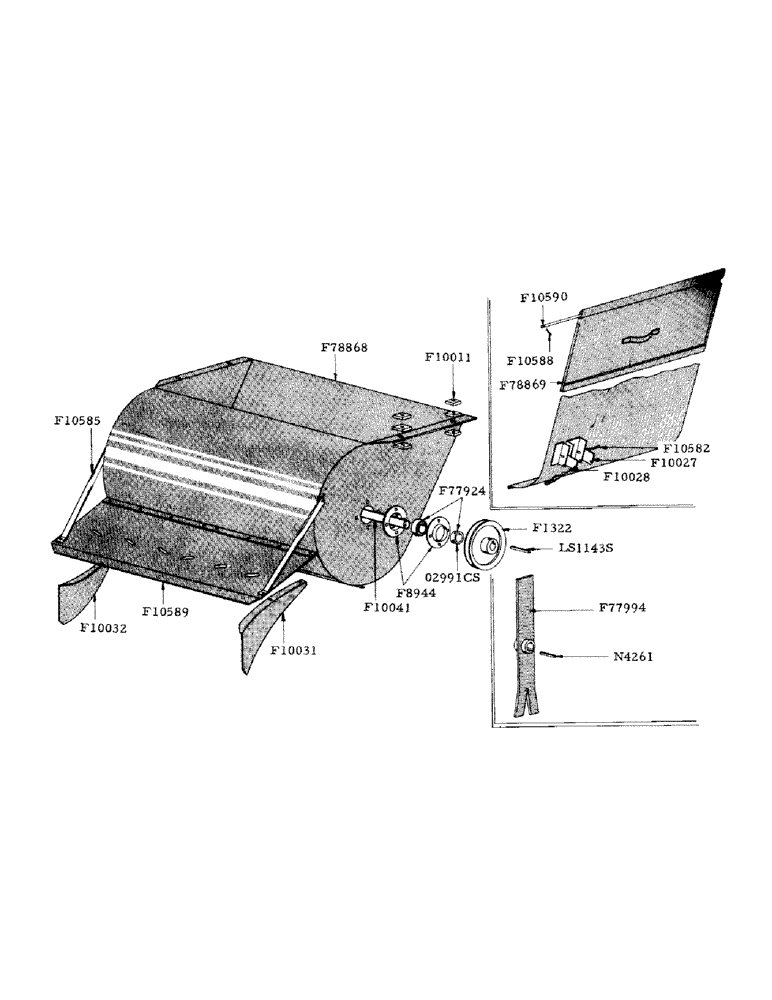

Запчасти Case IH 800 (128) - CUTTER AND SPREADER HOUSING (73) - RESIDUE HANDLING

F1322

SHEAVE - cutter drive, driven (7" O.D.) on cutter shaft

1шт.

3/8" x 3/8" set screw

2шт.

F8944

FLANGE

- for F77924 bearing

4шт.

1/2" x 1-5/8" N.C. hex. bolt w/hex. nut and lockwasher

8шт.

F10011

BUMPERS - rubber vibration

12шт.

3/8" x 2-1/4" N.C. hex. bolt (cadmium plated)

4шт.

3/8" hex. lock nut and plain washer

8шт.

F10027

KNIFE - retractable

9шт.

3/4" x 5/32" cotter pin

9шт.

F10028

SPRING - retractable knife

9шт.

F10031

WING - deflector, R.H.

3шт.

1/4" x 1/2" N.C. truss hd. mach. screw

6шт.

1/4" hex. nut

3шт.

1/4" wing nut

3шт.

F10032

WING - deflector, L.H.

3шт.

1/4" x 1/2" N.C. truss hd. mach. screw

6шт.

1/4" hex. nut

3шт.

1/4" wing nut

3шт.

F10041

SHAFT - cutter

1шт.

F10582

COTTER PIN - for F10027 knives (1/4" x 1-1/4")

9шт.

F10585

BRACE - for F10589 shield (twisted)

2шт.

F10588

COTTER - hair pin, for F10590 rod

2шт.

F10589

SHIELD - deflector

1шт.

F10590

ROD - for F78869 door

1шт.

5/16" plain washer

2шт.

F77924

BEARING

(Fafnir #1108KRRB w/02991CS) cutter shaft

2шт.

F77994

KNIFE - rotating (split)

10шт.

F78868

HOUSING - cutter

1шт.

F78869

DOOR - access

1шт.

N4261

KEY - straight, for rotating knives

10шт.

02991CS

COLLAR - for F77924 bearing

2шт.

LS1143S

X

KEY (1/4" sq x 2") for F1322 sheave

1шт.
