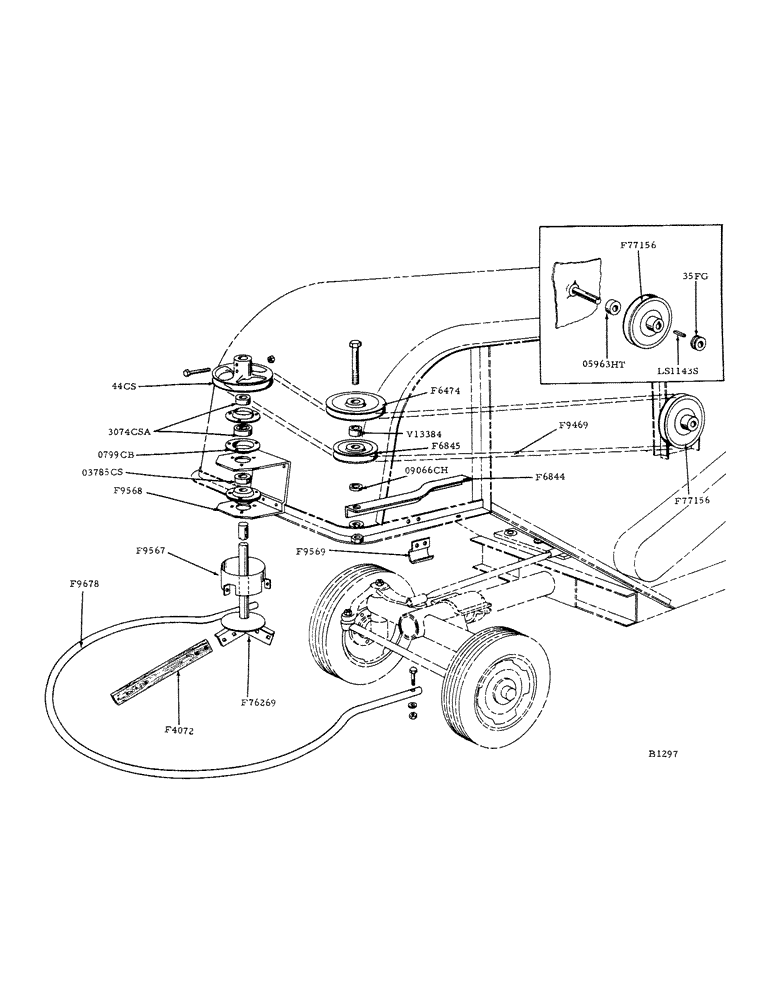

Запчасти Case IH 800 (126) - STRAWSPREADER ATTACHMENT (73) - RESIDUE HANDLING

F4072

PADDLES

3шт.

5/16" x 1-3/4" N.C. rd. hd. sq. neck bolt w/hex, nut and lockwasher

6шт.

F6474

PULLEY

SHEAVE - shoe drive idler

1шт.

5/8" x 2-1/2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

1шт.

F6844

ANGLE - idler support

1шт.

3/8" x 1" N.C. rd. hd. bolt w/hex. nut and lockwasher

2шт.

F6845

SHEAVE

(4-3/8" O.D.) lower idler

1шт.

F9567

SHIELD - straw spreader paddles

1шт.

F9568

BRACKET - spreader mounting

1шт.

5/16" x 3/4" N.C. rd. hd. sq. neck bolt w/hex. nut and lockwasher

6шт.

F9569

CLAMP - guard

2шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F9678

GUARD - spreader paddles

1шт.

3/8" x 1-3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9679

"V" BELT - spreader drive

1шт.

F76269

SHAFT - spreader, with paddle supports and reinforcement

1шт.

F77156

SHEAVE - on rear straw walker crankshaft, drives spreader

1шт.

0799CB

FLANGE - for 3074CSA bearing

4шт.

5/16" x 7/8" N.C. rd. hd. sq. neck bolt w/hex. nut and lockwasher

6шт.

09066CH

WASHER (21/32") I.D. x 1-11/32" O.D. x 3/16") between F6844 support and F6845 idler

1шт.

44CS

PULLEY - spreader shaft, driven

1шт.

5/16" x 2-1/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

03785CS

COLLAR - for 3074CSA bearing

2шт.

3074CSA

BALL BEARING

(Fafnir #RA100PPB w/03785CS collar) for F76269 shaft

2шт.

35FG

COLLAR - locks F77156 sheave on rear straw walker drive shaft

1шт.

1/4" x 1-3/4" cotter pin

1шт.

05963HT

SPACER - for F77156 sheave

1шт.

LS1143S

X

KEY (1/4" x 1/4" x 2" long) for F77156 sheave

1шт.

V13384

SPACER - between upper and lower idler sheaves

1шт.
