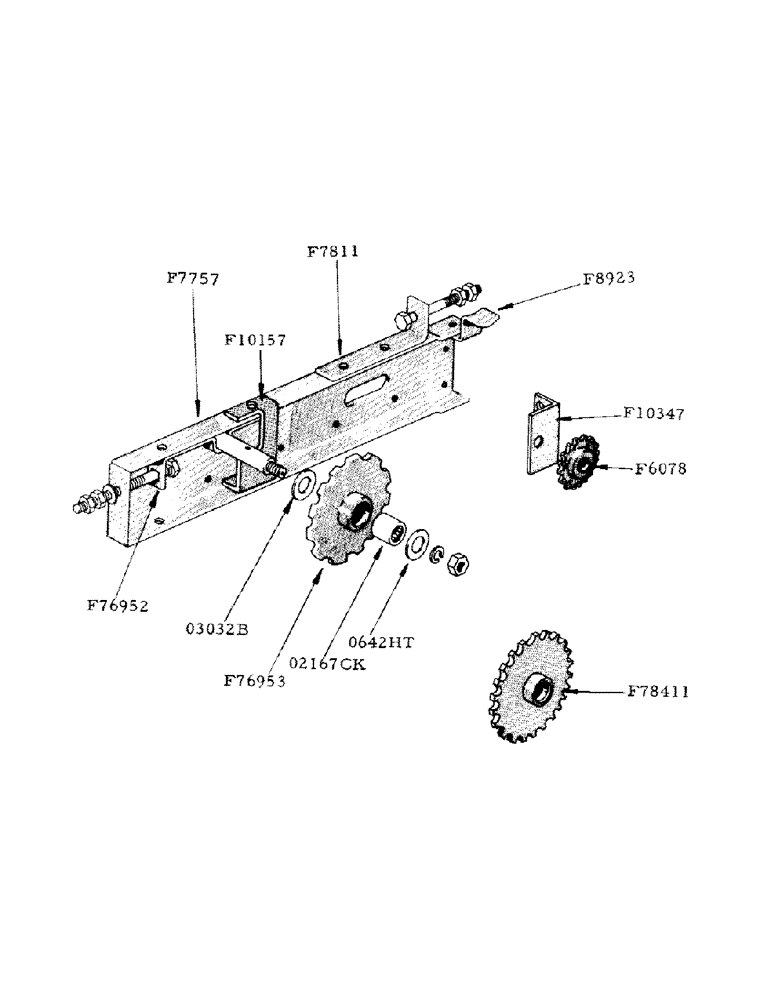

Запчасти Case IH 800 (079) - STRAWWALKER AND TAILINGS DRIVE TIGHTNER, CONVEYOR RAKE DRIVE (72) - SEPARATION

F6078

SPROCKET ASSY.

SPROCKET - tightener (before no. 8160601) also used on bean and rice specials

1шт.

5/8" x 2-1/2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/8" plain washer

4шт.

F7757

BRACKET - tightener - conveyor rake rear shaft, L.H.

1шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

2шт.

1/2" x 4" carr. bolt (3-3/8" min. thrd.) w/hex. nut and lockwasher

1шт.

F7811

BRACKET - lock strap, conveyor rake tightener

2шт.

3/8" x 3" N.C. hex. bolt w/hex. nut

1шт.

F7870

CHAIN - drives conveyor rake, strawwalker and tailings auger (use 2-B12517 chain, 2-B12520 chain, 1-B12521 conn. link, B-12522 offset link and 1-B12523 roller link #CA2050) Before no. 8160601 (see F10449)

1шт.

F8923

GUIDE - chain

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F10157

REINFORCEMENT - conveyor rake tightener bracket

1шт.

1/4" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F10184

CHAIN - drives conveyor rake, strawwalker and tailings auger (use 4-B12474 chain, 1-B12475 chain, and 1-B12476 chain #50 roller) grain machines after no. 8160601 (see F10310)

1шт.

F10310

X

CHAIN - drives conveyor rake, strawwalker and tailings auger (use 5-B12474 chain, 1-B12476 chain, 1-B12505 conn. link, 1-B12506 offset link and 1-B12507 roller link #50 roller chain) after no. 8160601, bean and rice specials (see F7870 and F10184)

1шт.

F10347

BRACKET

- idler (before no. 8160601 grain machines) standard on bean and rice machines

1шт.

5/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F10449

CHAIN - extension, for F7870 chain when F6078 sprocket is used (use 2-B12520 chain, 1-B12521 conn. link, 1-B12522 offset link and 3-B12523 roller link #CA2050 roller chain)

1шт.

F76952

SHAFT - (4-3/4" long) tightener

1шт.

1/8" x 90deg. Lincoln fitting #5400

1шт.

3/4" N.F. hex. nut and lockwasher

1шт.

3/8" x 3" N.C. hex. bolt w/hex. nut

1шт.

F76953

SPROCKET (18T ext. pitch) tightener, w/02167CK bearing (standard before no. 8160601) when these stocks are exhausted use F78411

1шт.

F78411

SPROCKET ASSY.

SPROCKET (36T - standard pitch) tightener w/02167 CK bearing (standard after no. 8160601) will replace F76953 when those stocks are exhausted

1шт.

3032B

ELEC CONNECTOR

WASHER (15/8" O.D. x 1/32" I.D. #16 ga.) tightener shaft

1шт.

02167CK

BEARING (Torrington #BL--1628-OH) tightener sprocket

1шт.

0642HT

WASHER (1 9/16" O.D. x 25/32" I.D. #16 ga.) tightener shaft

1шт.
