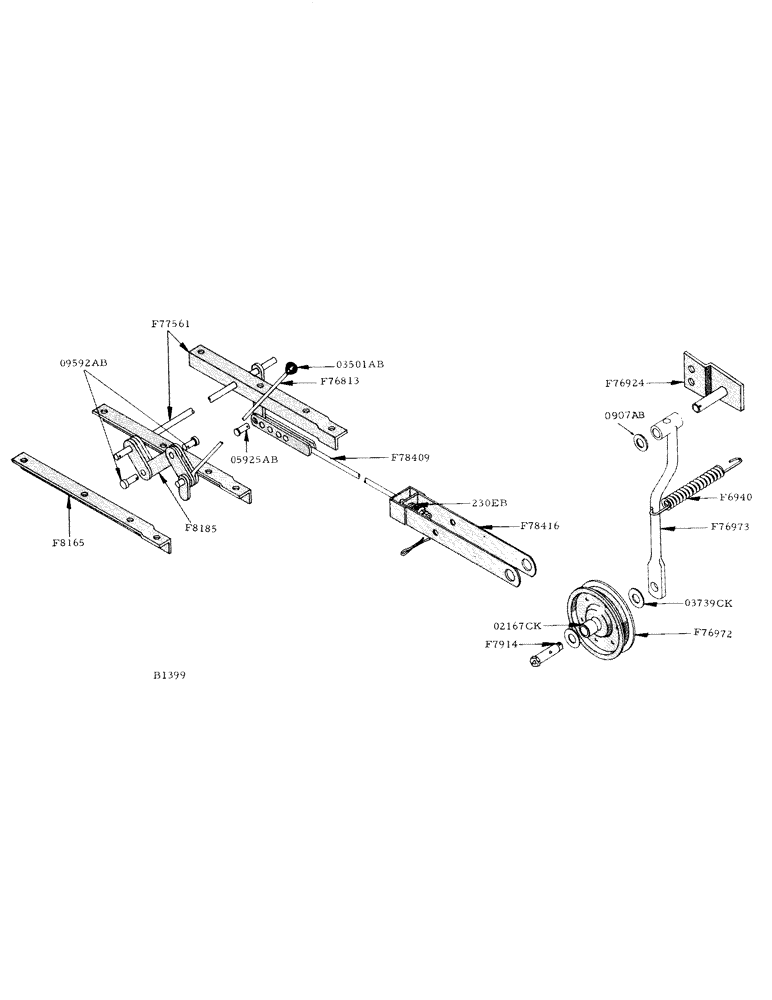

Запчасти Case IH 800 (074) - MAIN COMBINE DRIVE IDLER ASSEMBLY (72) - SEPARATION

F6940

SPRING - disengagement

1шт.

F7914

BOLT - shoulder

1шт.

1/8" str. Lincoln fitting #5000

1шт.

5/8" - 18 N.F. ESNA stop nut #49NTE-108 (use CT2729S)

1шт.

F8165

ANGLE - L.H. control lever support

1шт.

1/4" x 5/8" carr. bolt w/hex. nut and lockwasher

2шт.

F8185

LINK - control, combine drive

1шт.

F76813

LEVER - control, combine drive

1шт.

F76924

PIVOT - bracket, for F76973 tightener arm

1шт.

5/16" x 7/8" rd. hd. rivet

1шт.

5/16" x 1" rd. hd. rivet

1шт.

F76972

SHEAVE (10-3/4" O.D.) idler

1шт.

F76973

ARM - tightener

1шт.

1/4" - 28 Lincoln fitting #5042

1шт.

F77561

SHAFT - control, combine drive

1шт.

1/4" x 5/8" carr. bolt w/hex. nut and lockwasher

3шт.

F78409

CONTROL ROD - belt tightener

1шт.

3/8" plain washer

2шт.

F78416

CONTROL STRAP - belt tightener rod

1шт.

1/4" x 3" cotter pin

1шт.

0907AB

WASHER (3/4" flat)

1шт.

03501AB

KNOB - control lever

1шт.

05925AB

PIN - for F78409 control rod

1шт.

3/32" x 3/4" cotter pin

1шт.

09592AB

PIN - for F8185 control lever link

2шт.

3/32" x 3/4" cotter pin

2шт.

02167CK

BEARING (Torrington #BL-1628-OH) idler sheave

1шт.

03739CK

WASHER (1-7/8" O.D. x 1-3/32" I.D. #16 ga.) for F7914 bolt

2шт.

230EB

SPRING - for tightener rod

1шт.

CT2729S

NUT - (ESNA #49NTE-108) stop, for F7914 shoulder bolt

1шт.
