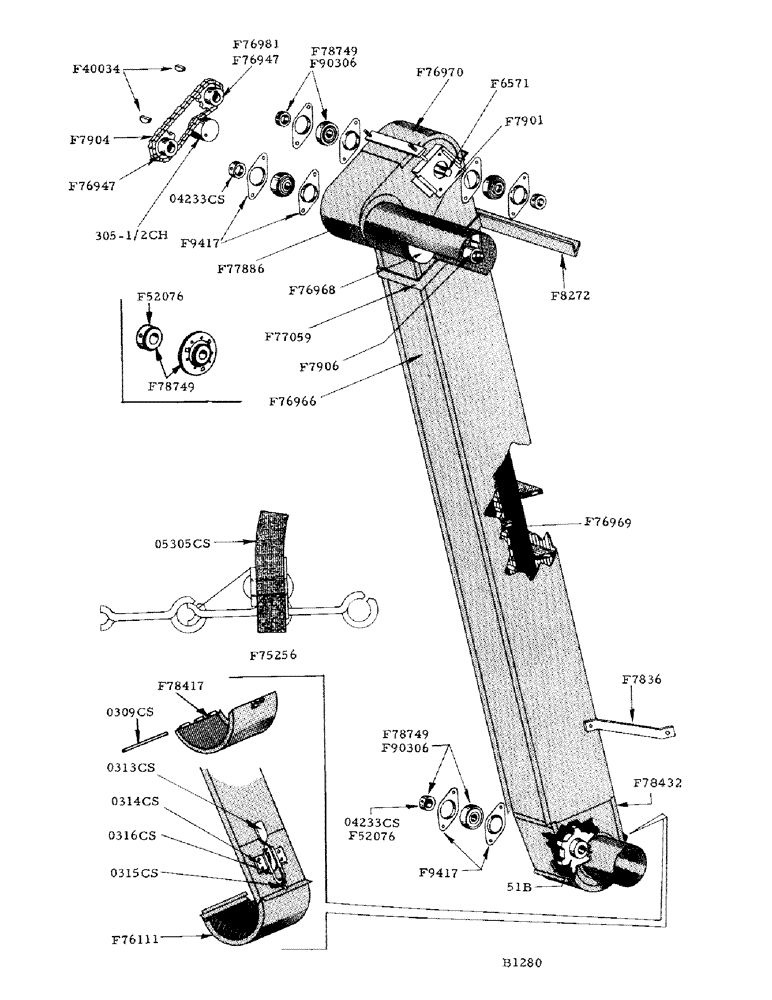

Запчасти Case IH 800 (104) - TAILINGS ELEVATOR (66) - THRESHING

F6571

SHAFT - upper elevator, discharge auger drive

1шт.

F7761

DEFLECTOR - grain (bolts inside combine body behind F7836 support) not shown

1шт.

F7836

SUPPORT - lower, tailings elevator

1шт.

1/4" x 3/4" carr. bolt w/hex. nut and lockwasher

1шт.

F7901

HOLDER - bearing

2шт.

5/16" x 4-1/4" N.C. sq. hd. mach. bolt w/double hex. nut

2шт.

F8272

ANGLE - elevator support

1шт.

1/4" x 1/2" N.C. hex. bolt w/lockwasher

2шт.

5/16" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9417

FLANGE

- for F90306 bearing

6шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

6шт.

F40034

KEY

("A" WOODRUFF) 51B, F76947 and F76981 sprockets

3шт.

F52076

COLLAR

- for F78749 bearing

3шт.

F75256

FLIGHT - elevator chain (includes 2-#55 steel links and 1-05305CS flight fastened to #55SD attach. link)

40шт.

F76111

COVER - lower head (before no. 8179101) see F78417

1шт.

F76947

SPROCKET (15T) discharge auger drive (before no. 8179751) see F76981

1шт.

3/16" x 2" cotter pin

1шт.

F76966

BODY - elevator, with heads

1шт.

1/4" x 3/4" carr. bolt w/hex. nut and lockwasher

1шт.

F76969

CHAIN AND FLIGHTS (includes 40-F75256 flights, 40-#55 steel link and 1-#55 coupler link)

1шт.

F76970

COVER - upper head

1шт.

5/16" x 4-1/4" N.C. sq. hd. bolt w/dbl. hex. nut

2шт.

F76981

SPROCKET - (22T) discharge auger drive (on upper shaft) after no. 8179751 (see F76947)

1шт.

3/16" x 2" cotter pin

1шт.

F77059

SCREW

SUPPORT - upper, for tailings elevator ("U" shaped)

1шт.

1/4" x 1/2" N.C. hex. bolt and lockwasher

2шт.

F77886

HEAD - upper, elevator body

1шт.

F78432

HEAD - lower, elevator body (includes F78417 & 0309CS)

1шт.

F78417

COVER - lower head (after no. 8179101) see F76111

1шт.

F78749

COLLAR

BEARING AND FLANGE (Aetna #AG-1014-4 w/F52076 collar) upper and lower shafts (after no. 8179751) see F90306

3шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-014PPB w/04233CS collar) upper and lower shafts (before no. 8179751) see F90306

3шт.

51B

SPROCKET ASSY.

SPROCKET (7T) upper and lower tailings elevator shafts

2шт.

3/16" x 2" cotter pin

2шт.

0309CS

PIN - hinge, for F78417 door

1шт.

0313CS

HANDLE - latch, lower head cover

1шт.

3/16" x 5/8" rd. hd. rivet

1шт.

0314CS

BRACKET - for latch handle 0313CS

2шт.

3/16" x 3/8" W.B. hd. rivet

4шт.

0315CS

HOOD - latch, lower head cover

1шт.

0316CS

SPRING - latch handle

1шт.

04233CS

COLLAR - for F90306 bearing

3шт.

05305CS

FLIGHT - rubber (see F75256)

40шт.

7/32" x 12/16" semi-tubular steel rivet #60015

80шт.

B12515

LINK

- offset, #CA2040 roller chain, tailings discharge auger

1шт.

F7904

X

CHAIN - discharge auger drive (use 1-B12487 chain, 3-B12488 chain, and 1-B12515 offset link #CA2040 roller chain) see chain page, tailings

1шт.

F7906

SUPPORT - discharge auger (inner), tailings

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher, tailings discharge auger

2шт.

F9417

FLANGE

- for F90306 bearing, tailings discharge auger

2шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher, tailings, discharge auger

2шт.

F40034

KEY

("A" Woodruff) for F76947 sprocket, tailings, discharge auger

1шт.

F52076

COLLAR

- for F78749 bearing, tailings, discharge auger

1шт.

F76947

SPROCKET (15T) discharge auger drive, driven, tailings

1шт.

3/16" x 2" cotter pin, tailings, discharge auger

1шт.

F76968

AUGER - tailings discharge

1шт.

F78749

COLLAR

BEARING AND FLANGE (Aetna #AG-1014-4 w/F52076 collar) discharge auger R.H. end (after no. 8179751) see F90306, tailings

1шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-014PPB w/04233CS collar) discharge auger R.H. end (before no. 8179751) see F78749, tailings

1шт.

305-1/2CH

IDLER - discharge auger drive (wood block), tailings

1шт.

3/8" x 3" carr. bolt w/hex. nut, lockwasher and plain washer, tailings, discharge auger

1шт.

04233CS

COLLAR - for F90306 bearing, tailings, discharge auger

1шт.
