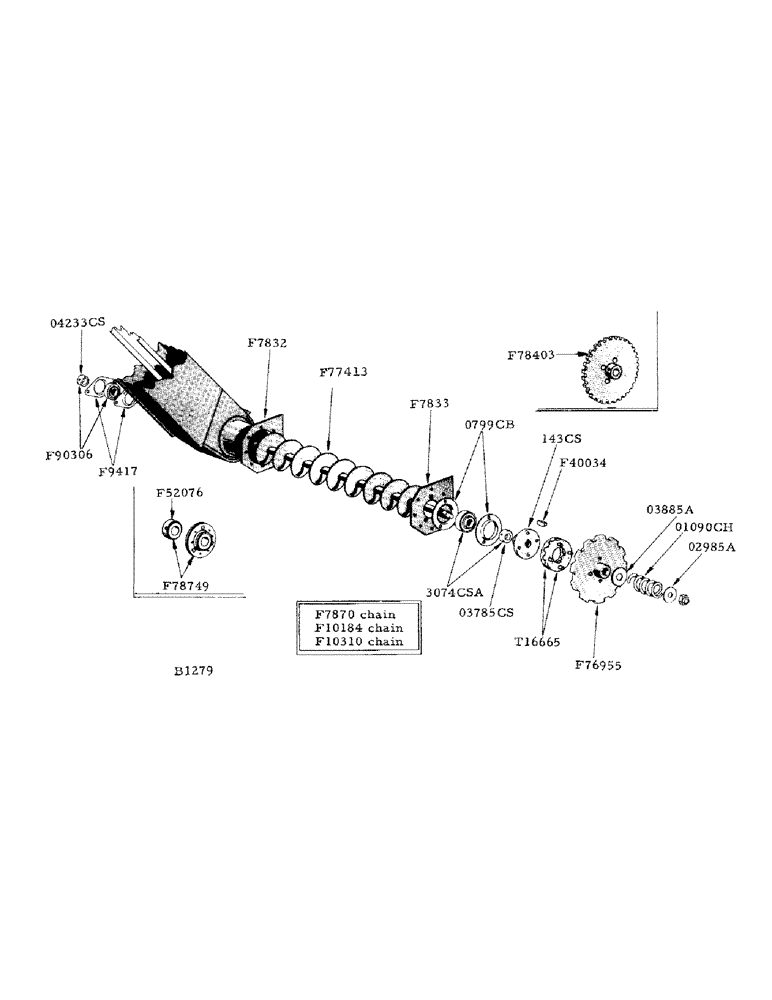

Запчасти Case IH 800 (103) - TAILINGS AUGER (66) - THRESHING

F7832

FLANGE - tailings auger, R.H. side

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

3шт.

F7833

SUPPORT - tailings auger bearing, L.H.

1шт.

1/4" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

3шт.

F8986

TROUGH - trailings auger (not shown) see grain floor

1шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut and lockwasher and plain washer

6шт.

F9417

FLANGE

- for F90306 bearing

2шт.

5/16" x 1/2" carr. bolt w/hex. nut and lockwasher

4шт.

F40034

KEY

("A" WOODRUFF) for 51B sprocket and 143CS hub

2шт.

F52076

COLLAR

- for F78749 bearing

1шт.

F76955

SPROCKET (20T ext. pitch) tailings auger drive (before no. 8160601) use F78403 when these stocks are exhausted

1шт.

F77413

AUGER - tailings

1шт.

F78403

SPROCKET (40T stand. pitch) tailings auger drive (after no. 8160601) replaces F76955 on earlier machines

1шт.

F78749

COLLAR

BEARING (Aetna #AG-1014-4 w/F52076 collar) auger shaft, R.H. (after no. 8179751) see F90306

1шт.

F90306

BEARING ASSY

BEARING (Fafnir #RA-014PPB w/04233CS collar) auger shaft, R.H. (after no. 8179751) see F78749

1шт.

T16665

RING - clutch (01151CS may be used)

2шт.

02985A

WASHER (1-9/16" O.D. x 25/32" I.D. #12 ga.) jump clutch spring, outer

1шт.

03885A

WASHER (1-9/16" O.D. x 29/32" I.D. #12 ga.) jump clutch spring, inner

1шт.

51B

SPROCKET ASSY.

SPROCKET (7T) elevator drive (not shown) see tailings elevator

1шт.

3/16" x 2" cotter pin

1шт.

0799CB

FLANGE - for 3074CSA bearing

2шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

3шт.

01090CH

SPRING - jump clutch

1шт.

143CS

PLATE

- hub, jump clutch

1шт.

03785CS

COLLAR - for 3074CSA bearing

1шт.

04233CS

COLLAR - for F90306 bearing

1шт.

3074CSA

BALL BEARING

(Fafnir #RA100PPB w/03785CS) auger shaft, L.H.

1шт.

CT2665S

X

NUT - elastic stop (3/4"-16) for F77413 auger

1шт.
