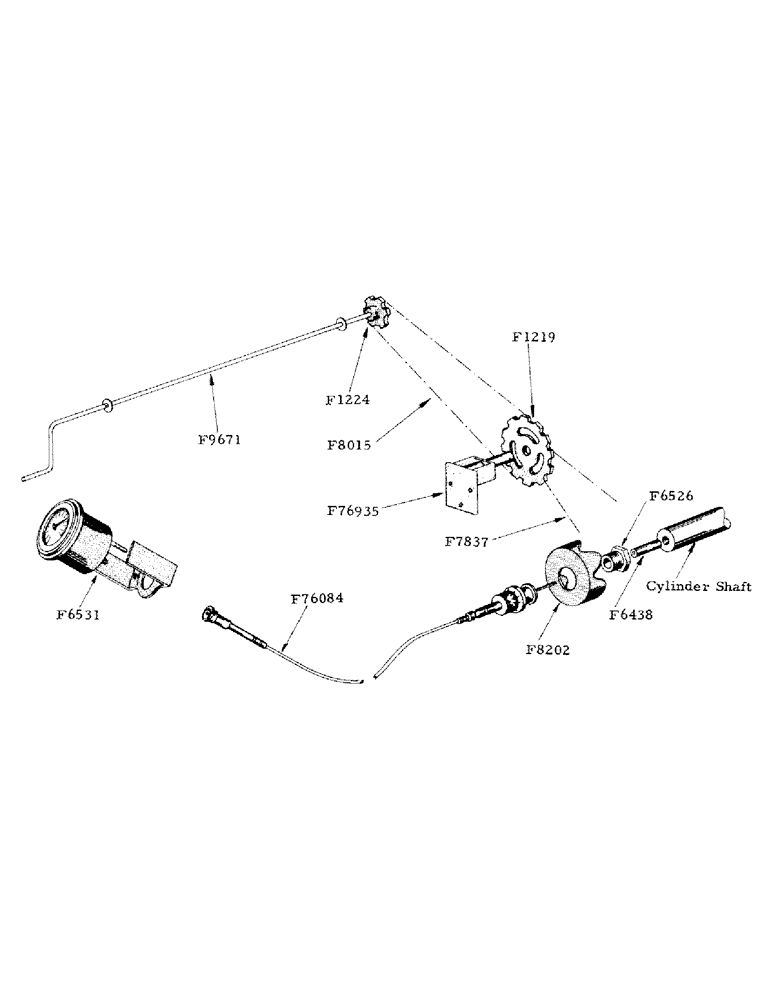

Запчасти Case IH 800 (072) - CYLINDER SPEED CONTROL CRANK ADJUSTMENT (66) - THRESHING

B12514

LINK

- connecting, #A2040 roller chain

1шт.

B12515

LINK

- offset, #A2040 roller chain

1шт.

B12516

LINK

- roller, #A2040 roller chain

1шт.

F1219

SPROCKET (6T and 24T double) rear cylinder speed control

1шт.

1/8" x 1-1/4" cotter pin

1шт.

F1224

SPROCKET (6T) front cylinder speed control

1шт.

3/16" x 1-1/2" cotter pin

1шт.

F7837

CHAIN - lower, cylinder speed control (use 4-B12486 chain and 2-B12488 chain #A2040)

1шт.

F8015

X

CHAIN - upper, cylinder speed control (use 3-B12486 chain, 2-B12488 chain, 2-B12514 conn. link, 1-B12515 offset link and 2-B12516 roller link #A4040)

1шт.

F9671

CRANK - cylinder speed control

1шт.

1/8 x 1" cotter pin

2шт.

1/2" plain washer

2шт.

F76935

SHAFT - cylinder, with support plate

1шт.

1/4" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

3шт.

F6438

BUSHING - connector, for tachometer

1шт.

F6526

NUT - connector, tachometer

1шт.

F6531

TACHOMETER

1шт.

F8202

BRACKET - mounting, tachometer

1шт.

F76084

CABLE - flexible, for tachometer

1шт.
