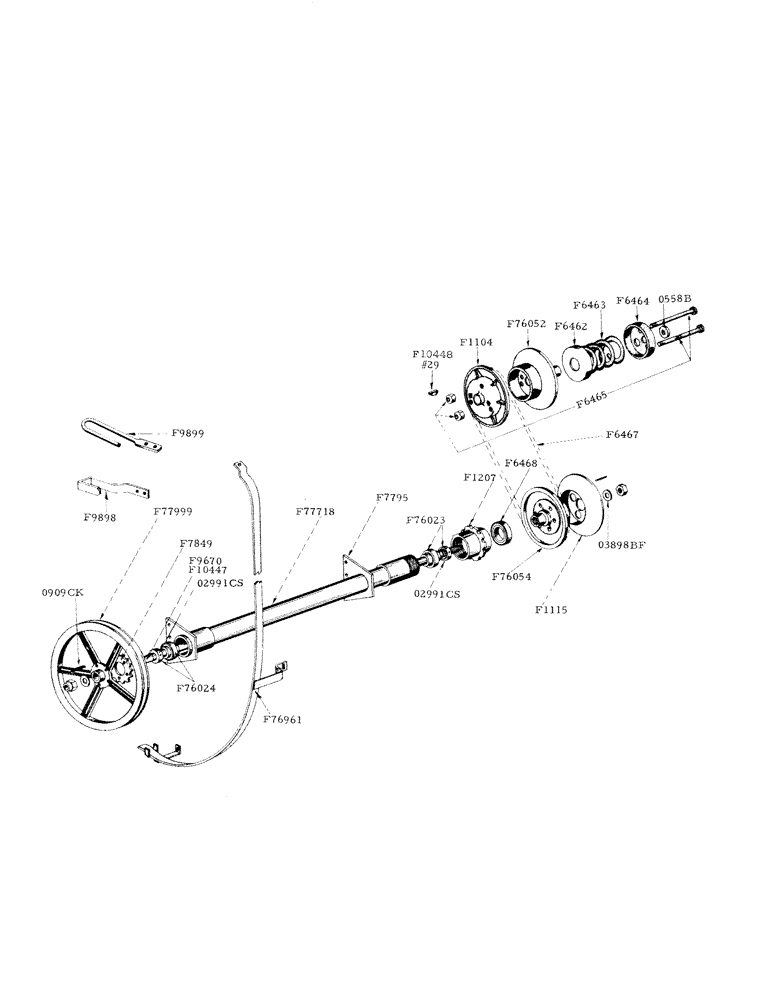

Запчасти Case IH 800 (070) - MAIN COMBINE DRIVE SHAFT AND HOUSING, BELT CYLINDER DRIVE (66) - THRESHING

F1115

SHEAVE HALF - (800RPM - stationery) 14-1/2" O.D., cylinder drive

1шт.

F1207

FITTING

COLLAR - (w/24T sprocket) speed adjusting, for cylinder drive

1шт.

F6468

BEARING (N.D. #97511) for adjusting collar

1шт.

F7795

PLATE - support, R.H. for F77718 housing

1шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

3шт.

F7849

SPROCKET (25T) beater drive

1шт.

3/8" x 2" N.F. hex. bolt w/hex. nut and lockwasher

5шт.

F9109

SPACER (1-1/2" O.D. x 1-5/32" long) for beater drive sprocket (not shown)

1шт.

F9670

SHAFT - main drive (use F10447 when these stocks are exhausted)

1шт.

F9898

GUIDE - main drive belt (F7869)

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9899

ROD - guide; main drive belt (F7869)

1шт.

5/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9935

V-BELT

"V" BELT - main combine drive

1шт.

F10447

SHAFT - main drive (replaces F9670 when those stocks are exhausted)

1шт.

F76023

BEARING (Fafnir #SM1108T w/02991CS collar) for F77718 housing R.H.

1шт.

F76024

BEARING (Fafnir #1108KL w/02991Cs collar) for F77718 housing L.H.

1шт.

F76054

SHEAVE HALF - movable (14-39/64" O.D.) cylinder drive

1шт.

F76961

GUIDE - main drive belt

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut, lockwasher and dbl. plain washer

1шт.

F77718

HOUSING - main drive belt

1шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

3шт.

F77999

SHEAVE (23" O.D.) main combine drive (800RPM)

1шт.

03898BF

WASHER (2" O.D. x 1-5/32" I.D. #16 ga.) for F7797 shaft

1шт.

0909CK

KEY (5/16" sq. x 1-5/8") F1209, Serial Range: sheave-shaft

1шт.

02991CS

COLLAR - for F76023 and F76024 bearings

2шт.

F1104

SHEAVE HALF - stationery (inner) 490RPM to 1280 RPM, variable speed, cylinder drive

1шт.

#29 Woodruff key (for F9590 cylinder shaft), drive, variable speed

1шт.

F6462

COVER - end, for spring, inner, variable speed, cylinder drive

1шт.

F6463

SPRING - tension, cylinder, drive, variable speed

1шт.

F6464

COVER - end, for spring, outer, variable speed, cylinder drive

1шт.

F6465

BOLT - spring guide, variable speed, cylinder drive

2шт.

5/8" N.C. slotted hex. nut w/plain washer, variable speed, cylinder drive

2шт.

1/8" x 1-1/2" cotter pin, variable speed, cylinder drive

2шт.

F6467

V-BELT

"V" BELT - cylinder drive, variable speed

1шт.

F9590

SHAFT - cylinder, spike tooth (use F78711 when these stocks are exhausted), drive, variable speed

1шт.

F9591

SHAFT - cylinder, rub bar (use F78712 when these stocks are exhausted), drive, variable speed

1шт.

F10448

KEY - for F1104 sheave used on F78711 or F78712 shafts, variable speed, cylinder drive

1шт.

F76052

SHEAVE HALF - movable, outer, variable speed, cylinder drive

1шт.

F78711

SHAFT - cylinder, spike tooth (replaces F9590 when those stocks are exhausted), drive, variable speed

1шт.

F78712

SHAFT - cylinder, rub bar (replaces F9591 when those stocks are exhausted), drive, variable speed

1шт.

0558B

WASHER (1-7/8" O.D. x 13/32" I.D. x 3/16") R.H. end of cylinder shaft, drive, variable speed

1шт.
