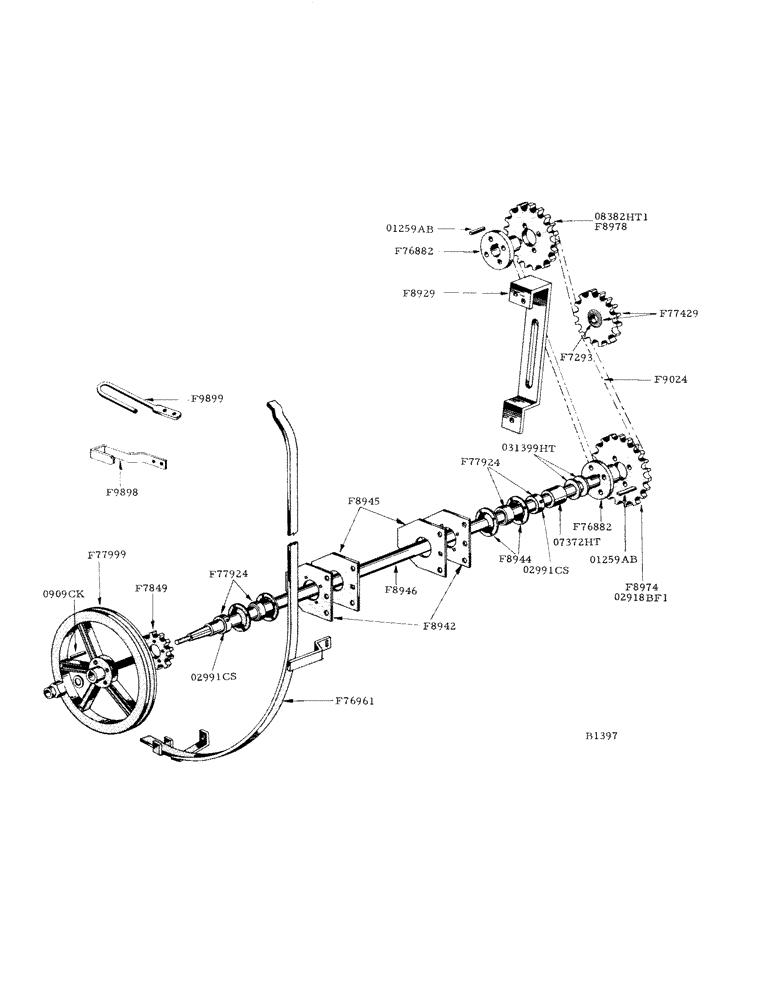

Запчасти Case IH 800 (066) - MAIN COMBINE DRIVE SHAFT, CHAIN CYLINDER DRIVE (66) - THRESHING

F1209

FITTING

SHEAVE (use F77999)

1шт.

F7293

BEARING

(Fafnir #203PPG) for F77429 sprocket

1шт.

F7849

SPROCKET (25T) beater drive

1шт.

3/8" x 2" N.F. hex. bolt w/hex. nut and lockwasher

5шт.

F8929

BRACKET - tightener, cylinder drive

1шт.

5/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/8" x 2-1/2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

1шт.

5/8" plain washer

5шт.

F8942

BRACKET - bearing

2шт.

1/2" x 1-1/4" carr. bolt w/hex. nut and lockwasher

4шт.

F8944

FLANGE

- for F77924 bearing

4шт.

1/2" x 1-1/4" carr. bolt w/hex. nut and lockwasher

4шт.

F8945

PLATE - cover

2шт.

3/8" x 1-1/2" carr. bolt w/hex. nut and lockwasher

4шт.

F8946

SHAFT - main drive (chain cylinder drive)

1шт.

F8974

SPROCKET ASSY.

SPROCKET (24T) cylinder drive (see speed chart)

1шт.

F8978

SPROCKET (33T) cylinder drive (see speed chart)

1шт.

F9024

X

CHAIN - cylinder drive (use 2-B12478 chain, 4-B12481 chain, 4-B12509 conn. link, 1-B12510 offset link, 4-B12511 roller links, #60 roller chain)

1шт.

F9898

GUIDE - main drive belt

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F9899

ROD - guide, main drive belt

1шт.

F9935

V-BELT

"V" BELT - main combine drive

1шт.

F76882

HUB - with flange, for cylinder drive sprockets

2шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F76961

GUIDE - main drive belt

1шт.

3/8" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

3/8" x 1-1/4" N.F. hex. bolt w/hex. nut, lockwasher and dbl. plain washer

1шт.

F77429

SPROCKET (21T) tightener, cylinder drive (includes 1-F7293 bearing)

1шт.

F77924

BEARING

(Fafnir #1108KRRB w/02991CS collar) main drive shaft

2шт.

F77999

SHEAVE (23" O.D.) main combine drive (800 RPM)

1шт.

01259AB

KEY (3/8" sq. x 2" long) for F76882 hub

1шт.

02918BF1

SPROCKET (30T) cylinder drive (see speed chart)

1шт.

0909CK

KEY (5/16" x 5/16" x 1-5/8") for F77999 sheave

1шт.

02991CS

COLLAR - for F77924 bearing

2шт.

07372HT

SPACER (1-1/2" x 15/16") for sprockets

1шт.

08382HT1

SPROCKET (21T) cylinder drive, interchangeable with sprockets on cylinder shaft (see speed chart)

1шт.

031399HT

WASHER (1-17/32" I.D. x 2-1/4" O.D.) spacer

2шт.

T19471

PLOW BOLT

BOLT (3/8" x 1-1/4" #3 plow w/hex. nut) for F8945 cover plate

2шт.

T19480

BOLT

(1/2" x 1-1/4" #3 plow w/hex. nut) for F8944 flange

4шт.

1/2" standard lockwasher

4шт.
