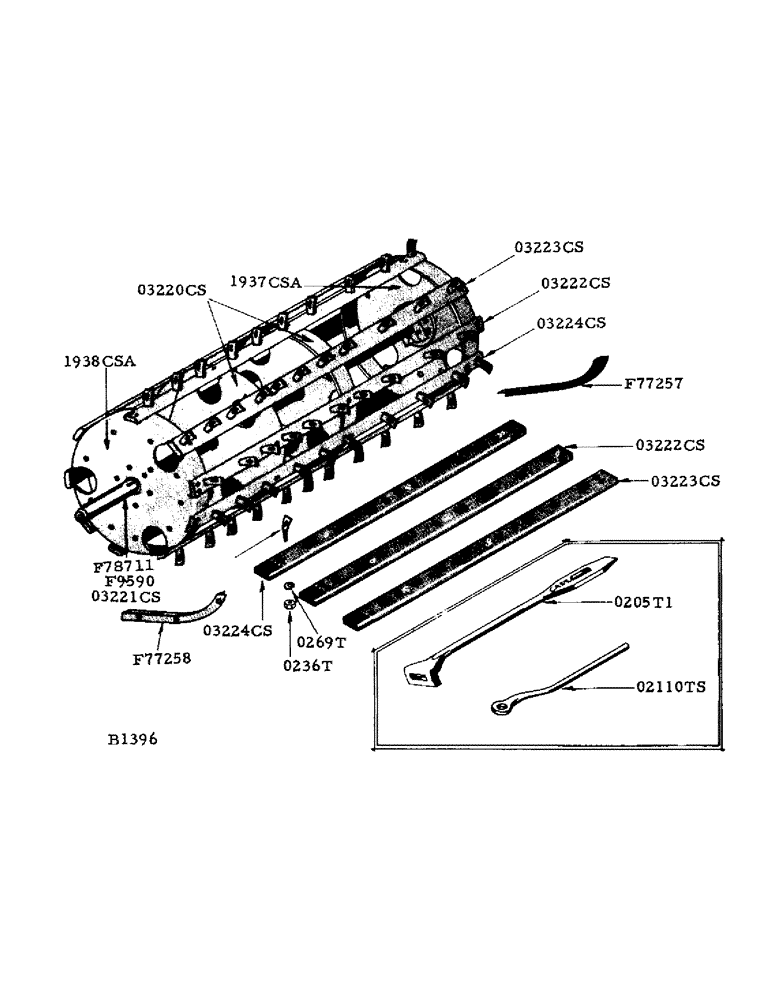

Запчасти Case IH 800 (065) - SPIKE TOOTH CYLINDER (66) - THRESHING

F1205

HOUSING - cylinder bearing

2шт.

1/8" str. Lincoln fitting #5000

2шт.

F8974

SPROCKET ASSY.

SPROCKET - (24T) cylinder drive (see cylinder speed chart)

1шт.

F8978

SPROCKET (33T) cylinder drive (see cylinder speed chart)

1шт.

F9024

X

CHAIN - cylinder drive (use 2-B12478 chain, 4-B12481 chain, 4-B12509 conn. link, 1-B12510 offset link and 4-B12511 roller links #60 roller chain) see chain page

1шт.

F9590

SHAFT - cylinder, V.S. belt cylinder drive (use F78711 when these stocks are exhausted) see 03221CS and F78411

1шт.

F10448

KEY - for F78711 shaft

1шт.

F76882

HUB - with flange, for cylinder drive sprockets

1шт.

3/8" x 3/4" N.C. cup pt. set screw w/hex. jam nut

2шт.

F77257

SHIELD - cylinder, with studs, L.H.

1шт.

1/4" N.C. hex. nut and lockwasher

3шт.

F77258

SHIELD - cylinder, with studs, R.H.

1шт.

1/4" N.C. hex. nut and lockwasher

3шт.

F77721

CYLINDER - spike tooth, less shaft

1шт.

F78711

SHAFT - cylinder, V.S. belt cylinder drive (will replace F9590 when those stocks are exhausted) see F9590 and 03221CS

1шт.

01259AB

KEY (3/8" sq. x 2" long) for F76882 hub

1шт.

02918BF1

SPROCKET (30T) cylinder drive (see cylinder speed chart)

1шт.

6CK

HEAD (use 1937CSA and 1938CSA)

1шт.

02991CS

COLLAR - for 2478CSA bearing

2шт.

03220CS

HEAD - cylinder, center

2шт.

03221CS

SHAFT - cylinder, chain cylinder drive (see F9590 and F78711)

1шт.

#29 Woodruff key

2шт.

03222CS

BAR - cylinder #3, less teeth

3шт.

03223CS

BAR - cylinder #2, less teeth

3шт.

03224CS

BAR - cylinder #1, less teeth

3шт.

03717CS

SEAL - grease, cylinder bearing

2шт.

1937CSA

HEAD - cylinder, outside, L.H.

1шт.

7/16" x 2-3/4" N.C. carr. bolt w/hex. nut and lockwasher

1шт.

1938CSA

HEAD - cylinder, outside, R.H.

1шт.

7/16" x 2-3/4" N.C. carr. bolt w/hex. nut and lockwasher

1шт.

2023CSA

PLATE - retaining, bearing housing, with studs

2шт.

3/8 N.C. hex. nut and lockwasher

10шт.

2478CSA

BEARING (Fafnir #1108KLB w/02991CS collar) cylinder shaft

2шт.

08382HT1

SPROCKET (21T) cylinder drive (see cylinder speed chart)

1шт.

0205T1

STRAIGHTENER - tooth

1шт.

0236T

NUT - for 0385T cylinder tooth

90шт.

0269T

LOCKWASHER - for 0385T cylinder tooth

90шт.

0385T

TOOTH - cylinder

90шт.

01632TS1

WASHER - balance (2-1/4" O.D. x 11/32" I.D. #18 ga.)

1шт.

02110TS

WRENCH - cylinder tooth

1шт.
