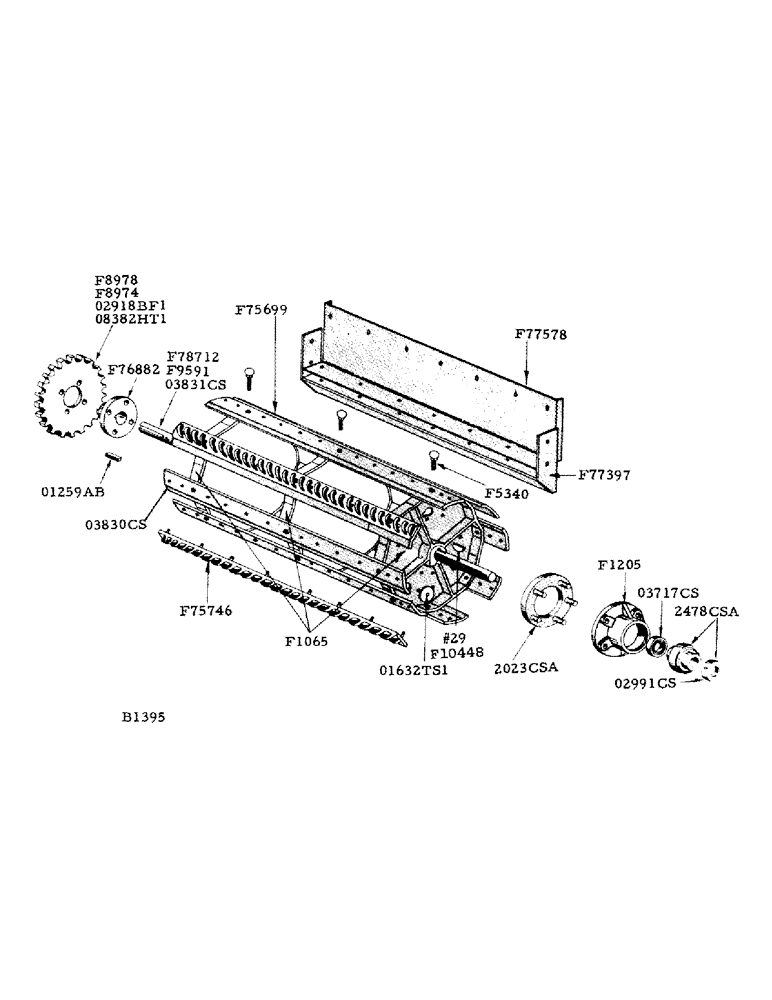

Запчасти Case IH 800 (064) - RUB BAR CYLINDER (66) - THRESHING

F1065

HEAD - cylinder

3шт.

#29 Woodruff key

2шт.

5/16" x 1-1/4" N.C. rd. hd. mach. screw w/lockwasher

2шт.

7/16" x 3" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F1205

HOUSING - cylinder bearing

2шт.

1/8" str. Lincoln fitting

2шт.

F5340

BOLT - rub bar support

24шт.

5/8" N.F. hex. nut and lockwasher

24шт.

F8974

SPROCKET ASSY.

SPROCKET (24T) cylinder drive (see speed chart)

1шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F8978

SPROCKET (33T) cylinder drive (see speed chart)

1шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F9024

X

CHAIN - cylinder drive (use 2-B12478 chain, 4-B12481 chain, 4-B12509 conn. link, 1-B12510 offset link and 4-B12511 roller link #60 roller chian (see chain page)

1шт.

F9591

SHAFT - cylinder, V.S. belt cylinder drive (use F78712 when these stocks are exhausted)

1шт.

F10448

KEY - for F78712 cylinder shaft

1шт.

F75699

CYLINDER - complete, less shaft

1шт.

F75746

SET OF CYLINDER RUB BARS (4 - R.H. and 4 - L.H.) with 64-7/16" N.C. hex. nut and lockwasher

1шт.

F76882

HUB - with flange, for cylinder drive and driven sprockets

1шт.

3/8" x 3/4" N.C. cup pt. set screw w/hex. jam nut

2шт.

F77397

STRIPPER - cylinder

1шт.

F77578

STROUD - stripper

1шт.

1/4" x 1/2" N.F. hex. bolt w/hex. nut and lockwasher

6шт.

F78712

SHAFT - (V.S. belt cylinder drive) includes shaft and 1-F10448 key (will replace F9591 when those stocks are exhausted

1шт.

01259AB

KEY (3/8" sq. x 2") F76882 hub

1шт.

02918BF1

SPROCKET (30T) cylinder drive (see speed chart)

1шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

02991CS

COLLAR - for 2478CSA bearing

2шт.

03717CS

SEAL - grease, cylinder bearing

2шт.

03830CS

SUPPORT - rub bar

8шт.

03831CS

SHAFT - cylinder, chain cylinder drive

1шт.

2023CSA

PLATE - retaining, bearing housing with studs (see rear sides and deck)

2шт.

3/8" N.C. hex. nut

10шт.

2478CSA

BEARING (Fafnir #1108KLB w/02991CS) cylinder shaft

2шт.

08382HT1

SPROCKET (21T) cylinder drive (see speed chart)

1шт.

01632TS1

WASHER - balance (2-1/4" O.D. x 1-1/32" I.D. #18 ga.)

2шт.
